• General

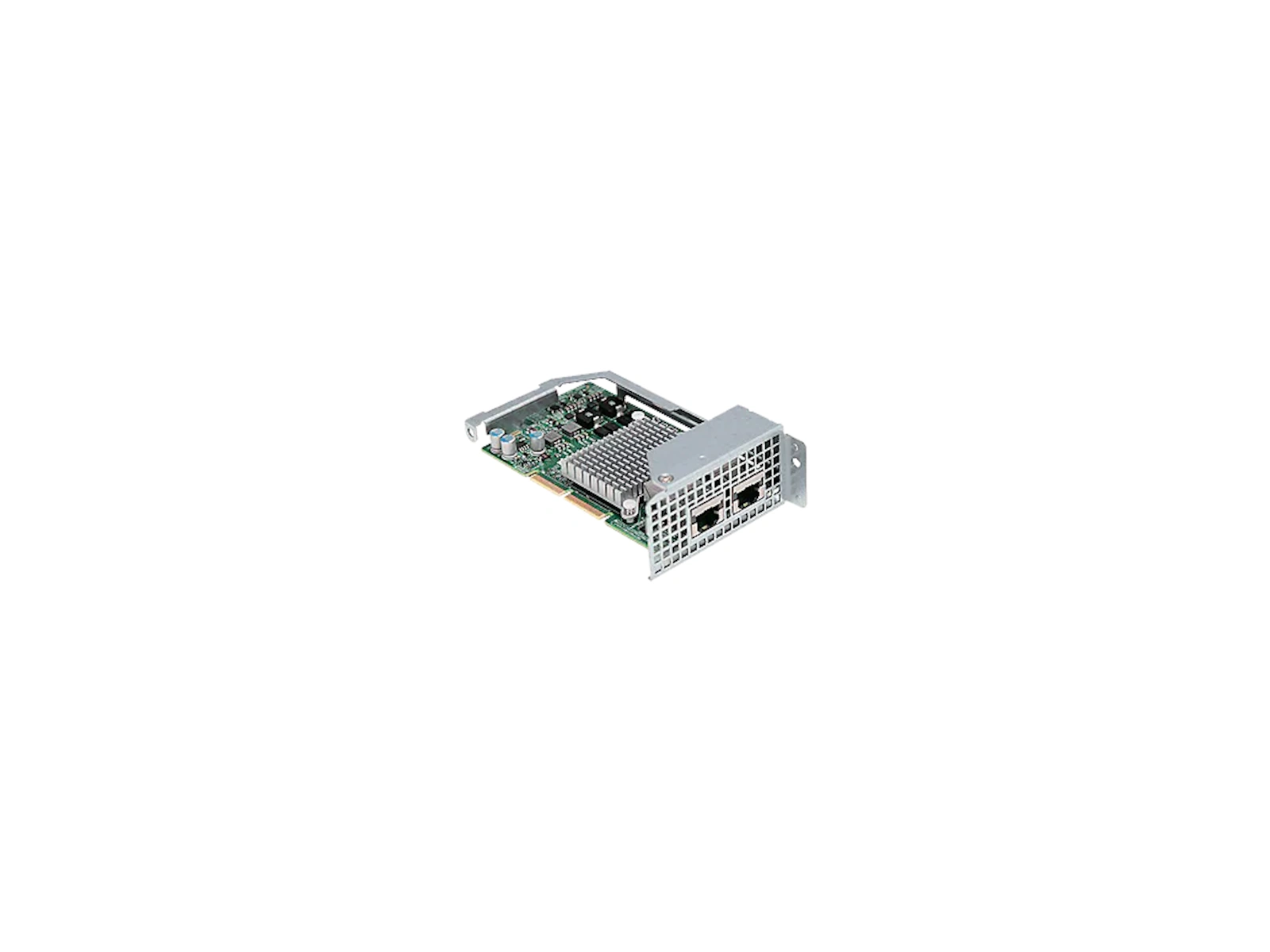

– Intel® X540 10GbE controller with integrated 10GBase-T
copper PHYs
– Compact size 2U MicroLP form factor
– PCI-E x8 2.1 (2.5GT/s or 5GT/s) interface
– Dual RJ-45 connectors with speed up to 10Gb/port
– Load balancing on multiple CPUs
– Intel® PROSet Utility for Windows® Device Manager
– Maximum power consumption: about 13W
• I/O Features
– Intel® QuickData Technology: DMA engine that enhances data
acceleration and lowers CPU usage
– Support jumbo frames of up to 9 KB
– 802.1q VLAN support
– Two integrated independent 10GBase-T interfaces operate at
10GBase-T (10Gb/s) and 1000Base-T (1Gb/s) modes
– Direct Cache Access (DCA) to avoid cache misses
– MSI-X support to minimize interrupt overhead of and
allow load-balancing between multiple cores/CPUs
– Receive and Transmit Side Scaling for Windows environment
and Scalable I/O for Linux environments
• Performance Features
– TCP/UDP Segmentation Offload
– IPv6 Support for IP/TCP and IP/UDP Receive Checksum Offload
– Supports Fibre Channel over Ethernet (FCoE)
– Low latency interrupts
– DCA support
• Virtualization Features
– Support for Virtual Machine Device Queues (VMDq and
Next-generation VMDq)
– L2 Ethernet MAC address and VLAN filters
– PC-SIG SR-IOV implementation
– Advanced Packet Filtering
– VLAN support to allow creation of multiple VLAN segments
– VXLAN through Software
• Manageability Features
– Preboot execution Environment (PXE) support
– Simple Network Management Protocol (SNMP) and
Remote Network Monitoring (RMON) statistics counters
– iSCSI remote boot
• OS Support
– Windows® Server 2012 (x64 edition)
– Windows® 8 (x64 edition and 32-bit)
– Windows® Server 2008 R2 (x64 edition and 64-bit)
– Windows® Server 2008 (x64 edition, 64-bit, and 32-bit)
– Windows® 7 (x64 edition and 32-bit)
– Windows® Vista (x64 edition and 32-bit)
– Windows® Server 2003 (x64 edition, 64-bit, and 32-bit)
– VMWare
– RedHat EL, SuSe SLES
– FreeBSD
• Cables Support
– RJ-45 Category-6 up to 55m; Category-6A up to 100m
• Operating Conditions
– Operating temperature: 0°C to 55°C (32°F to 131°F)
• Physical Dimensions (L x W)
– Card PCB dimensions: 12.3cm (4.8″) x 7.0cm (2.75″) Features
Key Features
• Dual RJ45 Connectors
• 2U MicroLP Form Factor
• PCI Express 2.1 (2.5GT/s or 5GT/s)
• Intel® QuickData Technology
• VMDq, Next-Generation VMDq, and
PC-SIG SR-IOV for Virtualized Environments
• Jumbo Frames Support up to 9 KB
• Load Balancing on Multiple CPUs
• iSCSI Remote Boot Support
• Fibre Channel over Ethernet (FCoE)
• Support the most popular Network Operating Systems (NOSs)
• Support RJ-45 Category-6 or 6A
• RoHS compliant 6/6
