excerpt: Hyper M.2 x16 Gen5 Card (PCIe 5.0/4.0) supports up to four NVMe M.2 (2242/2260/2280/22110) devices at up to 512 Gbps for RAID
wpid: 489068
product_brand:
  - Asus
product_type:
  - simple
product_visibility:
  - featured
product_cat:
  - Add-On Cards
  - Components
featured_image: "https://tech.co.za/wp-content/uploads/2024/04/90MC0CY0-M0EAY0a.jpg"
featured_image_alt: ASUS graphics card isolated on white background.
---

- – 1 x 6-pin PCIe power connector and two-phase power solution with up to 14-watt output to support the latest NVMe drives

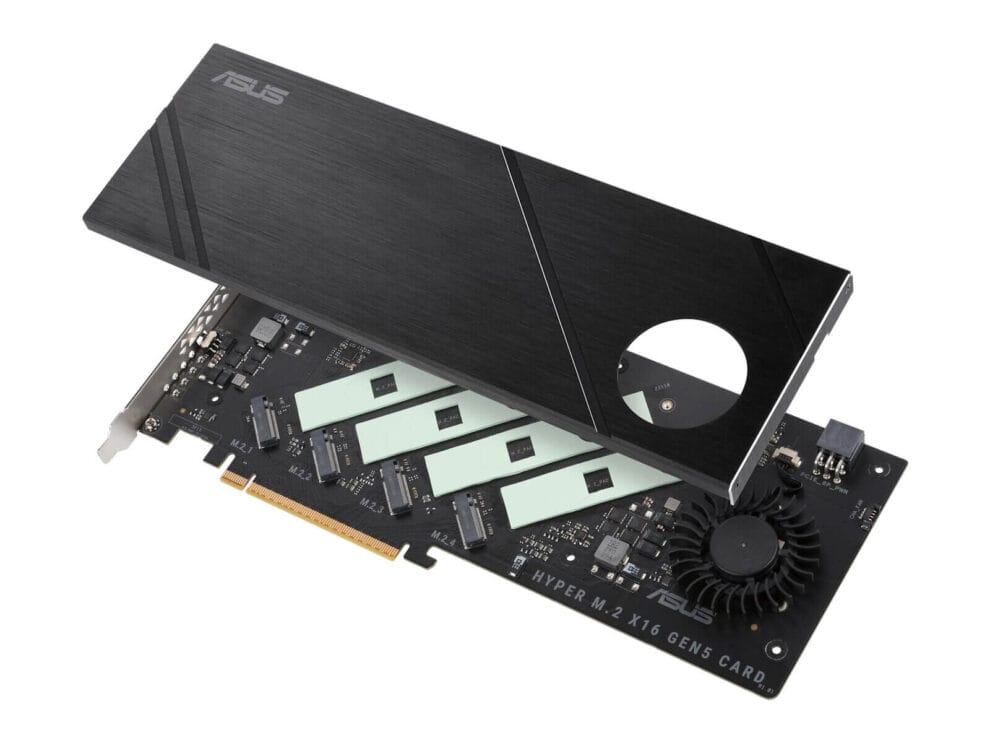

- – Large heatsink and active fan reduces M.2 SSD temperatures for unthrottled transfer speeds and enhanced reliability; additional fan cable connects to the motherboard’s chassis fan header to allow the motherboard to control and regulate fan speed

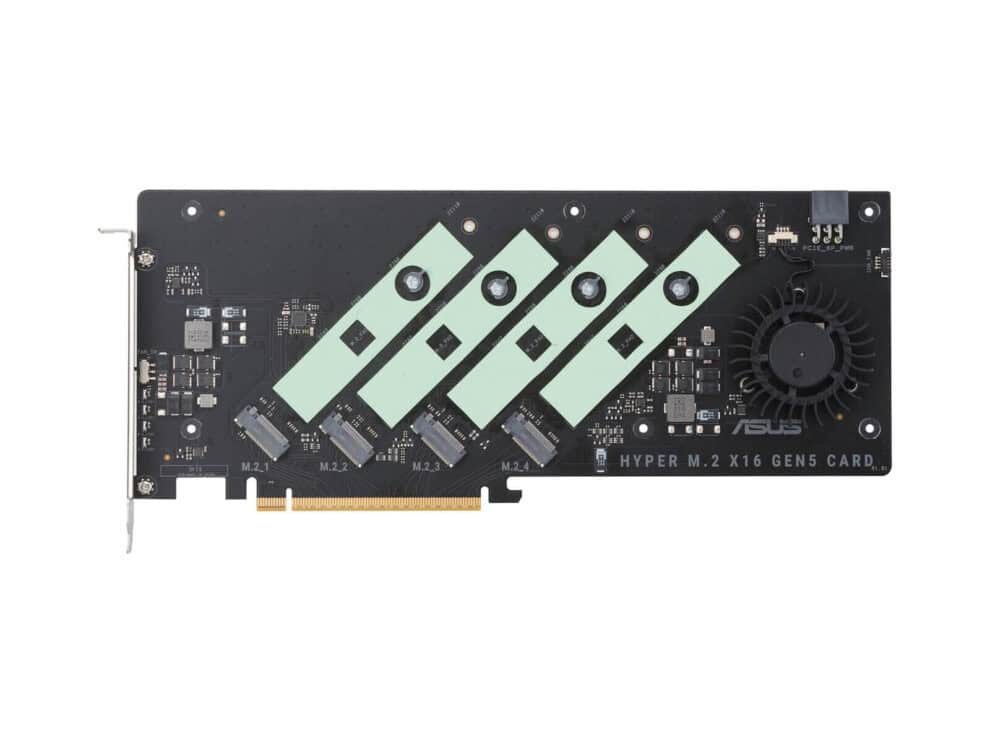

- – Adapted server-grade PCB supports up to four PCIe 5.0/4.0 M.2 drives, with up to 512 Gbps bandwidth for smooth data transfers

Ports & interfaces
Host interface: PCIe
Output interface: M.2
Expansion card standard: PCIe 5.0
NVMe: Yes

Design
Internal: Yes
Product colour: Black
Purpose: PC
Cooling type: Active
Number of fans: 1 fan(s)
Number of expansion slots: 4
LED indicators: Access
Easy to install: Yes

Weight & dimensions
Width: 290 mm
Depth: 122 mm
Height: 15 mm
