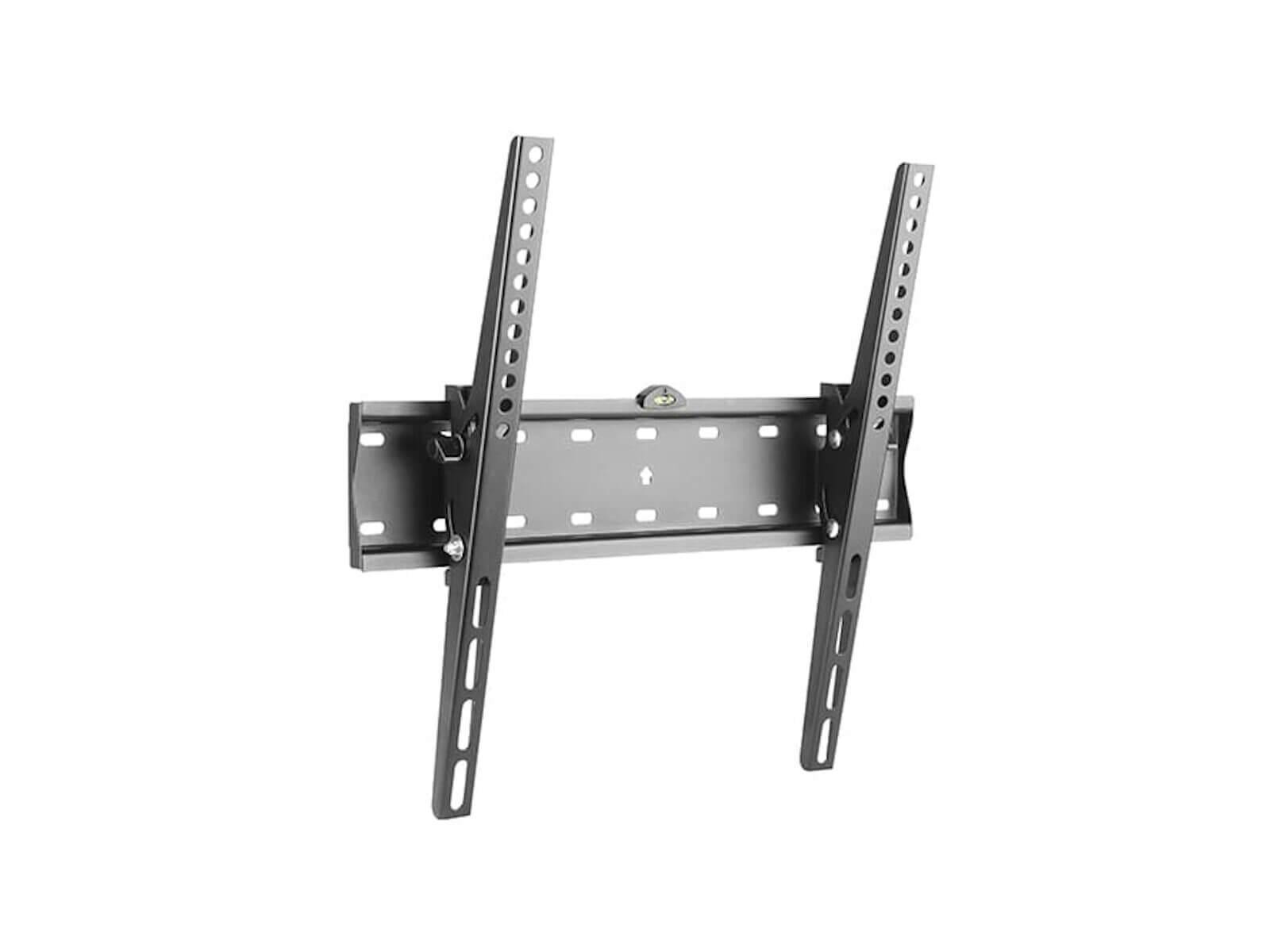

Easy to use and install, the CTX21-044T is designed to fit any 32″-55″ Flat Panel TV up to 40kg/88lbs. This tilting mount gives you the best view from the floor or couch. Fingertip tilt allows for easy TV adjustments, and mount tilts TV back for easy cable access. Integrated bubble level assures easy installation alignment. Compatible with VESA hole up to 400×400.
| SPECIFICATIONS | |
| Product Category: | Tilt TV Wall Mount |
| Rank: | Economy |
| Material: | Steel |
| Metal Sheet Thickness: | Bracket Arm THK=1.5mm cold-rolled sheet, Wall Plate THK=1.5mm cold-rolled sheet (Bracket Arm THK=0.059″ cold-rolled sheet, Wall Plate THK=0.059″ cold-rolled sheet) |
| Surface Finish: | Powder Coating |
| Color: | Fine Texture Black |
| Dimensions: | 433x425x53mm (17″x16.7″x2.1″) |
| Fit Screen Size: | 32″-55″ |
| Fit Curved TV: | Yes |
| Mounting Hole Pattern : | VESA & Universal |
| VESA Compatible: | 200×200,400×200,300×300,400×400 |
| Max. Mounting Hole: | 400×400 |
| Weight Capacity: | 40kg (88lbs) |
| Strength Tested: | 4 Times Approved,3 Times Approved |
| Profile: | 53mm (2.1″) |
| Tilt Range: | +12°-12° |
| Installation: | Solid Wall, Double Stud(406mm) |
| Panel Type: | Detachable Panel |
| Wall Plate Type: | Fixed Wall Plate |
| Cable Management: | No |
| Anti-theft: | No |
| Bubble Level: | Built-in Bubble Level (Integrated on Wall Plate/VESA Panel) |
| Certification: | GS |
