Features

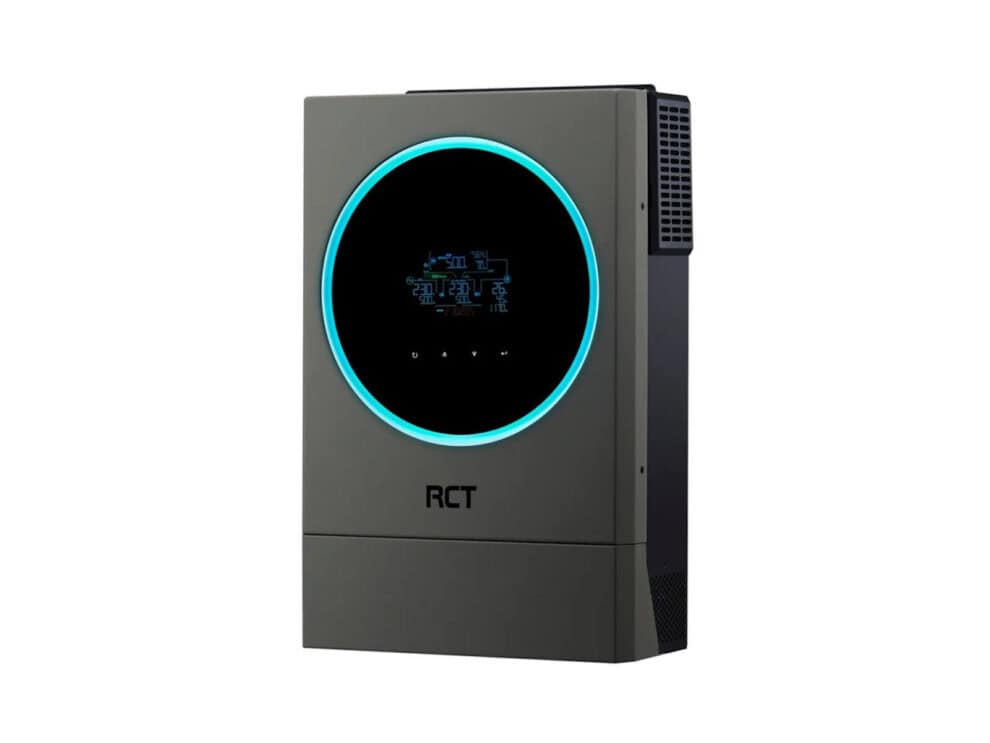

Pure sin wave MPPT solar inverter
Customizable status LED bar with RGB lights
Touchable button with 4.3 coloured LCD
Wide DC input range
Supports USB on-the-go function
Data log events stored in the inverter
Built-in Wi-Fi for mobile monitoring (App is available)
Reserved communication port for BMS
Battery independent function
Parallel operation with up to 9 units
Specifications
Rated Power: 5600va/5600w
Input
Voltage: 230V AC
Selectable Voltage Range: 170-280V AC (PC) 90-280V AC (Home Appliance)
Frequency Range: 50Hz/60Hz (Auto Sensing)
Output
Efficiency (Peak): 93%
Wave Form: Pure Sine wave
Transfer Time: 10 ms (PC); 20 ms (Home Appliance)
Battery Support
Battery voltage: 48 V DC
Floating Charge Voltage: 54V DC
Over Charge Protection: 66V DC
