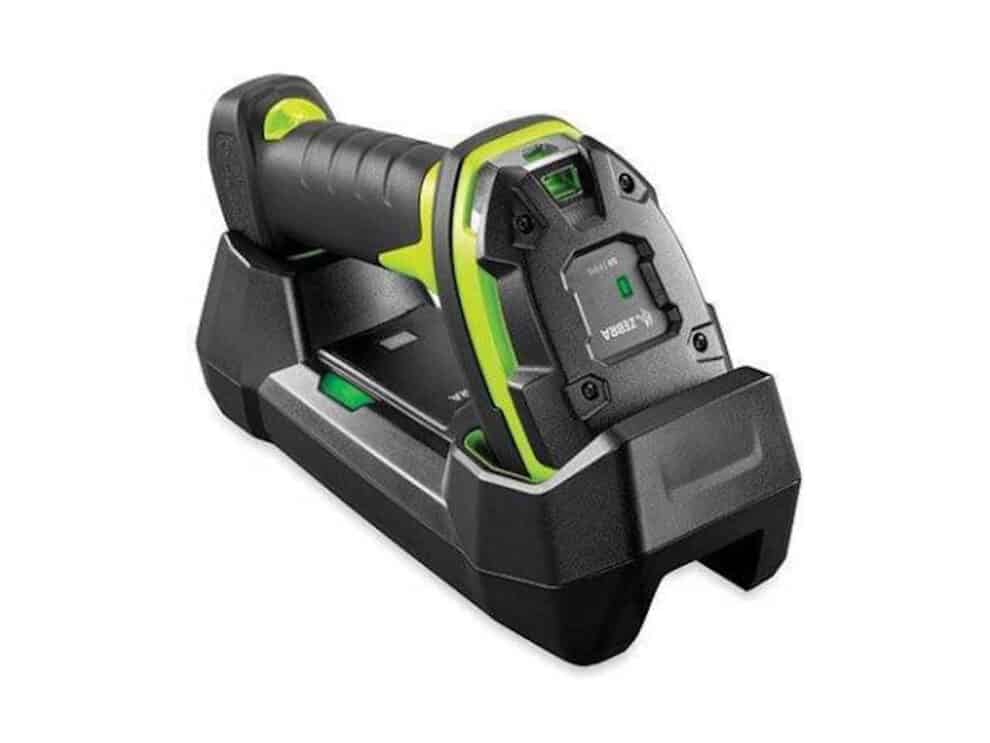

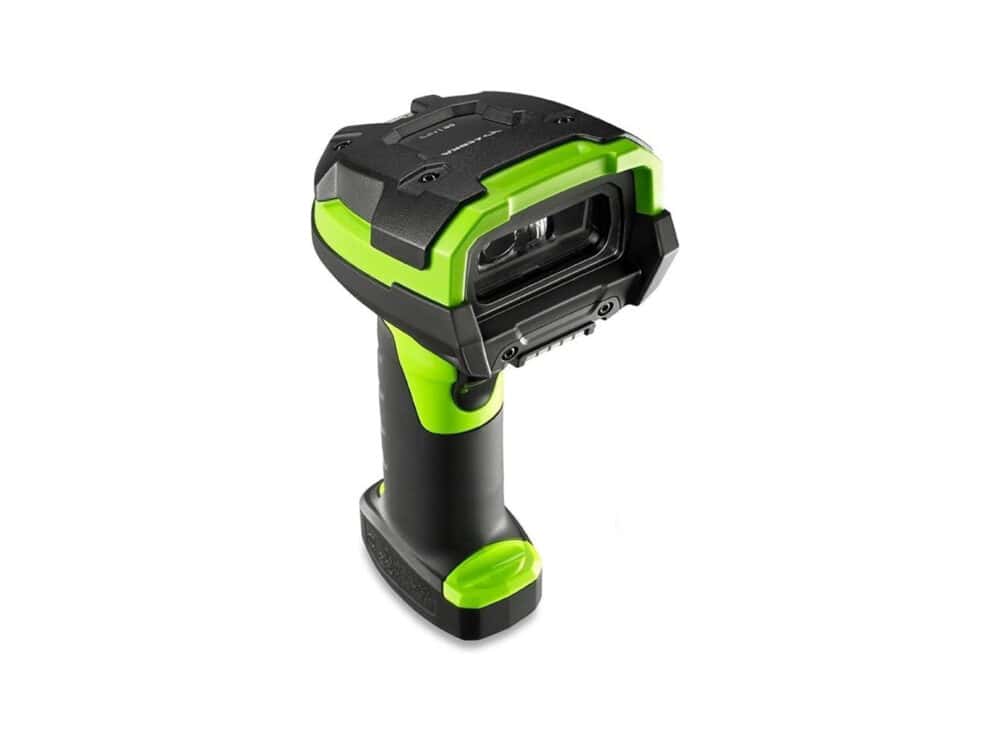

title: Zebra DS3678-SR Handheld Scanner
date: 2024-10-23T06:58:51Z
modified: 2026-05-06T13:05:09Z
permalink: "https://tech.co.za/product/origin-storage-zebra-ds3678-sr-handheld-scanner/"
type: product
status: publish
excerpt: "DS3678-SR RUGGED GREEN STANDARD CRADLE USB (NO LINE CORD) KIT: DS3678-SR0F003VZWW SCANNER; CBA-U42-S07PAR SHIELDED USB CABLE (SU"
wpid: 516796
product_brand:
  - Zebra
product_type:
  - simple
product_visibility:
  - featured
  - outofstock
product_cat:
  - Barcode Scanners
  - POS
  - POS Accessories
featured_image: "https://tech.co.za/wp-content/uploads/2024/10/scanner-1-3.jpg"
---

Technical Information

**Connectivity Technology:**Wireless



**Scanning Capability:**- 1D
- 2D





**Barcode Symbology Supported:****1D:**

- Code 39
- Code 128
- Code 93
- Code bar/NW7
- Code 11
- MSI Plessey
- UPC/EAN, I 2 of 5
- Korean 3 of 5
- GS1 DataBar
- Base 32 (Italian Pharma)

**2D:**

- PDF417
- Micro PDF417
- Composite Codes
- TLC-39
- Aztec
- DataMatrix
- MaxiCode
- QR Code
- Micro QR
- Chinese Sensible (Han Xin)
- Postal Codes
- DotCode

**Digimarc:**

- Digital watermark technology

**IUID Support:**

- Supports IUID parsing, the ability to read and separate IUID fields per application requirement





**Image Sensor Type:**Imager



**Scan Pattern:**Omni-directional



**Scanner Range:**Standard Range



**Scanning Distance:**8.60″



**Cable Type Included:**USB



**Field of View (Horizontal):**42°



**Field of View (Vertical):**28°



**Reading Angle (Skew):**60°



**Reading Angle (Pitch):**60°



**Reading Angle (Roll):**360°



**Drop Specification:**Withstands multiple 8.0 ft. / 2.4 m drops to concrete



**Minimum Print Contrast:**15%



**Minimum Element Resolution (DataMatrix):**10 mil



**Maximum Element Resolution (DataMatrix):**0.20″
