Details

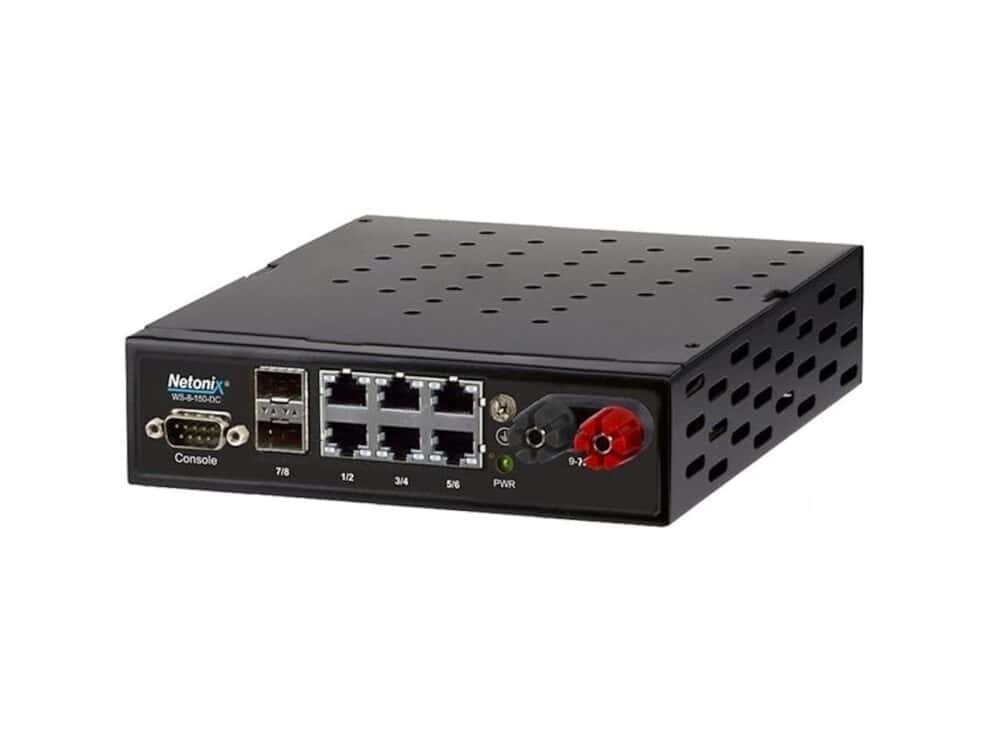

Manufacturer’s Code: WS-8-150-DC
Power Input: 9-72 VDC
Max. Power Consumption: 150W
Operating Temperature: -25 to 55°C
PoE Out Voltage Range: 48-50 VDC / 22-24 VDC
24V PoE Ports Pins 4,5 (+) Pins 7,8 (-): Ports 01-06 (0.75A)
48V PoE Ports Pins 4,5 (+) Pins 7,8 (-): Ports 01-06 (0.75A)
24VH PoE Ports Pins 1,2,4,5 (+) Pins 3,6,7,8 (-): Ports N/A (1.5A)
48VH PoE Ports Pins 1,2,4,5 (+) Pins 3,6,7,8 (-): Port 01 (1.5A)
Ethernet Ports: (8) 10/100/1000 Ethernet Ports
SFP Ports: (2) SFP Ports
Dimensions: 191 mm x 178 mm x 44 mm
Features
- Powers airFIBER / Mimosa / SAF
- Monitor DC voltage and current into the switch from your batteries
- Monitors the DC power supply temperature with auto and programmable thermal shutdown
- Program the switch to shut down lower priority POE ports when batteries get low and to restore them when sufficient reserves return or when it detects charging has resumed from solar or wind
- If power gets too low it can be configured to shut down all POE ports and idle your remote site until it detects solar or wind charging has resumed and sufficient reserves are generated
- You can chose to run your batteries all the way down to 9V to keep the tower up or have it shut down in stages to preserve your energy
