Netgate 8300 Base pfSense+ Security Gateway

Experience unparalleled value and performance with the Netgate® 8300 Security Gateway powered by pfSense® Plus software. The Netgate 8300 is tailored for medium to large business, xSP, MSP/MSSP with high connectivity and stability requirements. This unit is enterprise-ready, featuring Netgate’s most expandable chassis and hot-swappable PSUs, ensuring mission critical reliability and ease of maintenance.

This security gateway boasts a formidable 2.0 GHz, 8-core, 16-thread Intel® Xeon® D-1733NT processor with Intel AVX-512 for exceptional Firewall and VPN performance. The Netgate 8300 harnesses the power of Intel AVX-512 to accelerate VPN operations, bolstering throughput and reducing overhead while optimizing core firewall functions for enhanced network security and performance. With quad 10G SFP+ ports, quad 1G SFP ports, and triple 2.5G RJ-45 ports, plus expandability to 25G and 100G ports via PCIe cards, the Netgate 8300 future-proofs your network infrastructure, scaling effortlessly with your business.

The Netgate 8300 maximizes your investment by delivering high-performance throughput at an incredibly competitive cost per gigabit. Compared to the 1541, it boasts a remarkable 47% firewall performance gain, 100% improvement in VPN and routing throughput, and a 175% increase in port density.

This compact 1U chassis optimizes space efficiency in server rooms and data centers, ideal for mission-critical deployments requiring robust high availability options and hotswap dual-power capability. Redefine your network standards by offering superior scalability, performance, and cost efficiency that exceeds industry expectations with Netgate’s 8300 Security Gateway.

Hardware Comparison Chart

L3 Forwarding
(Router)

• IPERF3 Traffic: 36.7 Gbps


Firewall
(10k ACLs)

• IPERF3 Traffic: 26.8 Gbps

IPsec VPN
(AES-GCM-128 w/AES-NI)

• IPERF3 Traffic: 14.6 Gbps

Netgate 8300 performance tests conducted with pfSense Plus software version 24.03

The Netgate 8300 is also available with TNSR software. TNSR is a high-performance software router capable of producing considerable VPN and Routing performance increases far beyond the limits of pfSense Plus software.

CPU: Eight Core 2.0 GHz Intel Xeon CPU. Delivers 36 Gbps routing for everyday iPerf3-bidirectional traffic and over 26 Gbps of firewall throughput

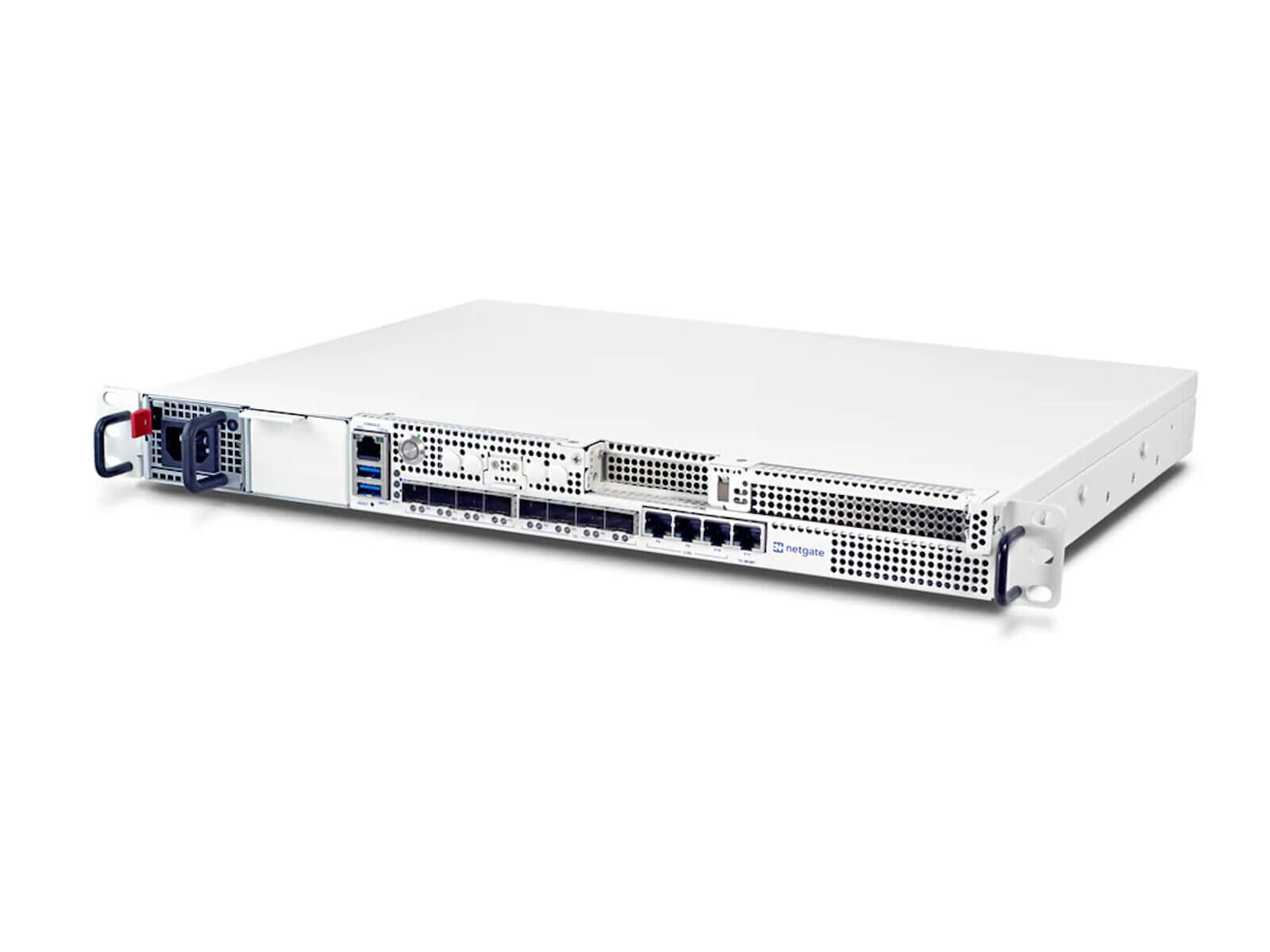

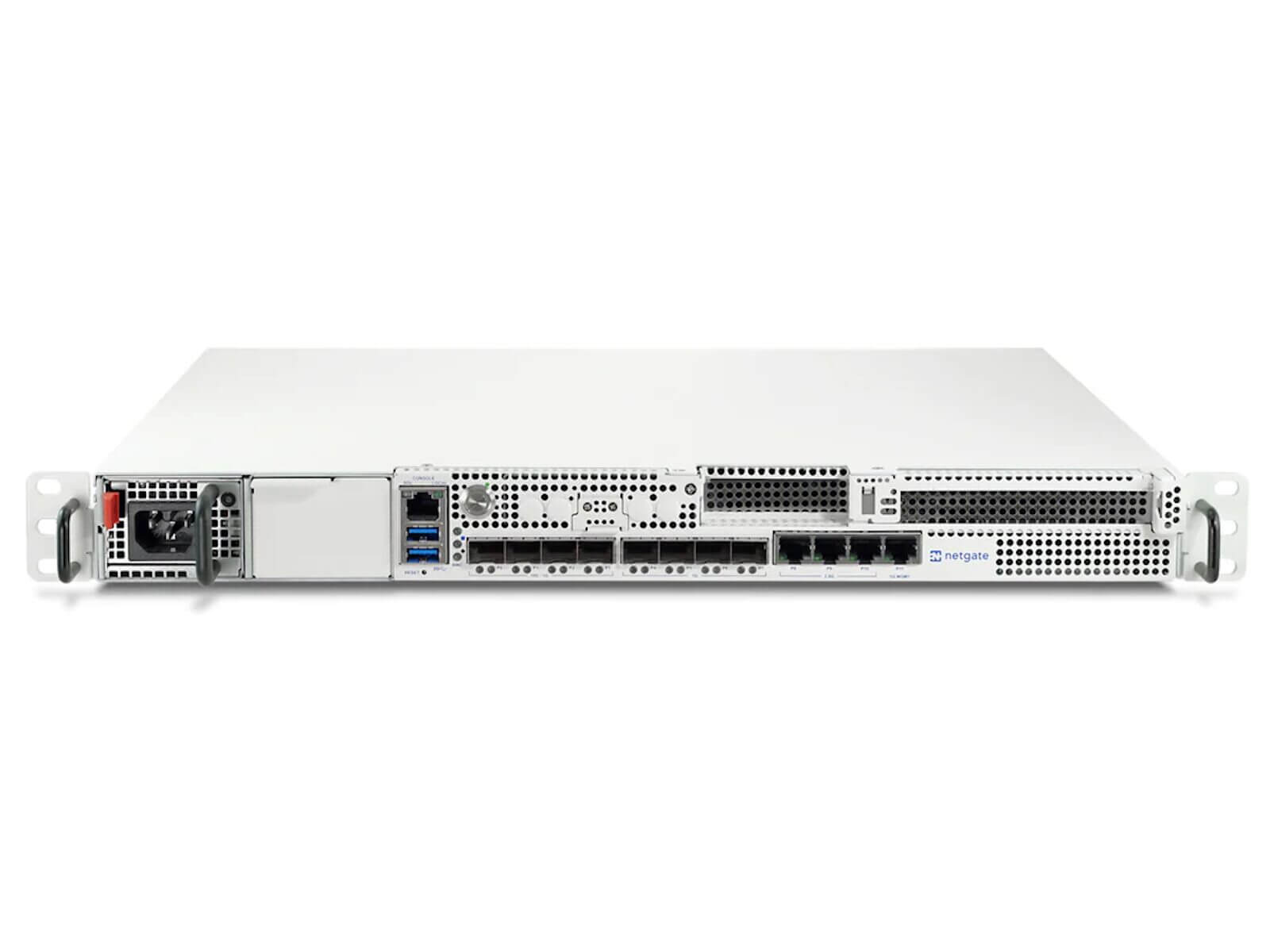

Network Ports: 11 Independent 1G, 2.5G, and 10G ports. Maximum port flexibility – with 1G, 2.5G, and 10G Ethernet configurable as WAN or LAN across the combination of 11 RJ45 and SFP ports

Expandability: 1 x PCIe 3.0 x8 port for half-length low profile cards and 1 xPCIe 4.0 x16 port for full-height three-quarters length cards

Storage: 512 GB NVMe 2280 M-Key M.2 SSD

Memory: 16 GB DDR4, ECC, 2400MHz via 2x 8 GB (expandable to 32 GB via 2x 16 GB UDIMM)

Power: Dual hot-swappable PSU bays. 1 x Internal 500W PSU (hot-swappable) included, 110V/240V AC input

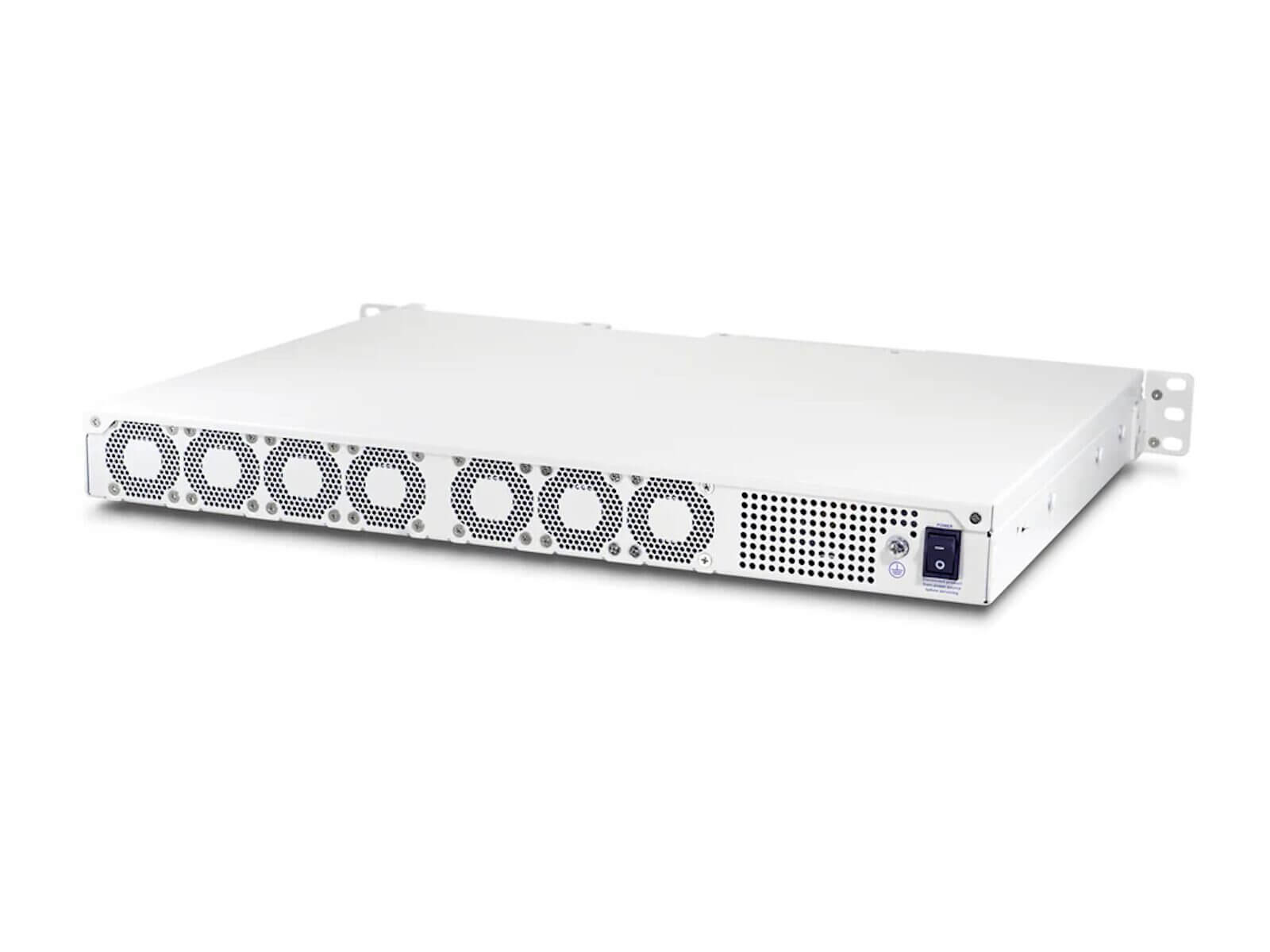

Cooling: Active – 7x chassis fans at the rear of the enclosure

pfSense Plus software provides the performance, flexibility, reliability, and business assurance expected from leading secure networking applications:

• Exceptional performance
• Flexible 3rd-party application options
• Traditional management mechanisms
• Proven reliability
• Complete business assurance support


All at a fraction of the cost of proprietary alternatives, pfSense Plus software is the perfect answer. Popular pfSense Plus use cases include firewall, VPN, routing, load balancing, traffic shaping, captive portal, DNS/DHCP Server, IDS/IPS, failover WAN, and more.
