With Al detection, the Network Camera could leverage motor mechanism to perform Pan/Tilt/Zoom to track the moving human or vehicle automatically and adjust zoom status flexibly according to the target distance with the powerful optical zoom capability.
Embedded with optical zoom lens, the cameras’ resolution is up to 23x optical zoom which allows the user to zoom up to distant objects while still maintaining the clarity and delivering high quality video over the entire zoom range.
Technical Specification

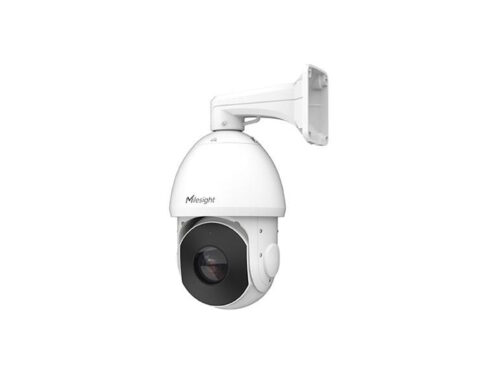

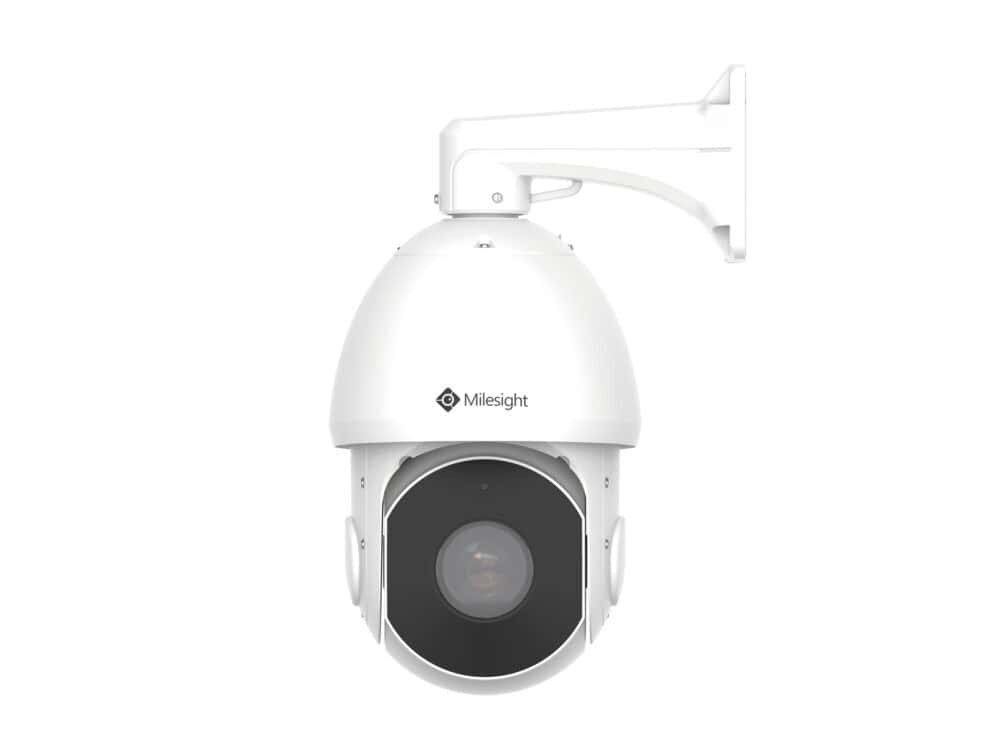

Product: 2MP 23x AI Speed Dome Network Camera
Image Sensor: 1/2.8″ Progressive Scan CMOS
Min. Illumination: Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.5, B/W: 0Lux with IR on
WDR: 140dB Super WDR
Shutter Time: 1/100000s∼1s
Day/Night Mode: Day/Night/Auto/Customize/Schedule
S/N: >55dB
Digital Zoom: 16X
Lens
Focal Length: 5 – 117mm, 23x Optical Zoom
Zoom Speed: Approx 6s (Wide-Tele)
Field of View: H60°- H3° / D69° – D4° / V35° – V2°
Focus Control: Auto/Semi-Auto/Manual
Minimum Working Distance: 100/1500mm (Wide/Tele)
Aperture: F1.5 – F3.5
Iris Control: Auto
IR
Irradiation Distance: Up to 200m
Irradiation Angle: Auto/Manual
Ethernet: 1x RJ45 10M/100M Ethernet Port
Audio I/O: 1/1
Alarm I/O: 4/2
Power Supply: PoE (802.3at) or AC 24V 3A ±10% (*Power supply is not included)
