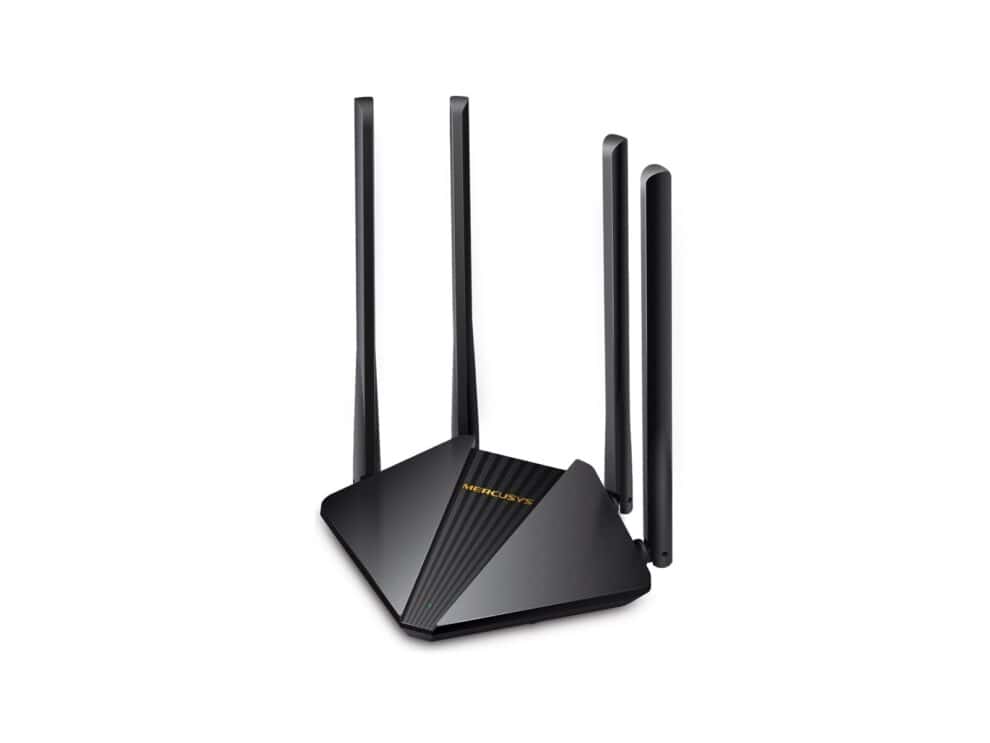

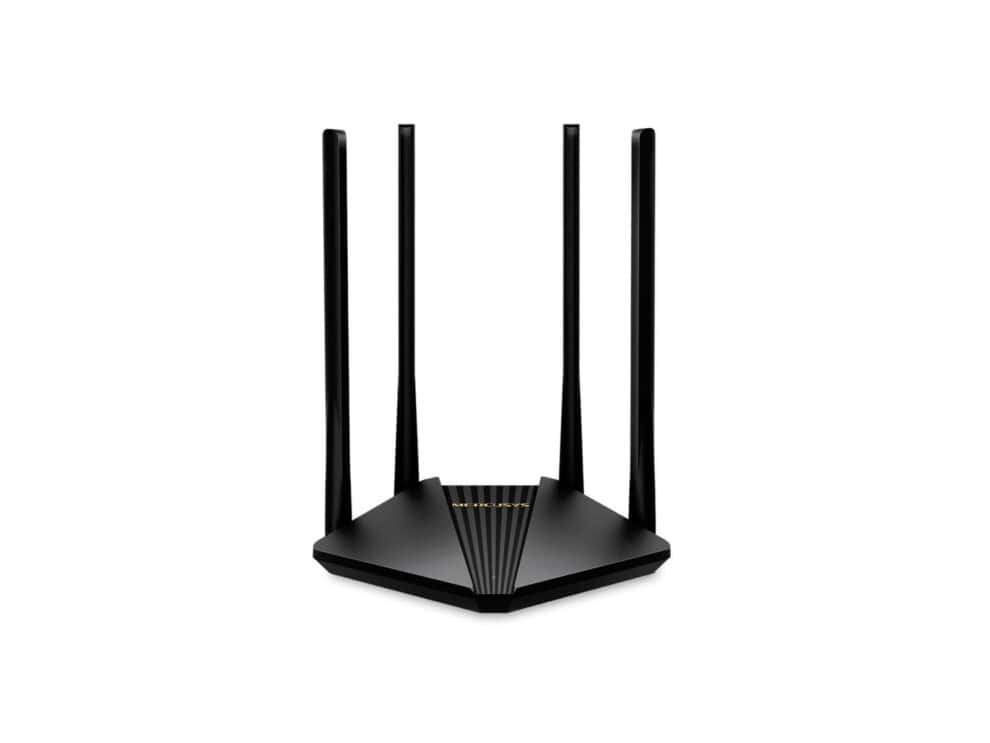

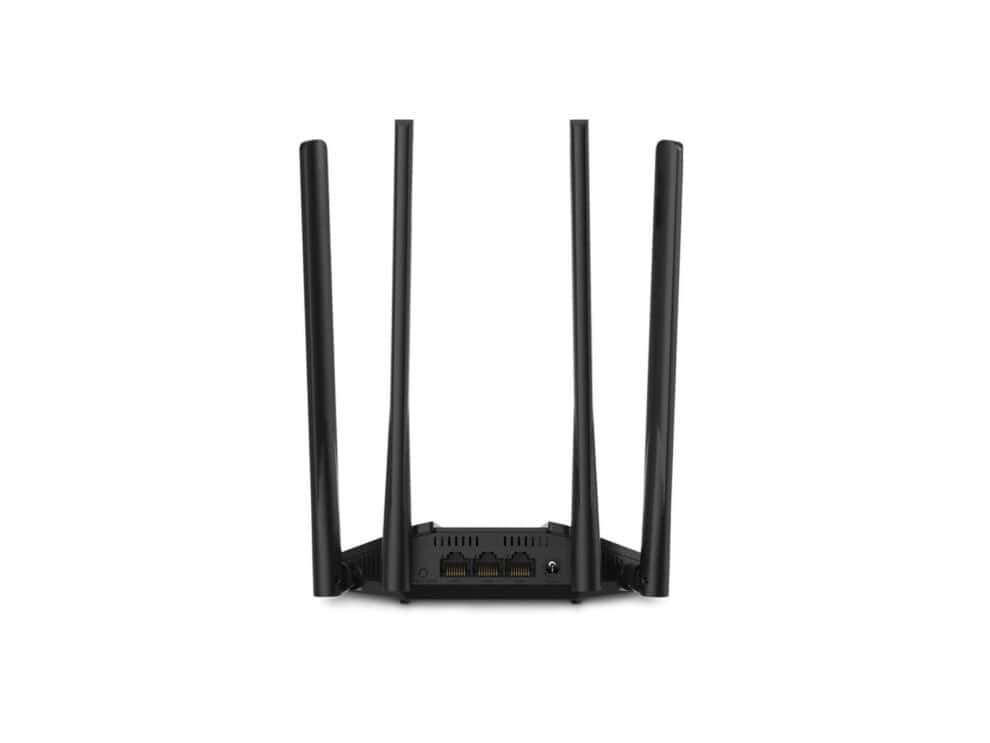

Mercusys AC1200 Dual Band Wi-Fi Router

Wireless Standards

IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz Frequency

2.4 GHz, 5 GHz Signal Rate

867 Mbps (5 GHz) + 300 Mbps (2.4 GHz), compatible
with 11ac/a/b/g/n Wi-Fi standards Reception Sensitivity

11g 6Mbps: -96dBm
11g 54Mbps: -78dBm
11n HT40 MCS7: -74dBm
11n HT20 MCS7: -71dBm
11a 6Mbps: -97dBm
11a 54Mbps: -79dBm
11ac VHT20 MCS8: -74dBm
11ac VHT40 MCS9: -70dBm
11ac VHT80 MCS9: -65dBm Transmission Power

2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP) Wireless Security

WPA-PSK / WPA2-PSK

Software

Operation Modes

Router Mode, Access Point Mode WAN Type

Dynamic IP/Static IP/PPPoE/L2TP/PPTP Management

Access Control
Local Management
Remote Management DHCP

Server, DHCP Client List NAT Forwarding

Port Forwarding, Port Triggering, UPnP, DMZ Firewall Security

SPI Firewall, IP and MAC Address Binding Guest Network

2.4 GHz Guest Network, 5 GHz Guest Network
