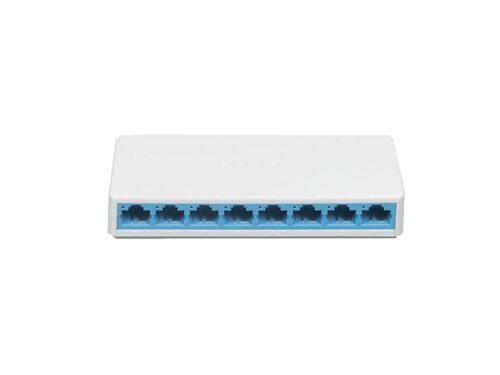

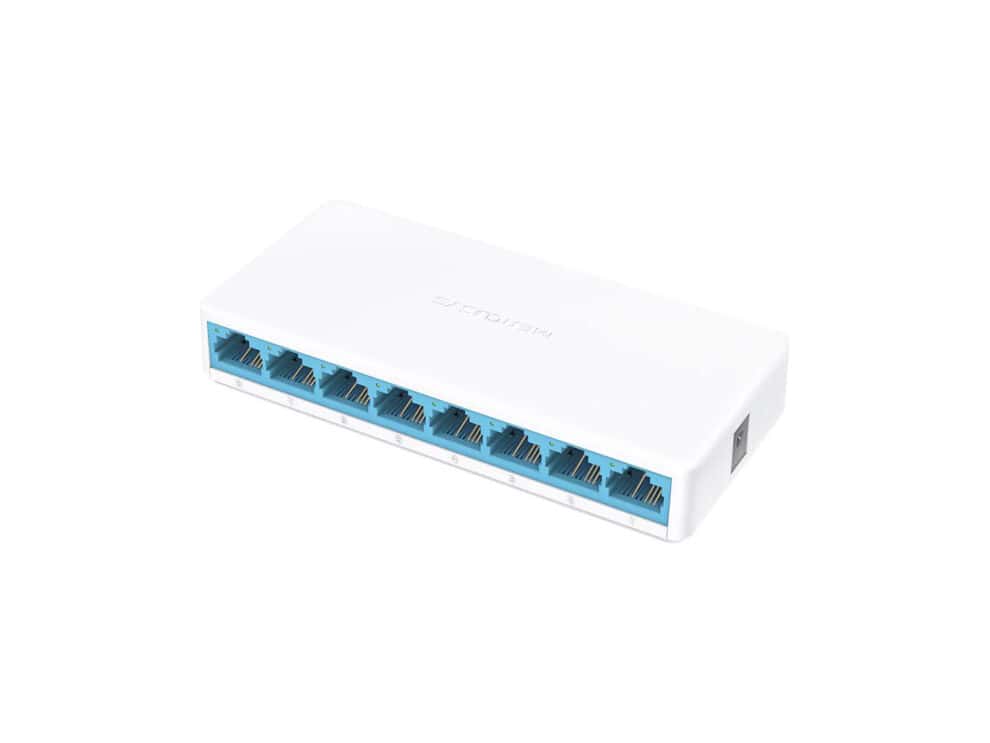

title: Mercusys 8 Port Desktop Switch
date: 2024-10-03T05:36:35Z
modified: 2026-05-22T08:01:44Z
permalink: "https://tech.co.za/product/mercusys-8-port-desktop-switch/"
type: product
status: publish
excerpt: "- Eight 10/100Mbps auto-negotiation RJ45 ports with auto MDI / MDIX supported\\n- Easily wired network expansion\\n- Compact design for flexible arrangement\\n- Plug and play setup, no configuration required"
wpid: 512917
product_brand:
  - Mercusys
product_type:
  - simple
product_visibility:
  - featured
product_cat:
  - Networking
  - Switches
featured_image: "https://tech.co.za/wp-content/uploads/2024/10/switch-1-5.jpg"
---

**Software**
Transfer Method: Store and forward

**Hardware**
Dimensions (W X D X H): 127 x 60.3 x 22 mm
Interfaces: 8 10/100Mbps ports, auto-negotiation, auto-MDI/MDIX
External Power: Supply External power adapter (Output: 5.0VDC / 0.6A)
Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, CSMA/CD
Fan Quantity: Fanless
Data Rates: 10/100Mbps at half duplex, 20/200Mbps at full duplex
Buffer Capacity: 768Kb
Jumbo Frame: 2KB
Switching Capacity: 1.6Gbps
