| Specifications | |
| Product Code | ME-3000-WPTV |
| Model name | |
| Model name | ME-3000-WPTV |
| Power rating | |
| VA/Watt | 3000VA/2700W |
| E&#-1277;ciency | |
| Double coversion mode | 0.91 |
| ECO mode | Up to 98% |
| Input performance | |
| Voltage range | 176-300V 100% load, 100-176V derating to 40% load linearly |
| Rated frequency | 50Hz/60Hz |
| Frequency range | 40Hz-70Hz(45Hz-55Hz |
| 54Hz-66Hz @ load>60%) | |
| PF | >0.99 |
| THDI | <5% |
| Input connection | |
| Wiring/socket | IEC C19 |
| Output performance | |
| Rated voltage | 220/230/240V |
| Rated frequency | 50Hz/60Hz |
| Maximum PF | 0.9 |
| Voltage accuracy | ±1% |
| THDv | <2% linear load |
| <6% non linear load | |
| Transfer time | 0ms(4ms @ line <-> |
| bypass, 10ms @ ECO <->In- verter) | |
| Crest Ratio | max 3:1 |
| Overload (line mode) | 100% |
| 105%< load ≤ 130% for 60 second | |
| 130 | |
| >150% for 0.3s. | |
| Output connection | |
| Wiring/socket | 4 x IEC C13 + 1 x SA |
| Battery | |
| Voltage | 72VDC |
| Capacity(AH) | 6 x 12V/9Ah |
| Charger | |
| Maximum charging current | 1.5A |
| Other working mode | |
| CVCF | Yes (derating to 60% load) |
| HMI (human-machine interface) | |
| Display | segment LCD |
| USB | USB 2.0 |
| RS232 | yes |
| EPO | yes |
| Intelligent slot | yes |
| Network card | yes, NMC mini card |
| Modbus card | Optional, CMC/Modbus Long Card |
| Dry contactor card | Optional, AS400 Long Card |
| Monitor software | Winpower |
| Physical performance | |
| Dimension(W*D*H)mm | 190*393*327 |
| Net Weight(KG) | 22.7 |
| IP protection level | IP20 |
| Environment | |
| Operating temperature | 0-40degreesC |
| Relative Humidity | 0-95% |
| Operating Altitude | 0~3000m(the load derating 1 % every up 100m@1000~3000m) |
| Acoustic Noise | <41dB @ typical load with battery fully charged |
| Enviromental and safety | |
| EMC Standard | IEC/ EN 62040-2 |
| Safety Standard | IEC/ EN 62040-1 |
| Accessory | |
| Input power cable | yes |
| Output power cable | No |
| USB cable | Optional |
| RS232 cable | Optional |
| Manual | Yes |

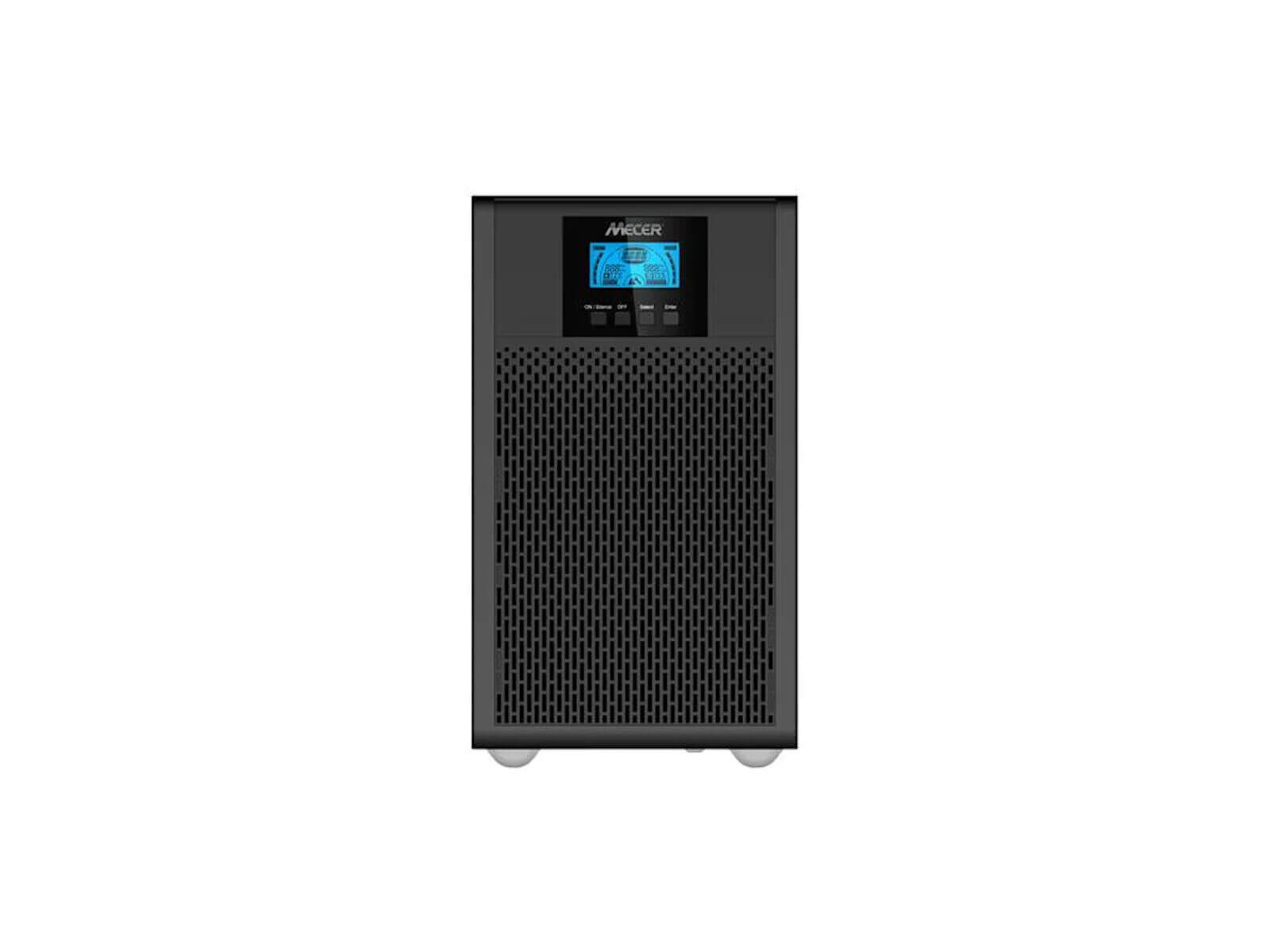

Mecer Innova Basic G2 3kva On-line Tower UPS PF 0.9
R7,399.00
Includes FREE shipping and a 2% EFT discountCard payment price is R7,547.00.
In stock
