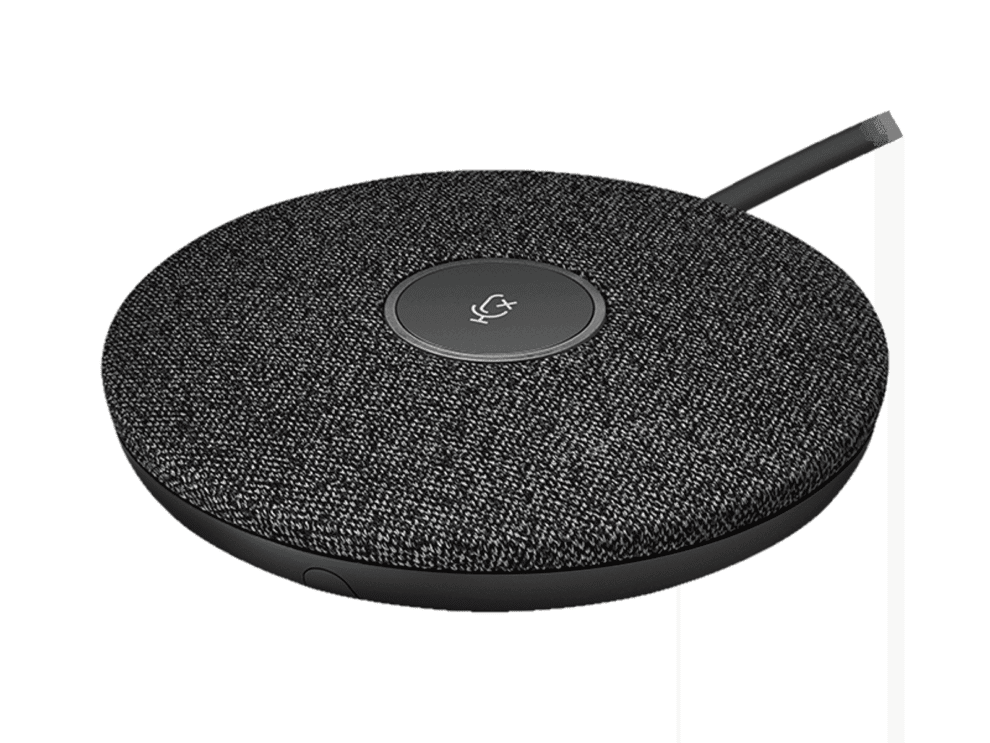

Rally Mic Pod
Modular microphones with RightSound⢠for Logitech Rally
Auto-levels voices and suppresses noise for clear audio
Convenient mute control and indicator light
Premium materials look great in any room
imensions
Height x Width x Depth: 21 mm x 102 mm x 102mm
System Requirements
Logitech Rally or Logitech Rally Plus
Note: Rally Mic Pods connect to the table hub included with Logitech Rally systems, and are not compatible with the standalone USB Rally Camera.
RightSound Technologies
Machine learning AI trained to distinguish human speech from other sounds
AEC (Acoustic Echo Cancellation)
VAD (Voice Activity Detector)
Background noise suppression
Auto-level loud and soft voices
RightSound Mic Matrix
Factory-paired, very low distortion broadside beamforming algorithm steers the microphones directly at the talker for the best voice pickup and noise reduction
Supports up to 56 acoustic beams (8 per Rally Mic Pod) to lock onto the active talker
Beam focus refresh rate: 8ms (125 times/second)
Technical Specifications
Pickup range: 4.5m diameter
Four omnidirectional microphones forming eight acoustic beams
AEC (Acoustic Echo Cancellation)
VAD (Voice Activity Detector)
Background noise suppression
Mute button with LED status indicator
Captive 2.95m 12-pin cable
Daisy chain up to 7 Rally Mic Pods
Frequency response: 90Hz â 16kHz
Sensitivity: >-27dB +/-1dB @ 1Pa
Microphone data rate: 48 kHz
Recommended # of participants:
Rally (one Mic Pod): 10
Rally Plus (two Mic Pods): 16
Additional participants per Mic Pod: 6
Recommended participants for Rally with 7 Mic Pods: 46
