Technical Specifications
Speaker :
Frequency Response: 60Hz-20KHz
Driver size: 55 mm
Support automatic audio switching 11See full list of supported headsets in Logi Dock compatibility page
Microphones :
Beamforming mic array with six mics
Frequency Response: 65Hz-8KHz
Docking Station :
Docking interface: USB-C Alt Mode 12Logi Dock supports laptops that have implemented USB-C industry specifications. For USB-C functionality, laptops must support USB Power Delivery 2.0 (or greater) for power delivery of up to 100W, USB 3.1 Gen 2 (or greater) for data transfer and DisplayPort Alt mode for video output.
Power to system: Up to 100 Watt charging
Monitor ports :
1 x HDMI v. 2.0 (Support up to 4K, i.e. 3840 x 2160 @60Hz HDR) 13See support page for compatibility updates.
1 x DisplayPort 1.4 (Support up to 4K, i.e. 3840 x 2160 @60Hz HDR) 14See support page for compatibility updates.

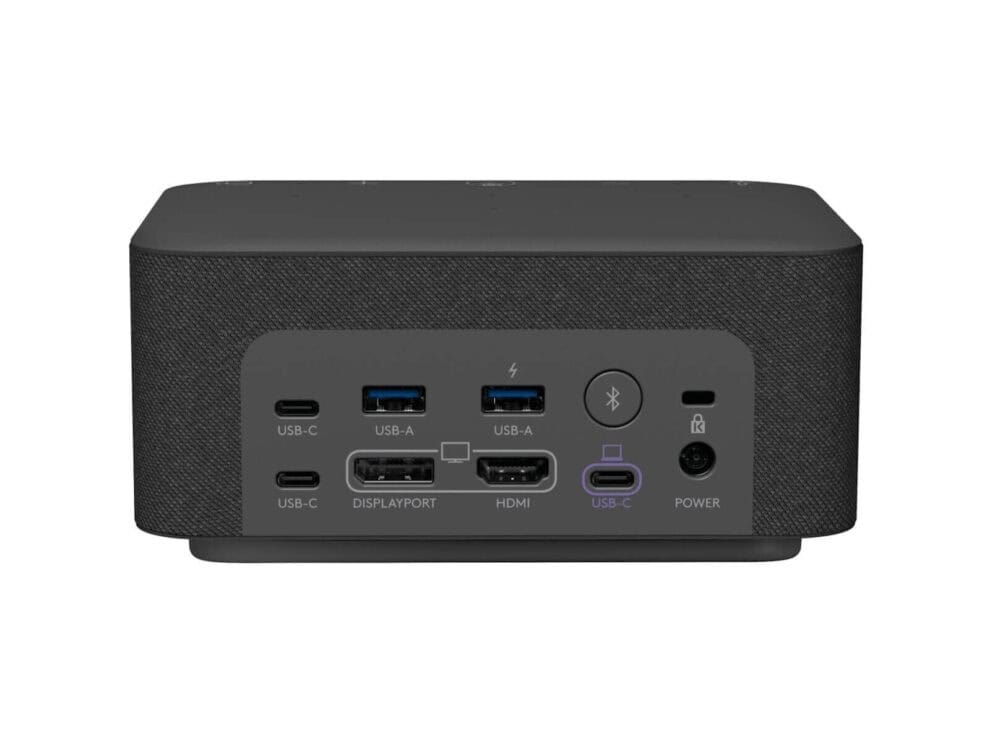

Peripheral ports :
2 x USB-A
1 x USB 3.1 Gen 1 (5Gbps) with 4.5W charging
1 x USB 3.1 Gen 1 (5Gbps) with 7.5W fast charging 15Port marked with lightning icon
3 x USB-C
2 x USB 3.1 Gen 1 (5 Gbps) with 4.5W charging
1 x USB 3.1 Gen 1 (5 Gbps) with 7.5W fast charging 16Port marked with lightning icon
1 x USB-C Upstream
Others :
1 x Bluetooth Sync button
Bluetooth version: 5.1
1 x AC power (230W, 19.5V)
Security slot type: Kensington security slot
In the Box
- Logi Dock
- Power supply cable (1.6 m)
- AC power cord (1.7 m)
- USB-C to USB-C cable (1 m)
- User documentation
