Technical Specifications
System Requirements
- Wired or wireless internet connection
- Room solution software license (not included)
General
- Operating Systems: Logitech CollabOS 1.4 or higher
- Device Management: Logitech Sync and supported device management platforms
- Network Protocol Support: IPv4, IPv6
- Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file
COMPATIBILITY AND CERTIFICATIONS
- Certifications
- Microsoft Teams Rooms on Android
- Zoom Rooms
- Appliance Mode Compatibility
- Microsoft Teams Rooms on Android
- Zoom Rooms
- Tencent Meeting Rooms
- Verified Audio Hardware
- Biamp TesiraFORTÉ X Series, Devio SCX Series, TesiraFORTÉ AVB VT4 with Tesira EX-UBT
- Extron DMP Plus and MediaPort DSPs
- Nureva HDL family of audio conferencing systems
- Q-SYS Core Processor(s)
- Shure IntelliMix P300
- Certified Hardware
- Logitech MeetUp
- Rally Camera
- Rally System
- Rally Plus System
- Tap
- Tap IP
- Digital Signage
- Appspace
- Zoom Rooms Digital Signage (video content only).
- For the latest information on certifications and compatibility, visit www.logitech.com/support/vc-certifications

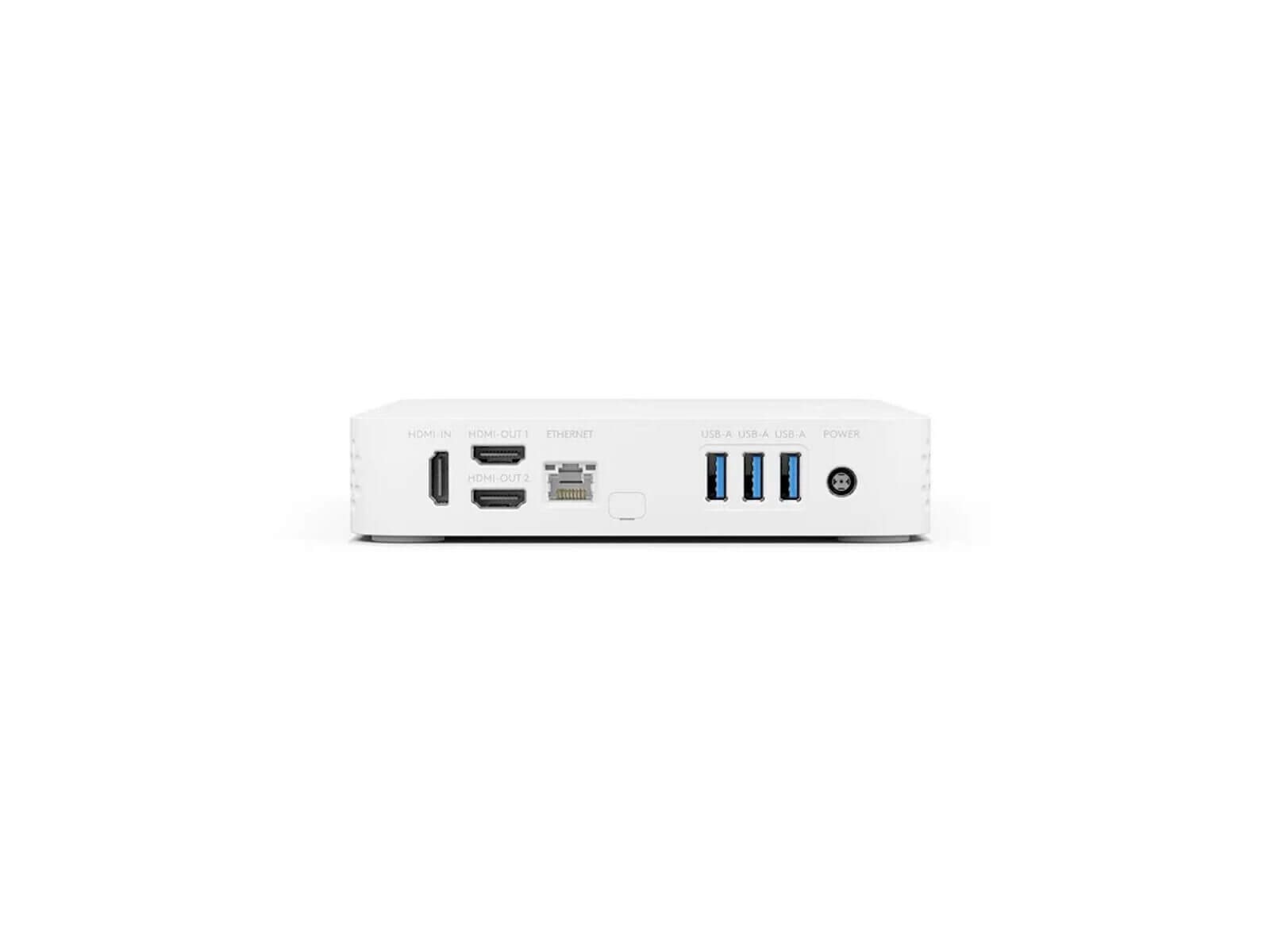

Interfaces
- HDMI Out: 2 (up to 1080p)
- HDMI In: 1
- USB: 3x Type A 2.0
- Network: 10/100/1G Ethernet
- WiFi: 802.11a/b/g/n/ac
- Remote Control: Bluetooth® Low Energy
Power & Cables
- Power supply: Auto-sensing
- Operating Voltage/Power: 100-240V, 19V, 4.74A
- Power Supply Dimensions: 127 mm x 51 mm x 30 mm
- DC Cable: 1.5 m
- AC Cable: 1 m
Environmental
- Operating Temperature: 0 to 40°C
- Storage Temperature: -40 to 70°C
- Humidity: 10 to 95%
Security
- Full Disk Encryption: AES-128
- Data Encryption: Symmetric Keys, PKI
- Device Identity: Protected by device attestation
- Device Access: Authenticated using API
- Key Protection: Arm TrustZone, RPMP
- Device Security: Kensington Lock
