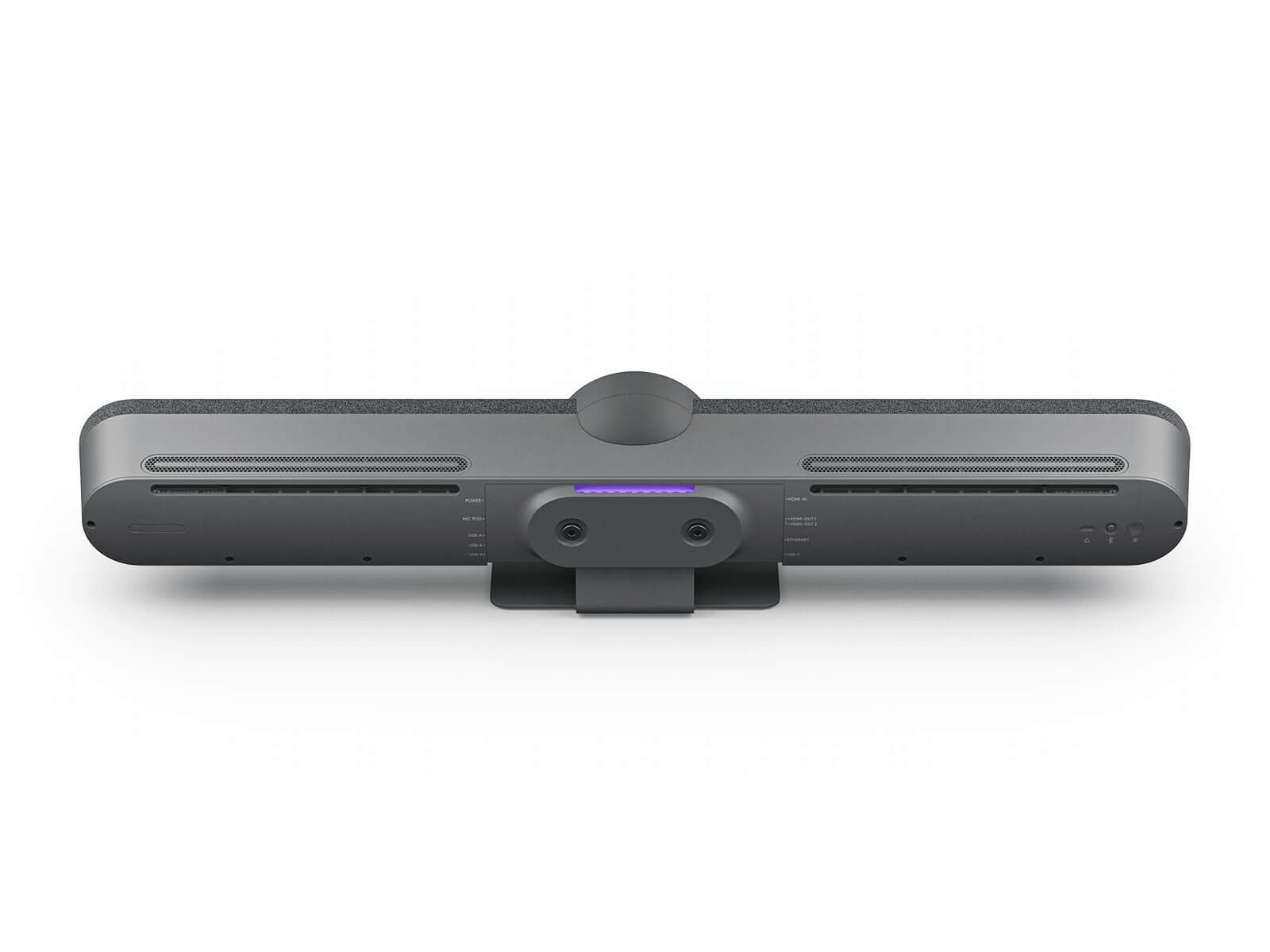

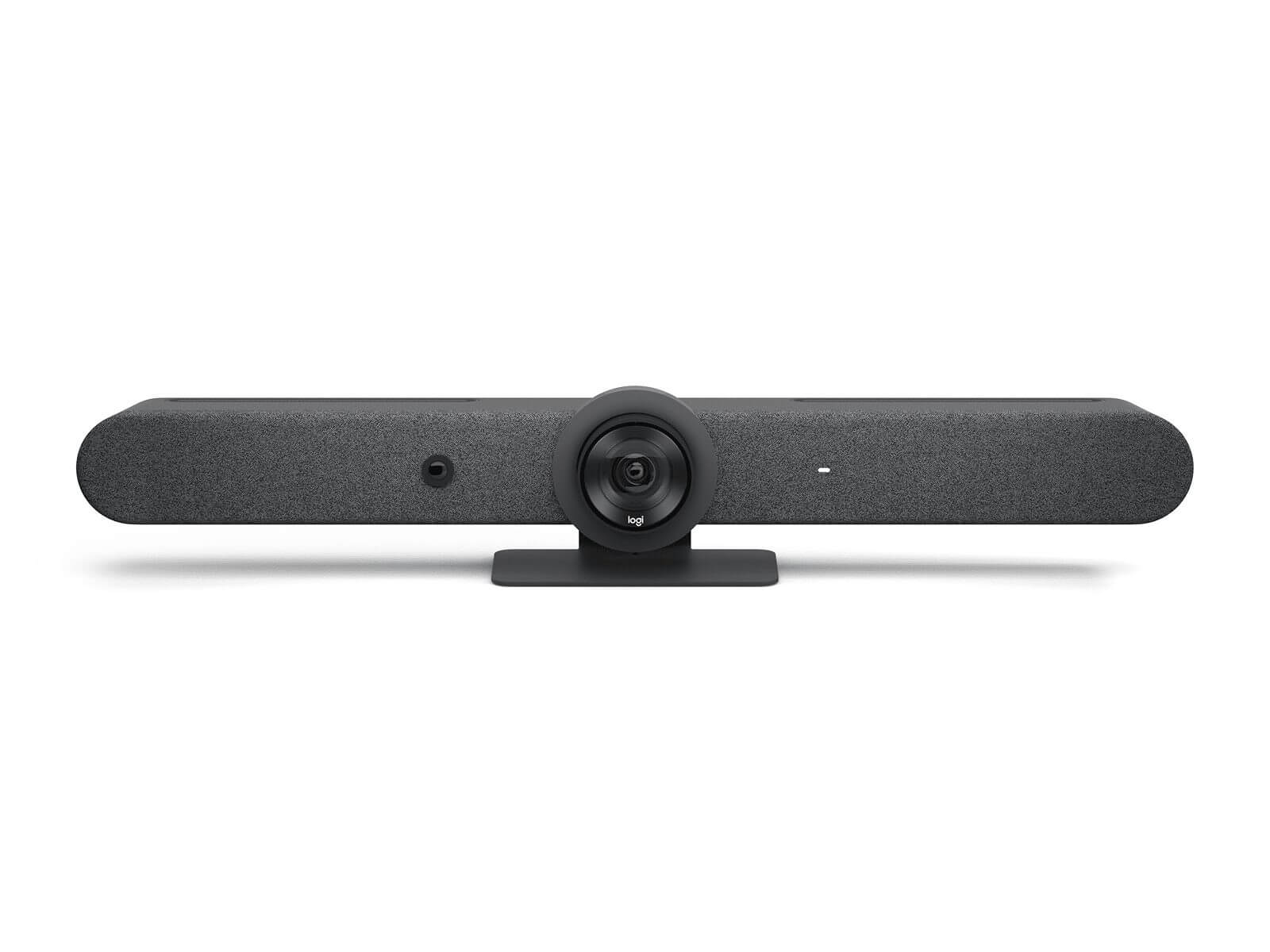

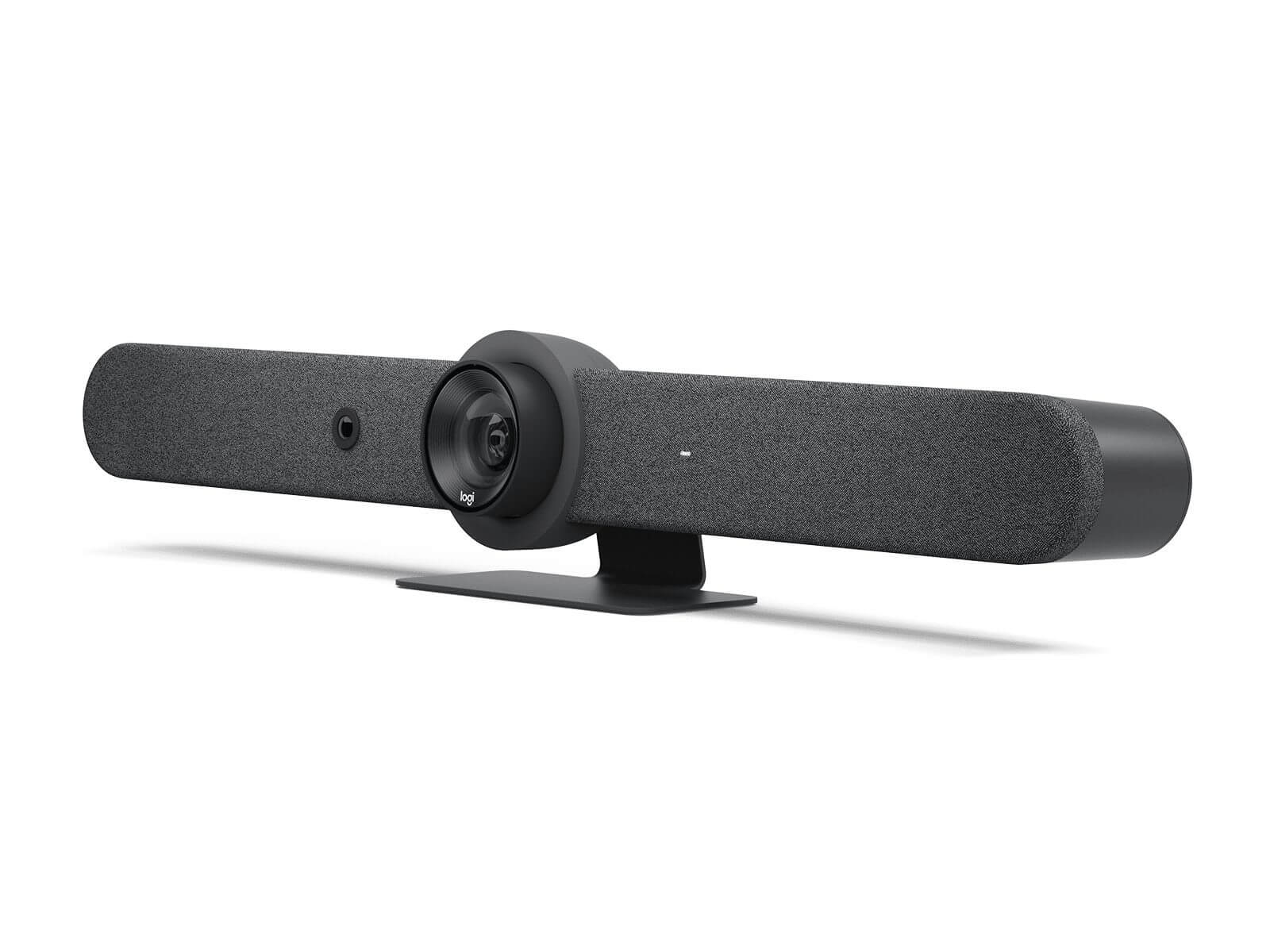

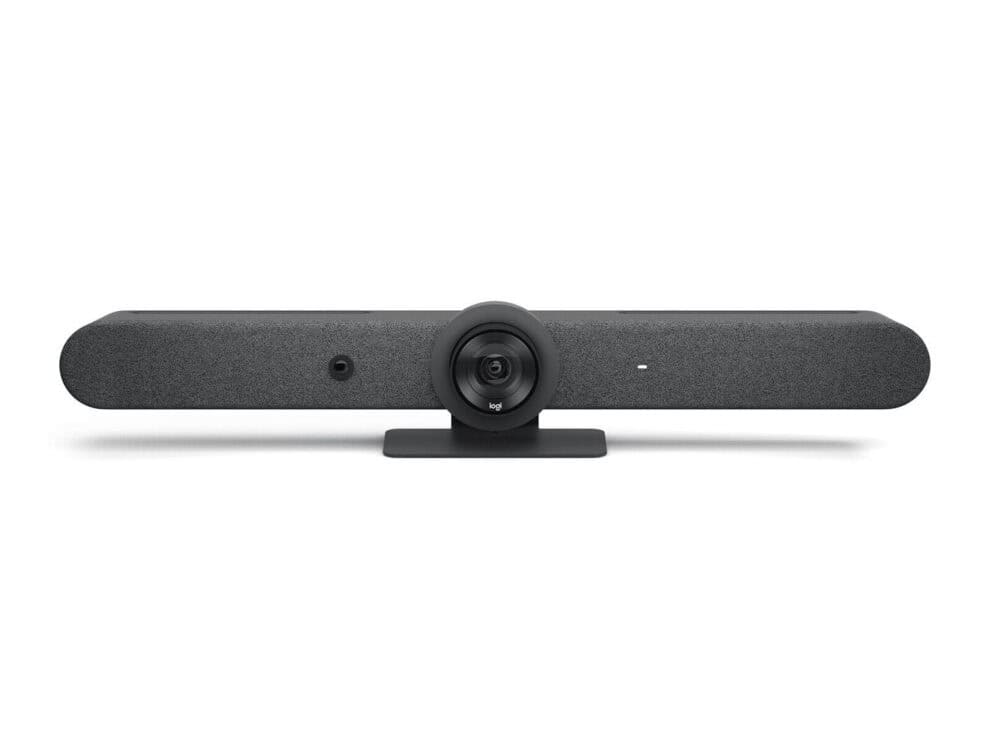

Logitech Rally Bar video conferencing system Ethernet LAN Group video conferencing system :
– All-in-one video bar features an advanced microphone array, room-filling speakers, and a real PTZ camera in a sleek, easy-to-install form factor.
– Simple to set up with a dedicated PC, laptop, or in appliance mode for a computer-free deployment option.
– Thoughtful cable management lets you route cables from above or below to minimize visible cabling and prevent accidental disconnections.
– Multiple mounting options, including available Wall and TV Mounts, provide a finished look and no-drill options for both meeting rooms and mobile carts.
– Motorized PTZ lens delivers expansive room coverage, outstanding color, and exceptional accuracy at resolutions up to 4K.
– Always-on AI Viewfinder provides persistent awareness for RightSight auto-framing and room utilization metrics like people count.
Technical details
Product colour: Graphite
Product type: Group video conferencing system
Pan range: -25 – 25°
Tilt angle range: -15 – 15°
PTZ control: Yes
Video
HD type: 4K Ultra HD
Optical zoom: 5x
Digital zoom: 3x
Supported video modes: 720p,900p,1440p,2160p
Maximum frame rate: 30 fps
Audio
Built-in speaker(s): Yes
Output level: 90/99 dB
Output voltage Total Harmonic Distortion (THD): 2%
Microphone pick-up range: 4.5 m
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
Microphone in: Yes
Interface module
Interface module HDMI ports quantity: 3
Interface module HDMI input ports quantity: 1
Interface module HDMI output ports quantity: 2
Interface module Ethernet LAN (RJ-45) ports: 1
Network
Ethernet LAN: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Wi-Fi: Yes
Wi-Fi standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Security algorithms: 192-bit AES
Camera
Field of view (FOV) angle: 90°
Horizontal field of view: 82.1°
Remote control interface: Bluetooth
Microphone
Microphone sensitivity: -36 dB
Microphone frequency: 90 – 16000 Hz
Number of microphones: 6
