PERFECT FOR LARGER ROOMS

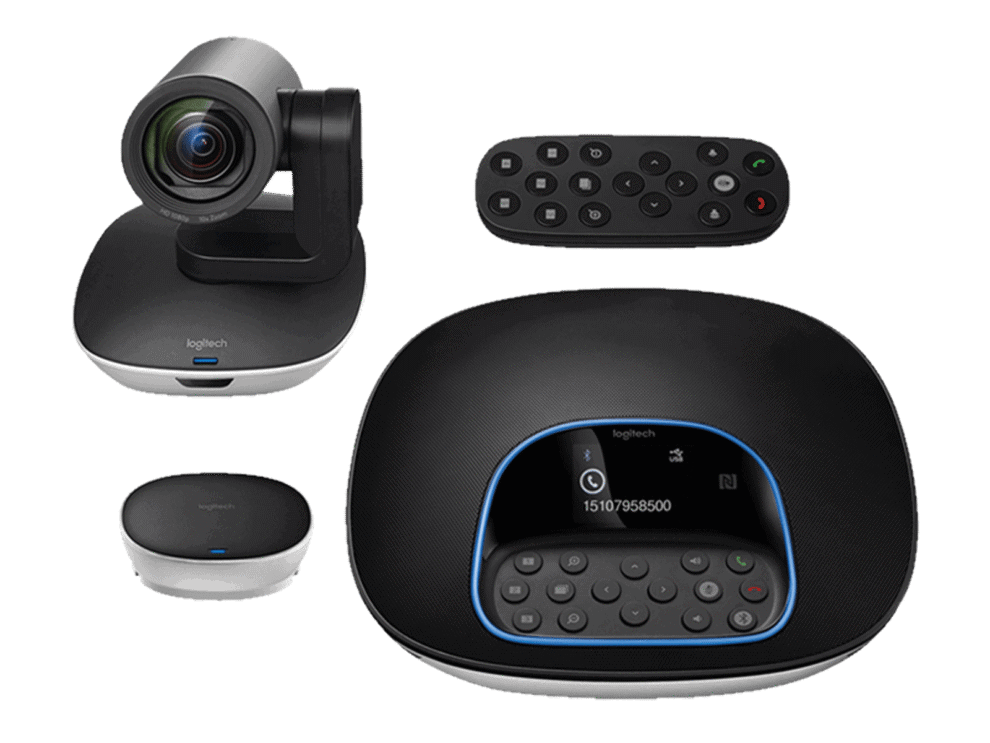

GROUP, our video conferencing solution for rooms that seat 14–20 people, delivers high quality HD video and crystal clear audio, allowing any meeting place to be a video conferencing space. With advanced features like acoustic echo cancellation, noise reduction technology, and intuitive controls, it’s easier than ever to include everyone in the conversation.
Dimensions
Camera:
Height x Width x Depth: 130 mm x 170 mm x 138 mm
Weight: 585 g
Speakerphone:
Height x Width x Depth: 240 mm x 65 mm x 240 mm
Weight: 1223 g
Hub:
Height x Width x Depth: 94 mm x 34 mm x 74 mm
Weight: 83 g
Remote:
Height x Width x Depth: 50 mm x 120 mm x 12 mm
Weight: 51 g
Wall/Table Mount:
Height x Width x Depth: 210 mm x 120 mm x 99 mm
Weight: 255 g
Expansion Mics (Optional):
Height x Width x Depth: 83 mm x 83 mm x 21 mm
Weight: 230 g
System Requirements
Windows® 7, 8.1 or 10
macOS 10.10 or higher
Technical Specifications
CAMERA
Smooth motorized pan, tilt and zoom controlled from remote or console
Pan +/- 90°
Tilt +35° / -45
10x lossless HD zoom
Field of View:
Diagonal: 90°
Horizontal: 82.1°
Vertical: 52.2°
Full HD 1080p 30fps
H.264 UVC 1.5 with Scalable Video Coding (SVC)
Autofocus
5 camera presets
Far-end control (PTZ) of ConferenceCam product (with supported services)
Kensington security slot
Video mute/unmute LED indicator
Standard tripod thread
REMOTE CONTROL
Camera, speakerphone, and call control
5 camera presets
Docks on speakerphone
IR 8.5 m
CR2032 battery (included)
SPEAKERPHONE
Full-duplex performance
Acoustic echo cancellation
Noise reduction technology
Ultra-wideband audio
Pairs with mobile devices via Bluetooth and NFC
LCD for caller ID, call duration and other functional response
LEDs for speakerphone streaming, mute, hold, and Bluetooth
Tactile buttons for call answer/end, volume and mute, Bluetooth, and camera controls
5 camera presets for pan, tilt, and zoom settings
Kensington security slot
MICROPHONES
Pickup range: 6m
Pickup range with expansion mics: 8.5 m
Four omnidirectional, beamforming microphones
Frequency response: 100Hz – 11KHz
Sensitivity: -28dB +/-3dB
Distortion: <5% from 200Hz
HUB / CABLES / POWER
Central Hub connects and powers all components
Under-table mounting adhesive included
One cable to camera: 5 m
One cable to speakerphone: 5 m
Extended cables available (10 m and 15 m)
One USB cable for connection to PC/Mac (2 m)
AC Power adapter with regional plugs
Power cable (3 m)
MOUNT
Dual-purpose bracket works for both wall mounting and tabletop elevation
COMPATIBILITY AND CERTIFICATIONS
Plug-and-play USB connectivity
Certified for Skype for Business and ready for Teams
Zoom Certified
Fuze Certified
Compatible with Google Meet
Microsoft Cortana®
Cisco Jabber®
Compatible with BlueJeans, BroadSoft, GoToMeeting, Vidyo, and other video conferencing, recording, and broadcasting applications that support USB cameras
