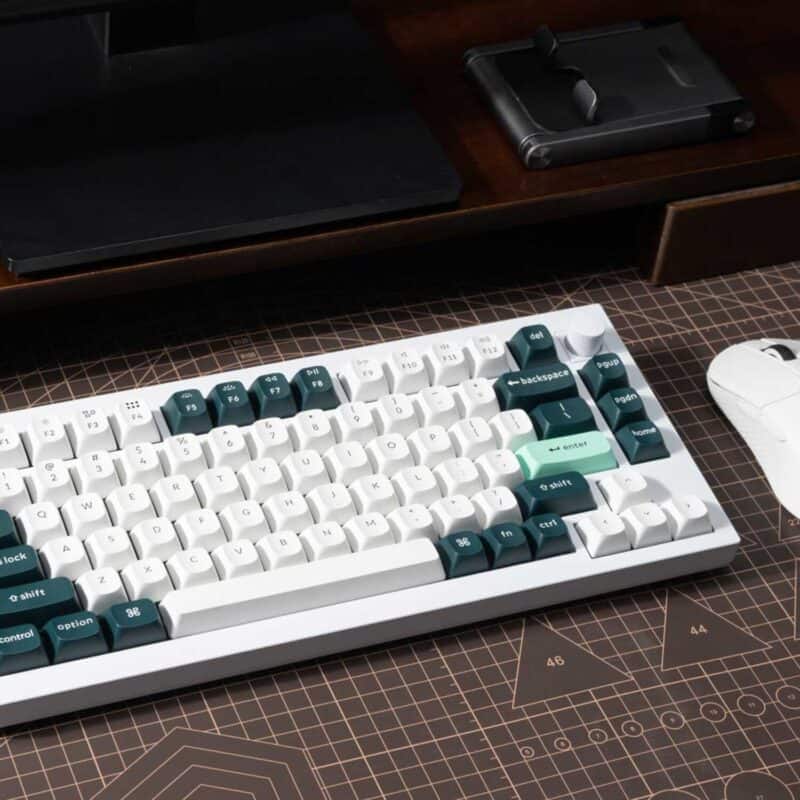

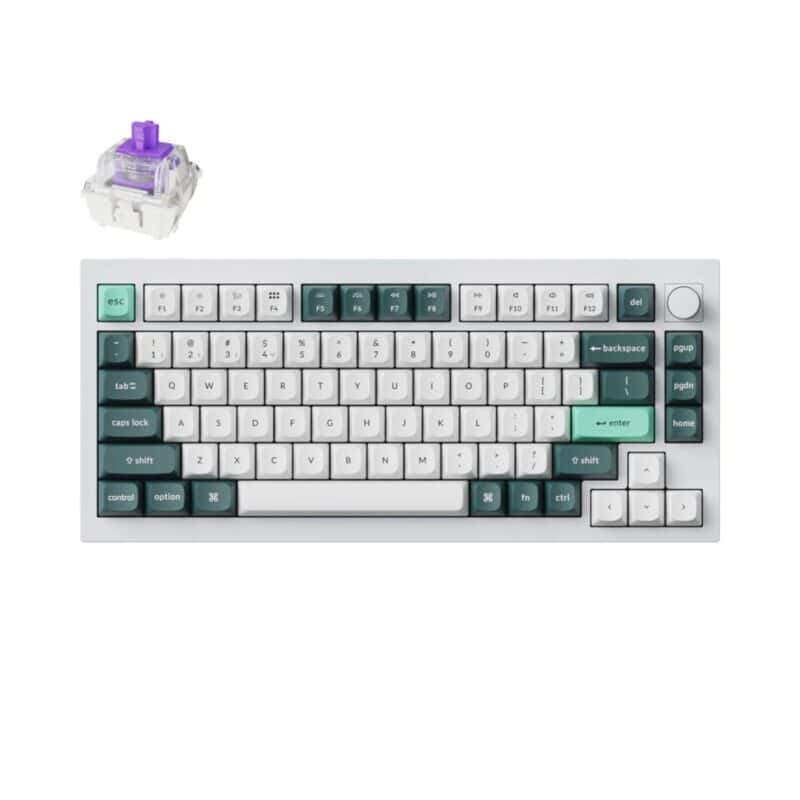

Engineered for professional creators, gamers, and productivity power users, the Keychron Q1H-P1 QMK Wireless Custom Keyboard delivers a breakthrough in responsive performance and customisability. Integrating rapid Hall Effect magnetic switches, this cutting-edge keyboard redefines speed, precision, and tactile feedback. It supports dynamic actuation, rapid trigger capabilities, and unparalleled keymapping flexibility, making it ideal for competitive gamers and advanced typists alike.
Crafted from premium CNC-machined aluminium, the Keychron Q1H-P1 QMK Wireless Custom Keyboard combines structural integrity with a refined aesthetic, offering an optimised typing experience through its double-gasket design. Whether in the office or on the go, users benefit from seamless connectivity via Bluetooth 5.1, 2.4GHz wireless, or wired Type-C, ensuring ultra-low latency in every scenario. With QMK/VIA support, users can tailor every key to their exact workflow—an essential feature for developers, creatives, and streamers seeking granular control.
Hot-swappable switches, south-facing RGB lighting, and a fully programmable layout empower users to adapt the keyboard to their unique preferences. Moreover, compatibility across macOS, Windows, and Linux ensures this peripheral integrates smoothly into any tech ecosystem. Designed for high-performance versatility, the Keychron Q1H-P1 QMK Wireless Custom Keyboard is more than a keyboard—it’s a command centre for those who demand the best in speed, personalisation, and design.
FEATURES:

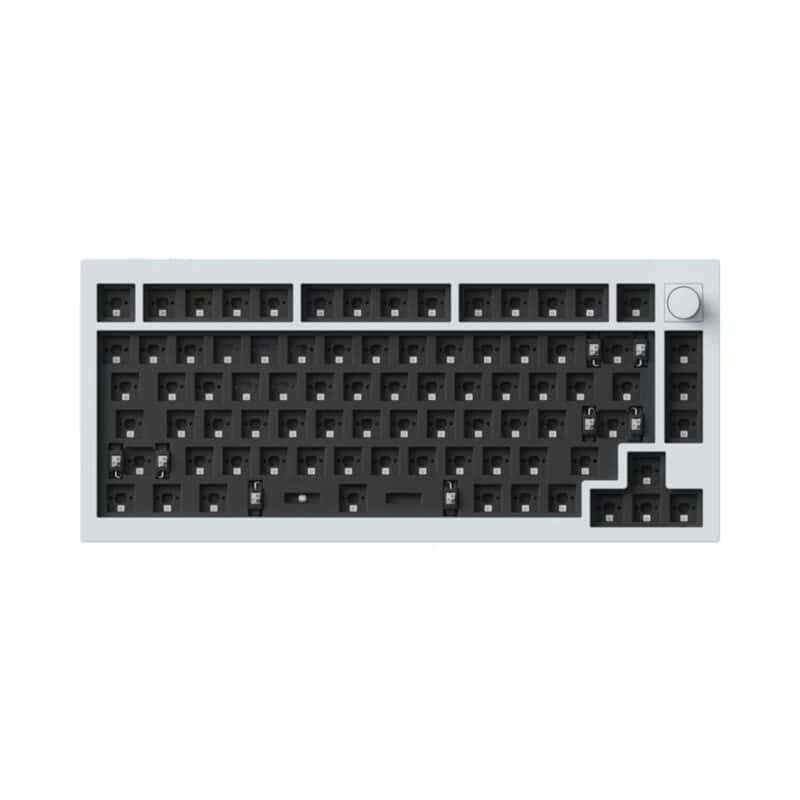

- Hot-swappable key switches
- South-facing RGB backlighting
- Rapid trigger technology enables ultra-precise, real-time input registration with minimal latency
- QMK/VIA support across macOS, Windows, and Linux systems
- Tri-mode connectivity between Bluetooth 5.1, 2.4GHz wireless, and wired Type-C modes
- CNC-machined aluminium body offers durability and style
- Double-gasket mount design enhances typing comfort with a softer keystroke feel
- Per-key customisation: Actuation distance, dual-stage inputs, and personalise performance profiles

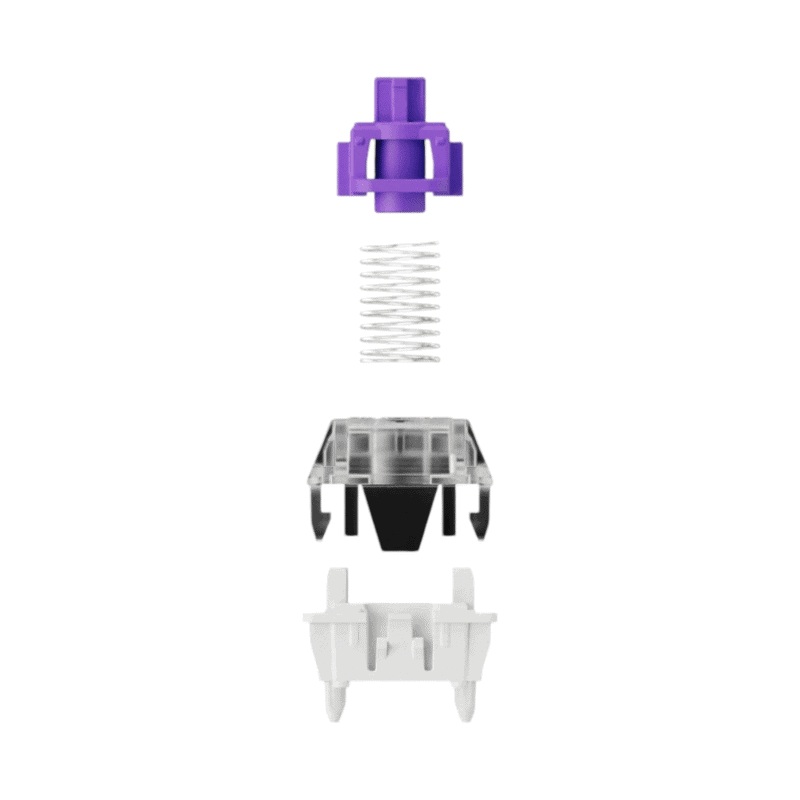

- Magnetic hall effect switches provide fast actuation, enhanced responsiveness and adjustable trigger points
- Functions seamlessly across macOS, Windows, and Linux
SPECIFICATIONS:
- Width: 145 mm
- Length: 327.5 mm
- Front Height: 22.6 mm (without keycaps)
- Back Height: 35.8 mm (without keycaps)
- Feet Height: 2.4 mm
- Angle: 5.2°
- Weight: 1735 g ± 10 g (Fully Assembled version)
- Body Material: Aluminium
- Plate Material: Aluminium
- Polling Rate: 1000 Hz (Wired and 2.4 GHz) / 90Hz (Bluetooth)
- N-Key Rollover (NKRO): Yes for both wireless and wired modes
- Rapid Trigger: Yes
- Adjustable Actuation Points: 0.2 – 3.8 mm
- Dynamic Keystrokes: 4-in-1 action keys
- Sensitivity: 0.1 mm
- Keycap: OSA Double-shot keycaps, not shine-through
- MCU: ARM Cortex-M4 32-bit STM32F402 (256KB Flash)
- Backlight: South-facing RGB LED
- Switch: Gateron Jupiter Red (Fully Assembled version)
- Hot-swappable Support: Yes, compatible with Gateron double-rail magnetic switch only.
- Stabilizer: Screw-in PCB stabilizer
- Cable: Type-C cable (1.8 m) + Type-A to Type-C adapter
- Connectivity: 2.4 GHz / Bluetooth / Type-C wired
- Bluetooth Version: 5.1
- Bluetooth Device Name: Keychron Q1 HE
- Battery: 4000mAh rechargeable Li-polymer battery
- Operating Environment: -10 to 50℃
- Wireless Working Time (Backlit off): Up to 100 hours
WHAT’S IN THE BOX:
- Keychron Q1H-P1 QMK Wireless Custom Keyboard – White x1
