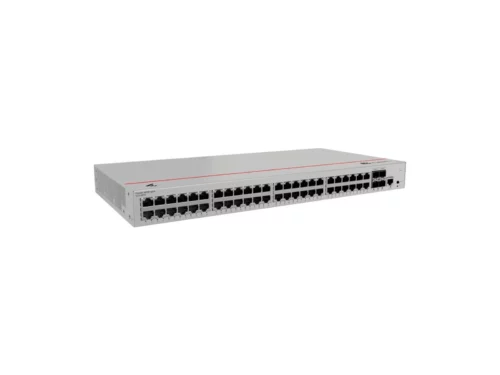

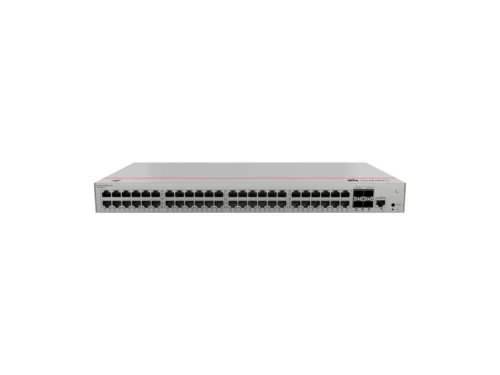

Introducing the Huawei Switch S220-48P4S, a stellar device in network management, offering a sublime balance of high-performance features and reliable connectivity. With the S220-48P4S model, your network will experience a seamless operation that is both smooth and efficient, catering to the demanding needs of modern businesses.

Equipped with 48 Gigabit Ethernet (GE) ports, this switch is a powerhouse that provides a high-density of connections. It’s an ideal solution for growing enterprises requiring a vast array of connections for devices like workstations, IP cameras, and VoIP phones, ensuring that your operations are interconnected with a steadfast network backbone.

The S220-48P4S isn’t just robust in its connectivity it also shines with its 4 additional SFP+ ports, which facilitate high-speed up linking capabilities. This enables lightning-fast data transfers at up to 10Gbps, perfect for businesses that demand high-bandwidth uplinks to support intensive data tasks, storage systems, and online applications.

**Specifications:**

**Downlink:** 24 x 10/100/1000BASE-T ports (400W PoE+)
**Uplink:** 4 x 10GE SFP+ ports
**Dimensions (H x W x D):** 43.6 mm x 442.0 mm x 220.0 mm

**Weight:** 2.92 kg
**Input Voltage:** (AC: 100 V AC to 240 V AC, 50/60 Hz) (DC: 240 V DC)
**Maximum Power Consumption:** Without PoE: 44.35 W
**Maximum Power Consumption:** Full PoE Load: 485.91 W
**Operating Temp:** –5°C to +50°C (23°F to 122°F)
**Storage Temp:** –40°C to +70°C (–40°F to +158°F)
**Operating Humidity:** 5% RH to 95% RH (non-condensing)
**Working Modes:** Standard mode, port isolation, port bonding, flow control disabling
**Heat Dissipation Mode:** Fanless, natural heat dissipation, intelligent fan speed adjustment
**Fan Modules:** 2 built-in
**Power Supply Mode:** AC built-in
**Memory:** 2 GB RAM
**Flash Memory:** 1 GB
**Console Port:** RJ45
**Service Port Surge Protection:** ±7 kV (common mode)
**Power Supply Surge Protection:** ±6 kV (differential mode and common mode)
**Ingress Protection Level:** IP20
