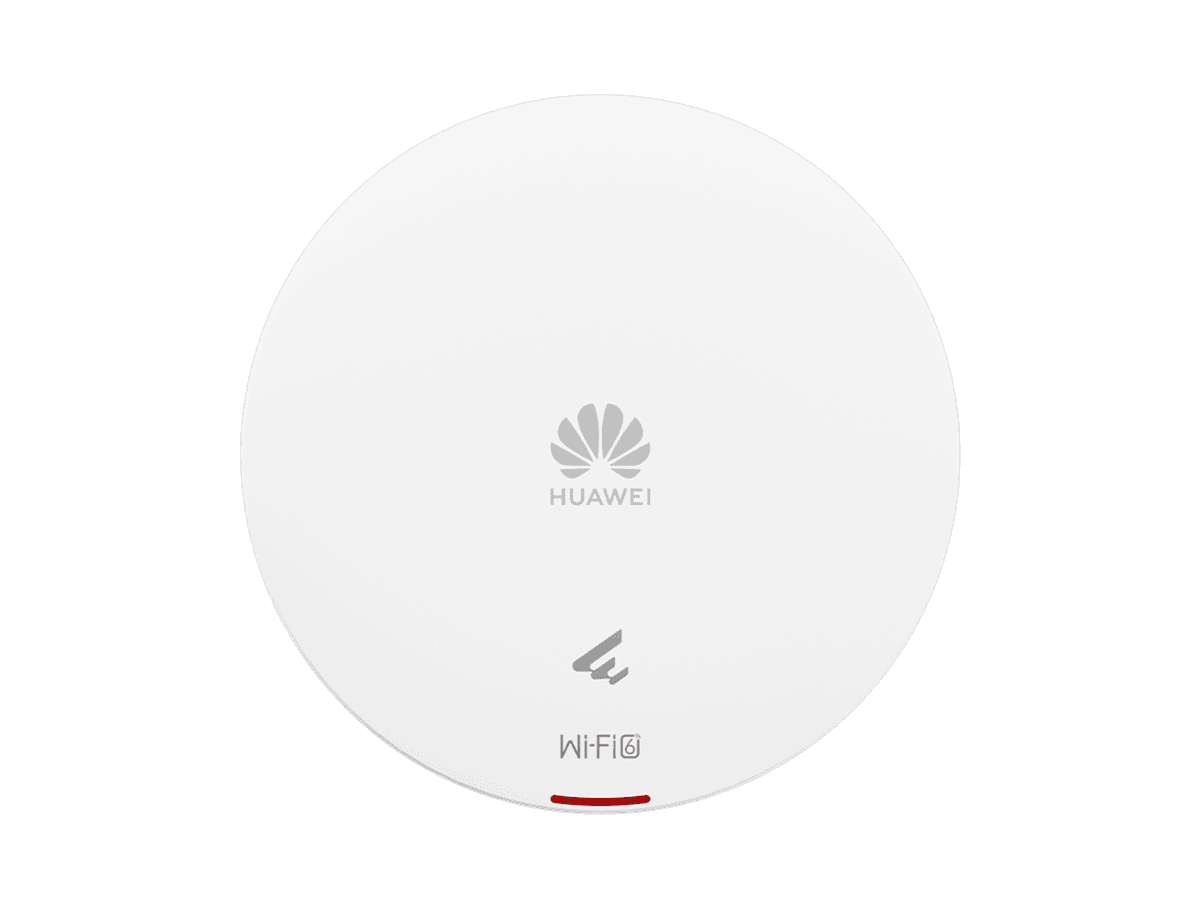

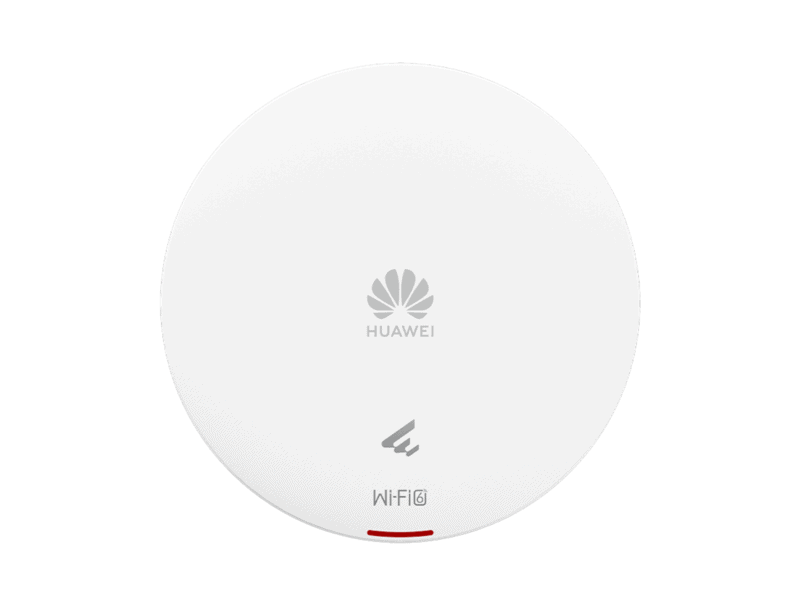

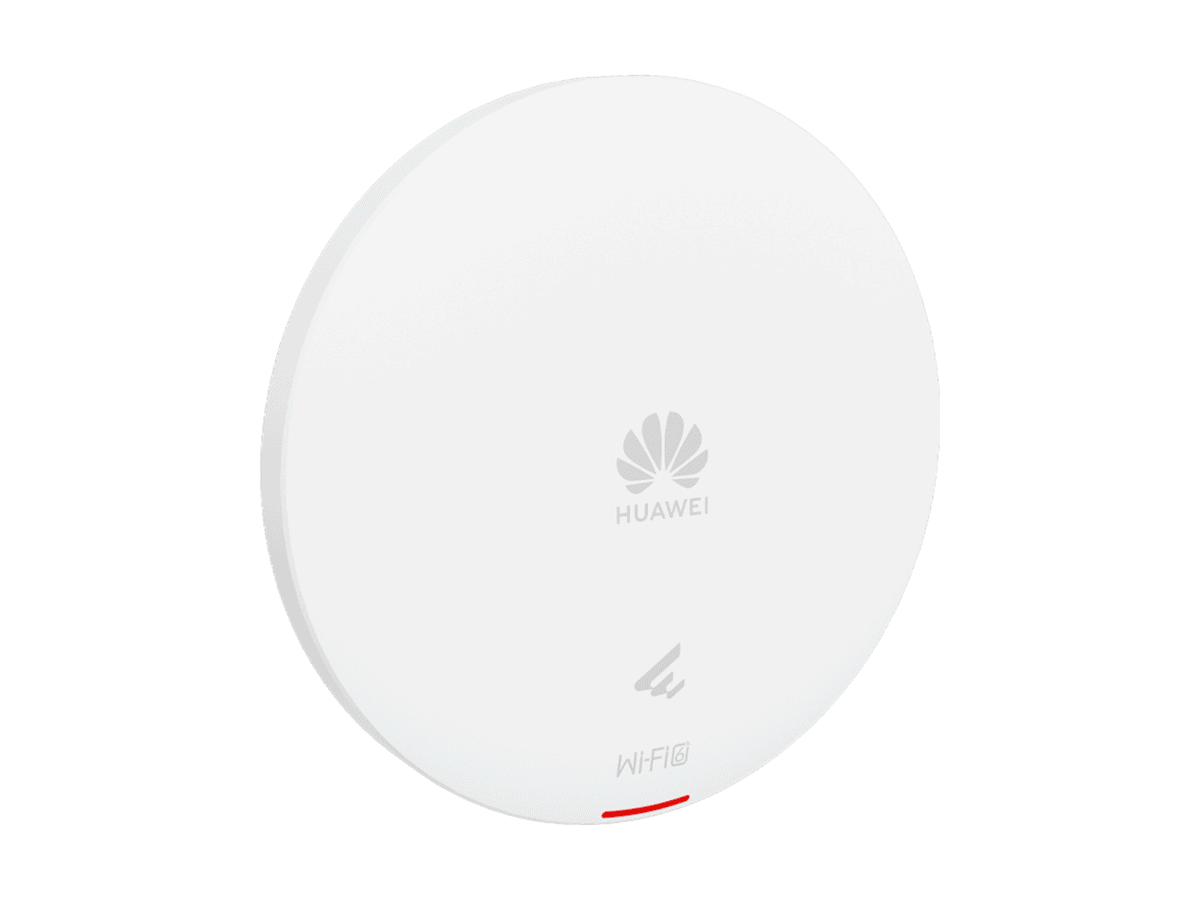

The Huawei eKitEngine AP361 is an indoor Wi-Fi 6 (802.11ax) Access Point. It offers simultaneous dual-band connectivity (2.4 GHz 2×2 + 5 GHz 2×2) with high bandwidth and concurrency in a compact design, making it ideal for flexible deployment in small to medium-sized enterprise offices, clinics, hotels, and schools.Features:•Wi-Fi 6 (802.11ax): Supports the latest Wi-Fi standard.•Dual-Band Concurrent: 2.4 GHz (2×2 MIMO) + 5 GHz (2×2 MIMO).•High Bandwidth & Concurrency: Designed for efficient performance.•Compact Size: Allows for flexible and easy deployment.•Cloud Management: Supports management via Huawei’s cloud platform.Benefits:•Improved Wireless Performance: Delivers faster speeds and better capacity compared to older Wi-Fi standards.•Reliable Connectivity: Suitable for environments with multiple wireless devices.•Cost-Effective: Saves customer investment through efficient design.•Flexible Deployment: Easily installable in various indoor scenarios.
| Power supply mode | PoE |
| Input voltage range [V] | PoE: 802.3af |
| Service port surge protection | PoE port: Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion B Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B |

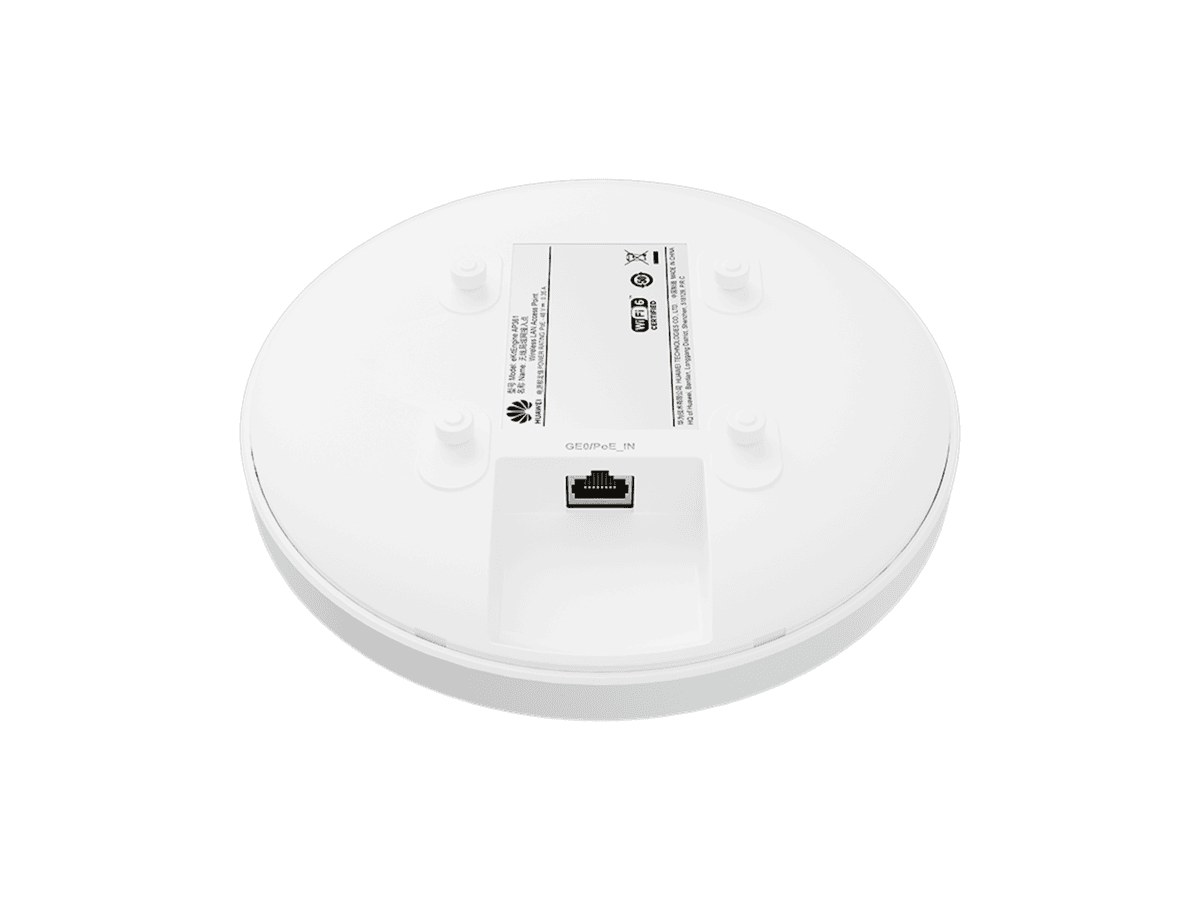

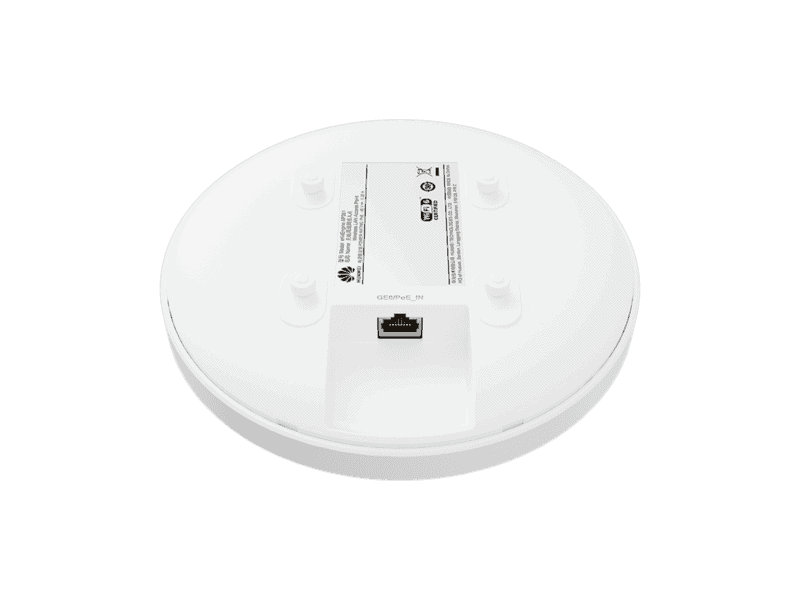

| Maximum number of physical ports on the entire device | GE (RJ45) x 1, 10M/100M/1000M auto-sensing |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa – 106kPa ETSI 300 019-2-3 |
| Ground | floating ground |
| Radio number | 2 |
| MIMO spatial streams | Radio 0 (2.4 GHz): 2×2 Radio 1 (5 GHz): 2×2 |
| Wi-Fi standard | 2.4G: 802.11b/g/n/ax 5G: 802.11a/n/ac/ac Wave 2/ax |
| Radio interface | Built-in smart antennas |
| Antenna gain | 2.4G: 4 dBi/chain (peak) 2 dBi (combined gain) 5G: 5 dBi/chain (peak value) 3 dBi (combined gain) |
| Maximum transmit power | 2.4G: 17 dBm/chain 20 dBm (combined power) 5G: 17 dBm/chain 20 dBm (combined power) |
| Operating frequency band | 2.4GHz,5GHz |
