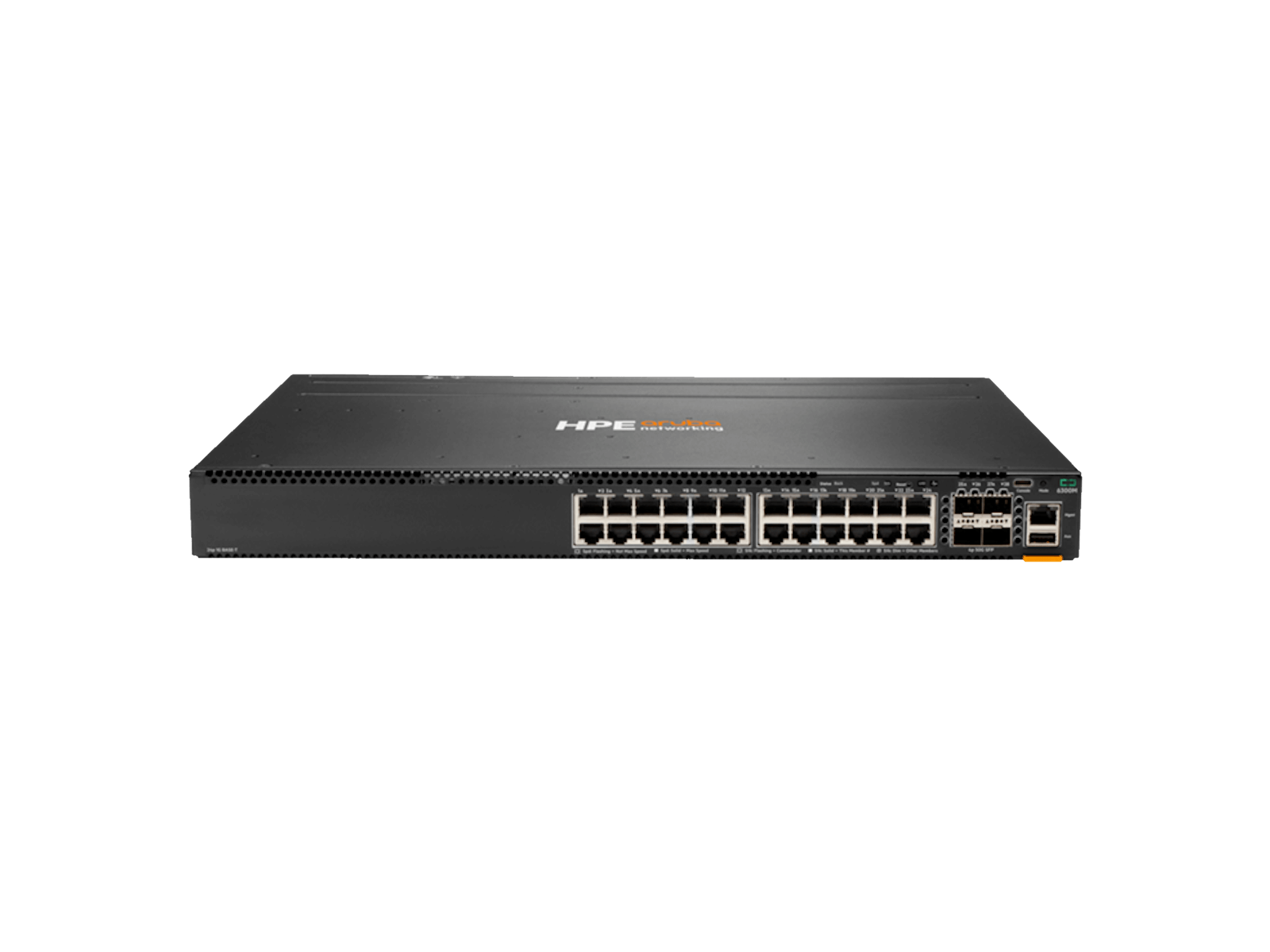

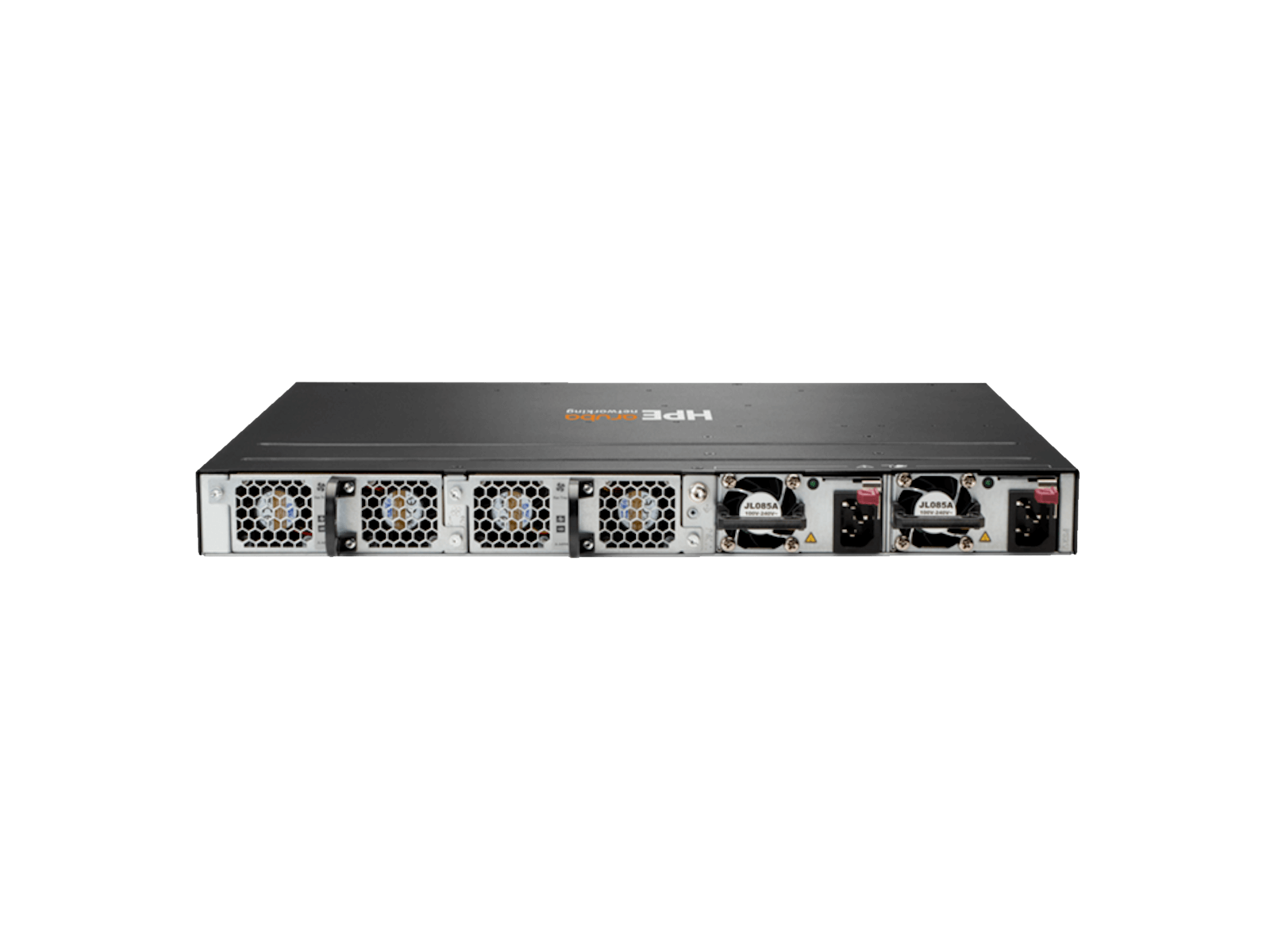

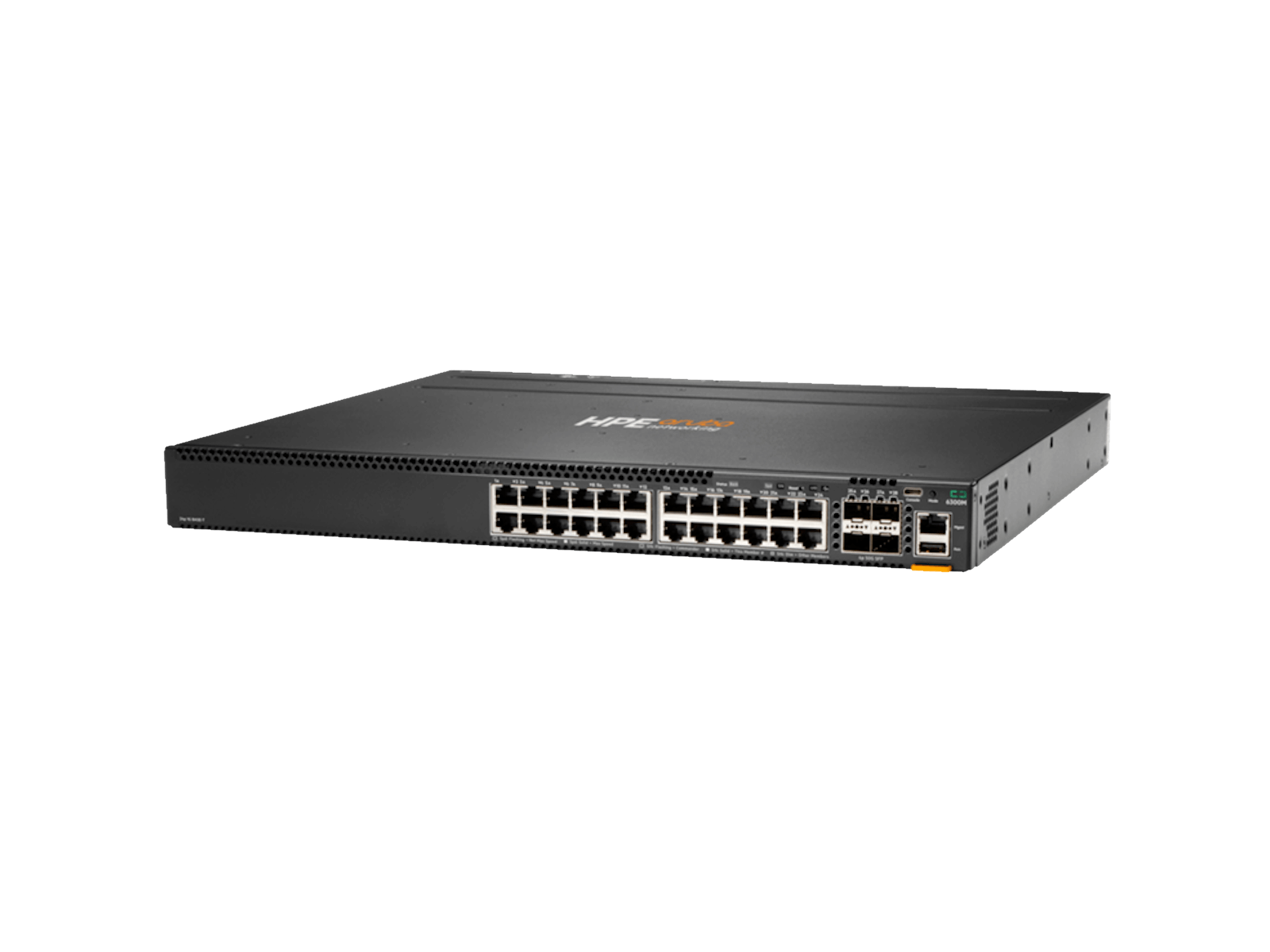

HP Aruba CX 6300M 24‑port 1GbE and 4‑port SFP56 Switch

Input voltageJL085A PSU: 100V‑240V

Ports24-port 10/100/1000 BaseT ports;

4x 1G/10G/25G/50G* SFP ports;

1x USB‑C Console Port;
1x OOBM port;
1x USB Type A Host port

Notes:
*50G capability is for use with 50G DACs for both interconnect and VSF stacking. 50G transceivers and DACs are not supported on S0E91A and S0X44A switch models, which requires QSFP to SFP56 DAC cable for VSF stacking with other CX 6300F and CX 6300M switch models only. VSF stacking not supported on 1G ports.

Latency1Gbps: 2.28μSec,
10Gbps: 1.46μSec,
25Gbps: 1.90μSec,
50Gbps: 3.49μSec

Switching capacity448 Gbps

Stacking capabilitiesUp to 10 switches per stack

NOTE: CX 6300L switches only stack with other CX 6300L switches

Throughput334 Mpps
