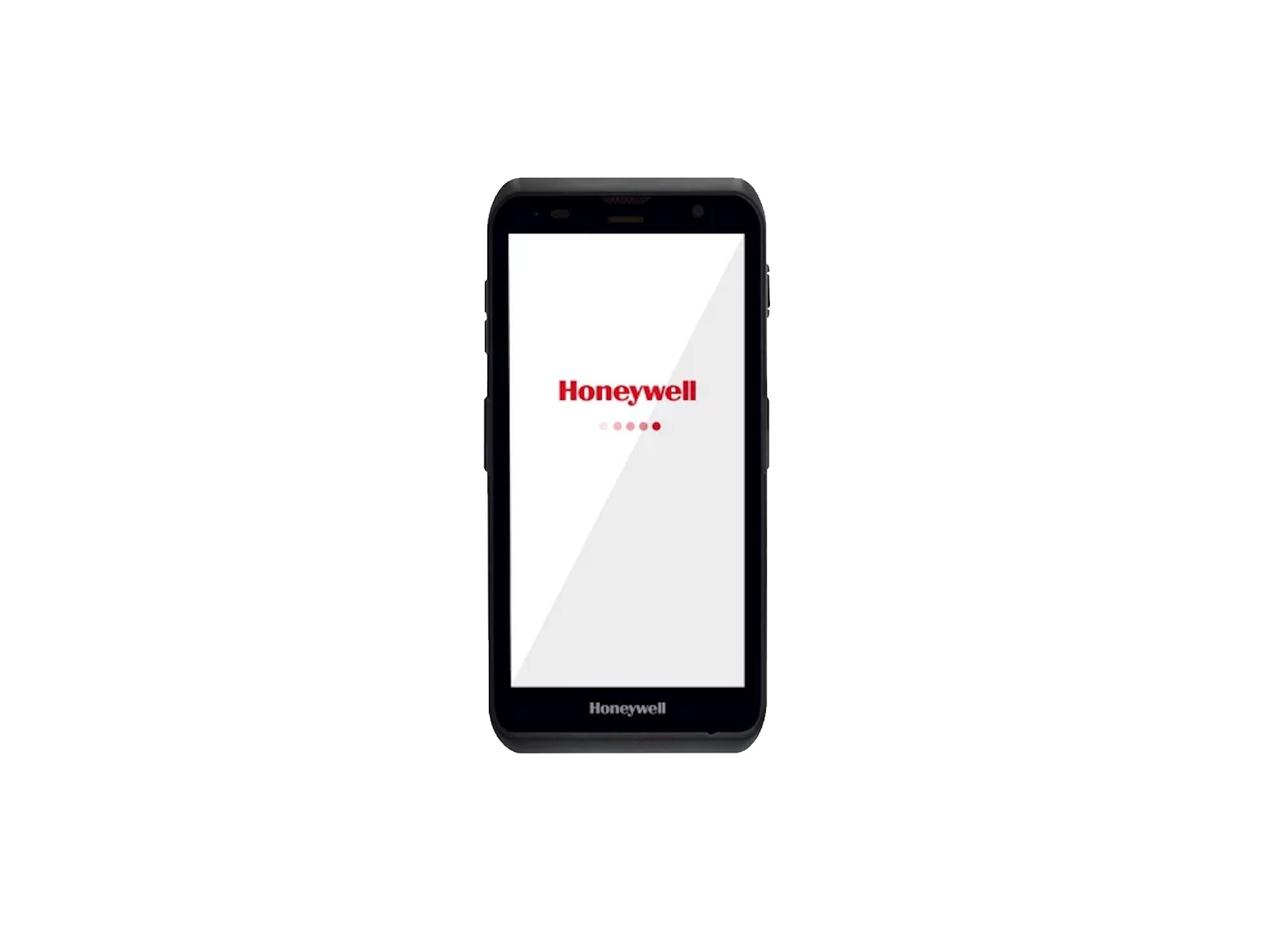

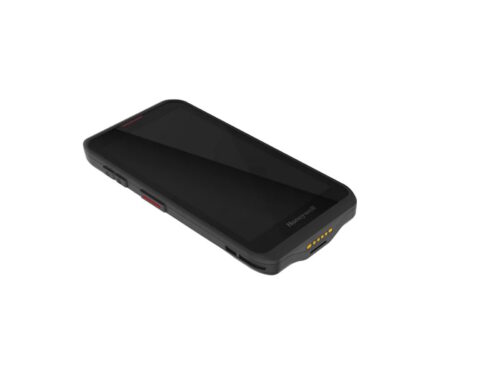

Honeywell EDA52 Handheld Computer

Application:
Retail, transportation & logistics, manufacturing, healthcare, and public service

Camera Position:
Front and Rear

159mm x 75 mm x 14.4 mm (6.26 in x 2.95 in x 0.57 in)

Honeywell S0703 Slim Imager (1D/2D barcode symbologies)

WWAN Specifications:
FDD-LTE: Bands 1, 2, 3, 4, 5, 7, 8, 9, 12,13,17,19,20,25,26,28,30,66
GSM/EDGE: Bands 2, 3, 5, 8
TDD-LTE: Bands 38, 39, 40, 41
UMTS/HSPA+: Bands 1, 2, 4, 5, 6,8, 9, 19

WLAN Specifications:
Additional WLAN Features: 802.11 d/e/h/i/k/ r/u/w
Security: OPEN, WEP, WPA/WPA2 (Personal and Enterprise WPA2),
WPA3 (OWE ,SAE, Enterprise)
WLAN (Wi-Fi Alliance certified): 802.11 a/b/g/n/ac
WLAN Supported EAP: TLS, PEAP, TTLS, PWD, LEAP

GPS Specifications:
GPS (WWAN only) Supported Protocols: Simultaneous receiver support for GPS, GLONASS, and Bei Dou

Android 11, and upgradeable to Android 13 (Android 13 is pending for the confirmation from Qualcomm & Google)

Storage Expansion: MicroSD (up to 128 GB)

Scan Engine Model:
Honeywell S0703 Slim Imager (1D/2D barcode symbology’s)

Display Size:
Gorilla Glass 5, 5.5-inch

Processor:
Qualcomm Snapdragon SM6115, Quad high-performance Kryo cores 2.0 GHz +Quad low-power Kryo cores 1.8 GHz

Battery Types:
Honeywell

Battery Type:
Li-Ion

Operating Humidity:
5% to 90% (non-condensing)

Drop Specifications:
Multiple 1.3m per MIL-STD 810G drops to concrete at room temperature
Multiple 1.5m per MIL-STD 810G drops with rubber boot concrete at room temperature

Connectivity:
Wi-Fi
Wi-Fi & Cellular

Environment:
Healthcare
Standard

Durability:
Electrostatic Discharge (ESD): ±8 kV direct; ±15 kV air
Environmental Sealing: IP67

Keypad:
Full Touchscreen
