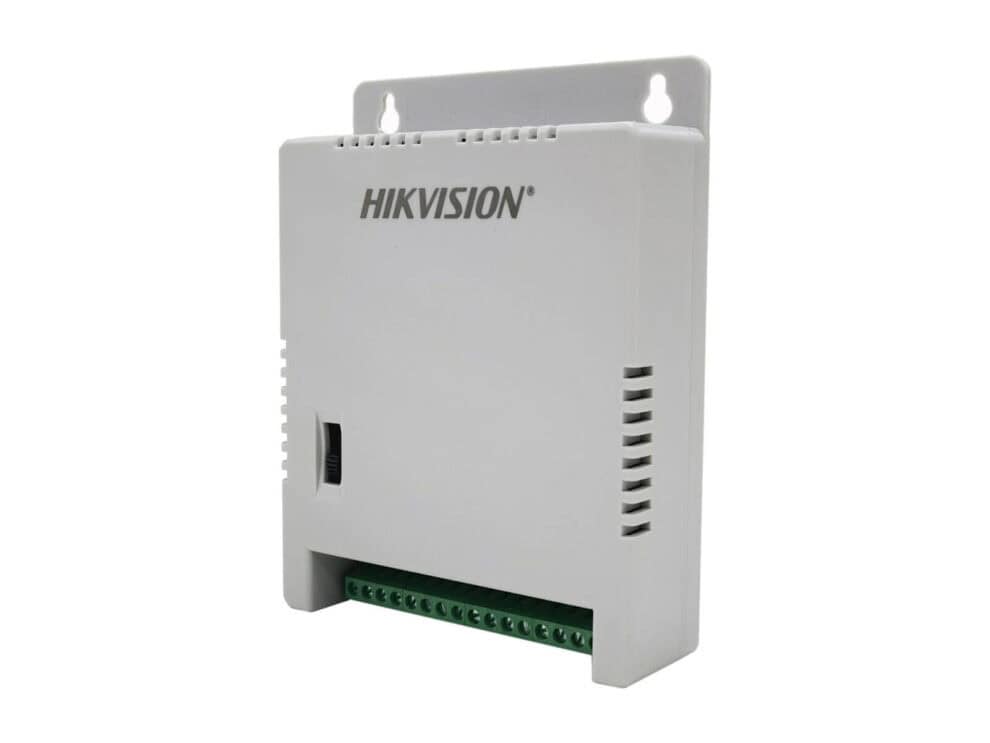

title: Hikvision Switching Mode Power Supply
date: 2024-09-02T18:40:05Z
modified: 2026-05-19T15:03:08Z
permalink: "https://tech.co.za/product/hikvision-switching-mode-power-supply/"
type: product
status: publish
excerpt: "60 W, 12 VDC/1 A max per channel, max total current is 5 A\\nOver current/short circuit/over voltage protection\\nGood EMC performance\\nCompact size; applicable to cameras\\n150 to 285 VAC wide voltage input"
wpid: 501243
product_brand:
  - Hikvision
product_type:
  - simple
product_visibility:
  - featured
product_cat:
  - Power Accessories
featured_image: "https://tech.co.za/wp-content/uploads/2024/09/DS-2FA1205-C8图.jpg"
featured_image_alt: Hikvision network connection device
---

- Parameters : Switching Mode Power Supply
- Appearance : White
- Input : 150 to 285 VAC, 47 Hz to 63 Hz
- Output : 12 VDC/1 A per channel
- Cable Length Compensation
    - Normal: 12 VDC
    - Long: 13.5 VDC
    - Ex-Long: 15 VDC
- Ripple & Noise : 0.15 Vp-p (150 mV)
- AC Input Connector : C8
- DC Output Connector : DC Plug: grid terminal
- LED Indicator : Green
- Operating Conditions : 0°C to 40°C (32°F to 104°F), Humidity: 10% to 95% (non-condensing)
- Storage Conditions : -40°C to 80°C (-40°F to 176°F), Humidity: 5% to 95% (non-condensing)
- Dimension : 144 mm × 109.5 mm × 33 mm (5.67″ × 4.31″ × 1.30″)
