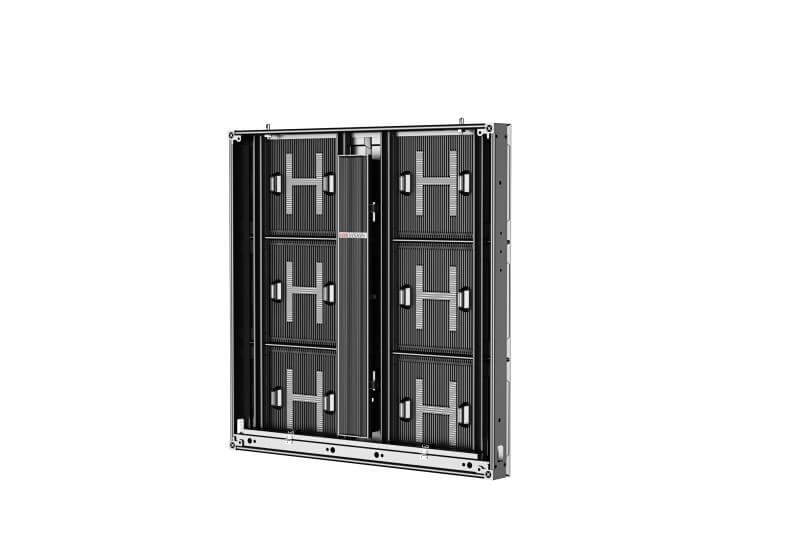

Cabinet
- Pixel Configuration SMD Triad LED
- Pixel Pitch Category P6.6
- Pixel Pitch 6.67 mm
- Modules Component Aluminum Shell
- Dimensions (W × H × D) 960 mm × 960 mm × 97 mm (37.8″ × 37.8″ × 3.82″)
- Resolution 144 × 144
- Area 0.9216
- Weight 28KG/PCS
- Pixel Density 22500 dots/m²
- Lamp Board Housing Yes
- Cabinet Material Aluminum Profile
- Maintenance Method Front/Back Maintenance
- Cabinet Flatness 0.1mm
- Protection Level IP67(F)/IP66(R)
Display
- White Balance Brightness 6000 cd/㎡
- Color Temperature 3000K-10000K
- Viewing Angle 160°（H）/80°（V）
- Contrast Ratio 8000:1
- Color Uniformity ≧95%
- Brightness Uniformity ≧95%
Processing Performance
- Driving Method Constant Current
- Frame Frequency 50/60HZ
- Refresh Rate 3840
- Grey Level 14bit
- Display Color DCI-P3＞85%
Power
- Power Supply 110-220
- Max. Consumption 580
- Average Consumption 200
Working Environment
- Working Temperature -40~+60℃
- Working Humidity 10% to 95% RH (non-condensing)
- Storage Humidity 10% to 95% RH (non-condensing)
- Storage Temperature -40~+80℃
General
- Gross Weight 190
- Package Dimensions (W × H × D) 1040mmx750mmx1130mm
- Lifespan 100000 Hours
