Parameters

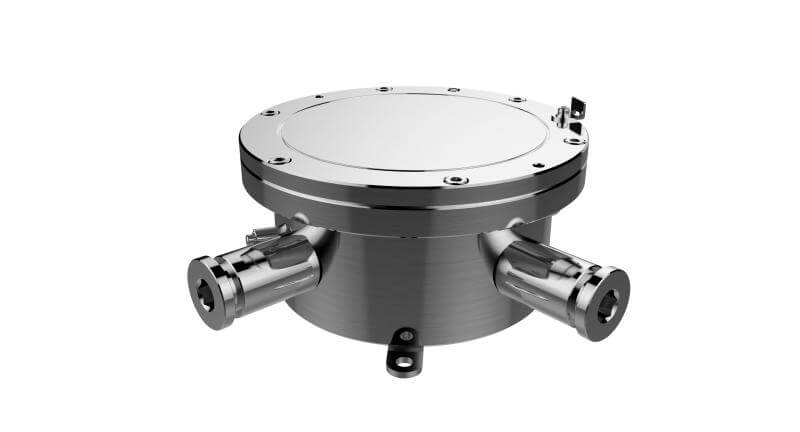

- Description Explosion-Proof Terminal Box
- Material stainless steel 304
- Dimension 272 mm × 272 mm × 96.8 mm (10.7″ × 10.7″ × 3.8″)
- Weight Approx. 6.4 kg (14.1 lb.)
- Cable Outlet 4 cable outlets, M25 × 1.5
- Operating Conditions -40°C to +60°C (-40°F to 140°F), 95%RH or less (non-condensing)
- Hazardous Area Zone 1, Zone 2, Zone 21, and Zone 22
- Ingress protection IP68
- Interface 110 to 240 VAC/24 VAC/8 to 36 VDC, CVBS, RS-485, 1 audio input, 1 audio output, 2 alarm inputs and 2 alarm outputs, RJ45 Ethernet interface (PoE 802.3 at/af supported)
- Wire Gauge No. 22 to No. 12 AWG, max. 3.294 mm2
- Applicable Device Device that uses 110 to 240 VAC/24 VAC/8 to 36 VDC/PoE (802.3 at/af) as power supply
