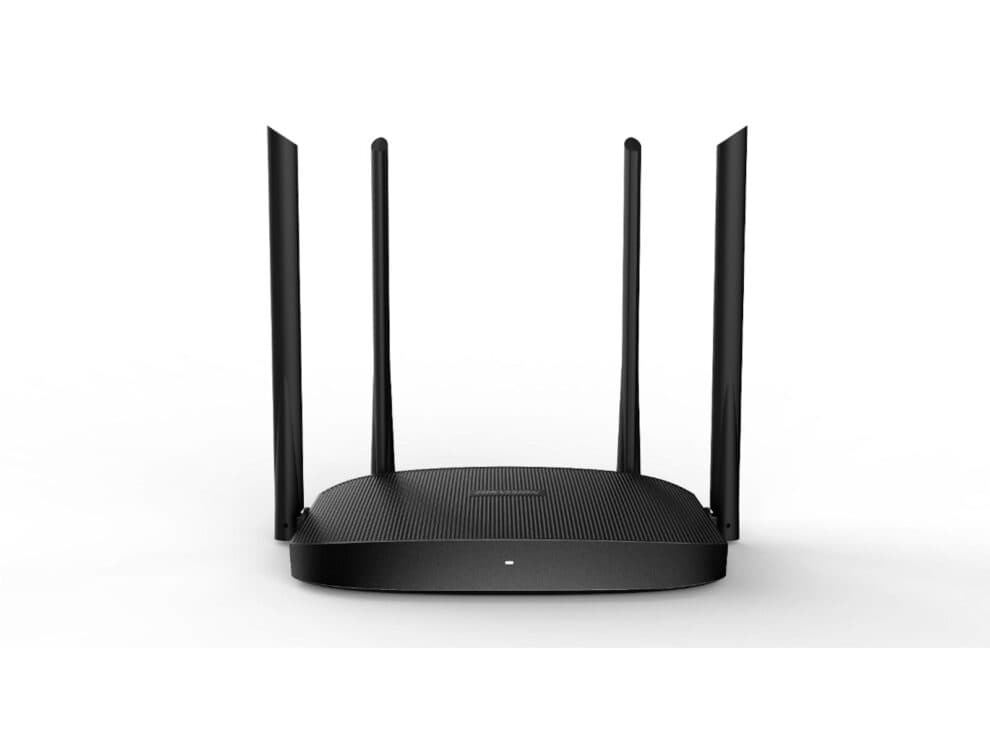

title: Hikvision DS-3WR12GC AC1200 Gigabit Port Wireless Router
date: 2026-02-06T13:23:27Z
modified: 2026-05-20T12:06:06Z
permalink: "https://tech.co.za/product/hikvision-ds-3wr12gc-ac1200-gigabit-port-wireless-router/"
type: product
status: publish
excerpt: "AC1200M Dual-band WiFi5 wireless router\\n    5GHz: 867Mbps + 2.4GHz 300Mbps\\n    3 × Gigabit LAN ports\\n    1 × Gigabit WAN port\\n    4 × 5-dBi antennas\\n    Hik-Connect App"
wpid: 570221
product_brand:
  - Hikvision
product_type:
  - simple
product_cat:
  - Networking
  - Routers
featured_image: "https://tech.co.za/wp-content/uploads/2026/02/DS-3WR12GCa.jpg"
---

| Wireless Parameter |  |
| --- | --- |
| Data Rate | ≤ 1167 Mbps 2.4 GHz: 300 Mbps 5 GHz: 867 Mbps |
| Wireless Standard | IEEE 802.11/a/n/ac wave 2 @5GHz, IEEE 802.11b/g/n @2.4GHz |
| Transmitting Power | 18 dBm |
| Wireless Performance | 4 × 4 MU-MIMO supported Beamforming supported |
| Receiving Sensitivity | 58 ± 2 dB@AC80 -MCS9 84 ± 2 dB@AC80 -MCS0 |
| Antenna | 4 high gain antennas |
| Hardware Parameter |  |

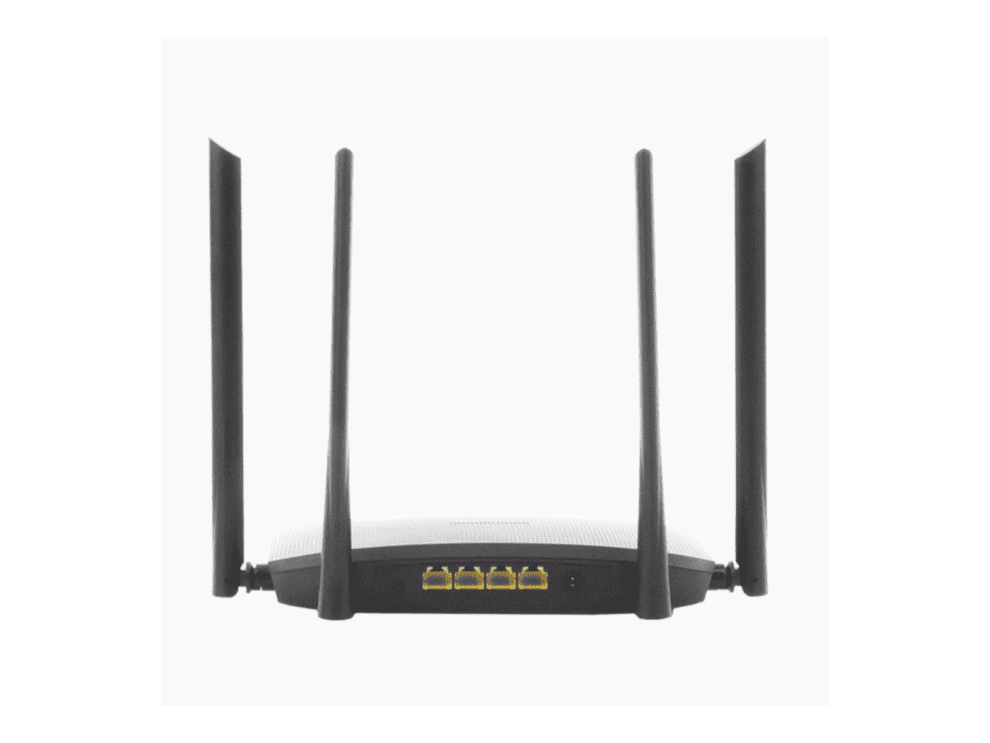

| Network Interface | 4 × RJ45, 10/100/1000 Mbps auto-negotiation |
| LED Indicator | LED indicator |
| Reset | Reset button |
| Power Supply Method | 9 VDC, 1 A power adapter power supply |
| Power Specifications | 9 VDC, 1 A |
| Software Function |  |
| Application function | Wireless Router Mode, Wireless Repeater Mode, Client + AP, WISP, and AP Mode supported DHCP Server supported Guest Network Configuration supported Signal Adjustment supported WiFi Schedule supported |
| Security Mode | WPA-PSK, WPA2-PSK, WPA and WPA2 supported |
| Security Mechanism | Hide SSID |
| Management Method | Web |
| More info: | [https://www.hikvision.com/africa/products/transmission/soho-networking/wi-fi-router/ds-3wr12gc/](https://www.hikvision.com/africa/products/transmission/soho-networking/wi-fi-router/ds-3wr12gc/) |
