title: Hikvision 4 Port Smart Managed Switch
date: 2024-09-02T16:44:22Z
modified: 2026-05-21T09:02:38Z
permalink: "https://tech.co.za/product/hikvision-4-port-smart-managed-switch/"
type: product
status: publish
excerpt: "4 × 100 Mbps PoE RJ45 ports, 1 × 100 Mbps network RJ45 port.\\nIEEE 802.3at/af standard for PoE ports.\\nNetwork topology management, alarm push, network health monitor.\\n6 KV surge protection for PoE ports.\\nAF/AT camera can reach up to 300 m in extend mode."
wpid: 501199
product_brand:
  - Hikvision
product_type:
  - simple
product_visibility:
  - featured
product_cat:
  - Networking
  - Switches
featured_image: "https://tech.co.za/wp-content/uploads/2024/09/hkv-ds-3e1105p-ei-102859.webp"

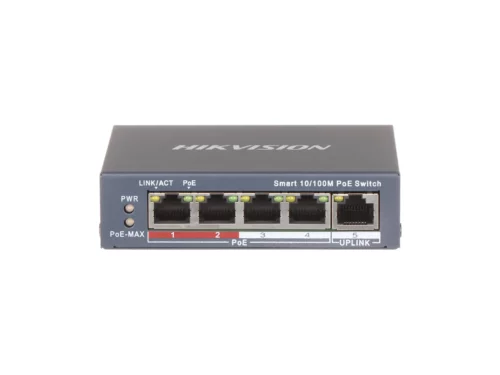

featured_image_alt: Hikvision PoE network switch with multiple ports
---

- Port number : 4 × 100 Mbps PoE RJ45 ports, and 1 × 100 Mbps network RJ45 port.
- Port type : RJ45 port, full duplex, MDI/MDI-X adaptive
- Standard : IEEE 802.3, IEEE 802.3u, and IEEE 802.3x
- Forwarding mode : Store-and-forward switching
- Working mode : Standard mode (default), Extend mode
- High priority ports : Ports 1 and 2
- Ports for long-distance transmission : Ports 1 to 4
- MAC address table : 2 K
- Switching capacity : 1 Gbps
- Packet forwarding rate : 0.744 Mpps
- Internal cache : 768 Kbits

**PoE Power Supply**

- PoE power pin : Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.
- PoE port : Ports 1 to 4
- Max. port power : 30 W
- PoE power budget : 60 W

**Software Function**

- Device maintenance : Support remote upgrade, recovering default parameters, viewing logs, configuring
- basic network parameters.
- Typology display : Support typology display.
- Port configuration : Support rate, flow control, and switch configuration
- PoE function : IEEE 802.3at/af device provides power supply.
- Device status alarm : Support the device status, PoE\_MAX and PoE status alarm.
- Network management : Support client management.
- Port statistics : Support port transmitting/receiving real-time rate statistics, 7-day transmitting/receiving
- peak rate statistics

**General**

- Shell : Metal material, fan-free design
- Net Weight : 0.22 kg (0.49 lb)
- Dimension (L × H × D) : 105 mm × 27.6 mm × 83.1 mm (4.76” × 3.47” × 1.09”)
- Operating temperature : 0°C to 40°C (32°F to 104°F)
- Storage temperature : -40°C to 85°C (-40°F to 185°F)
- Operating humidity : 5% to 95% (no condensation)
- Storage humidity : 5% to 95% (no condensation)
- Power Supply : 48 VDC, 1.35 A
- Max. power consumption : 65 W
- Power source : 65 W
