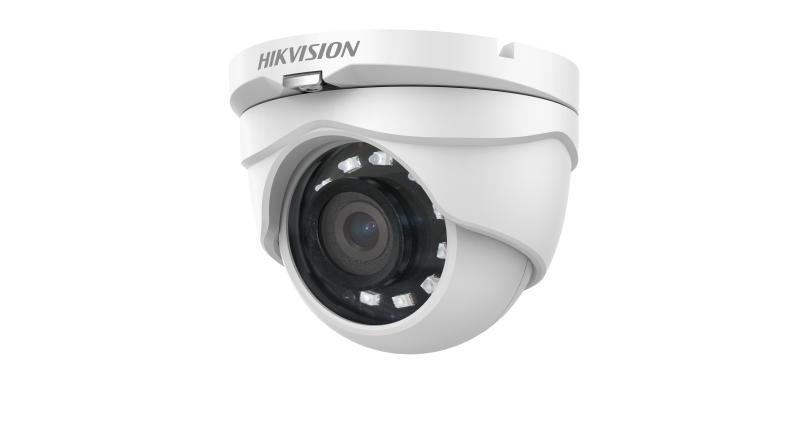

Hikvision 2 MP Fixed Turret Camera – DS-2CE56D0T-IRMF(2.8mm)(C)

Camera

• Image Sensor 2 MP CMOS
• Max. Resolution 1920 (H) × 1080 (V)
• Min. Illumination 0.01Lux @ (F2.0, AGC ON), 0 Lux with IR
• Shutter Time PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s
• Day & Night ICR
• Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
• Signal System PAL/NTSC

Lens

• Lens Type 2.8 mm fixed lens
• Focal Length & FOV 2.8 mm, horizontal FOV: 101°, vertical FOV: 60°, diagonal FOV: 122°
• Lens Mount M12


• Image Parameters Switch STD/HIGH-SAT
• Image Settings Brightness, Sharpness, Smart IR
• Frame Rate TVI: 1080P@30fps, 1080P@25fps, CVI: 1080P@30fps, 1080P@25fps, AHD: 1080P@30fps, 1080P@25fps, CVBS: PAL/NTSC
• Day/Night Mode Auto/Color/BW (Black and White)
• Wide Dynamic Range (WDR) Digital WDR
• Image Enhancement BLC, HLC
• White Balance Auto/Manual
• AGC Yes

Interface

• Video Output Switchable TVI/AHD/CVI/CVBS

General

• Material Metal
• Dimension 89.47 mm × 67.6 mm (3.52″ × 2.70″)
• Weight Approx. 250 g (0.55 lb.)
• Operating Condition ‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• Communication HIKVISION-C
• Language English
• Power Supply 12 VDC ± 25%
• Consumption Max. 3 W
• IR Range Up to 25 m

Approval

• Protection IP67
