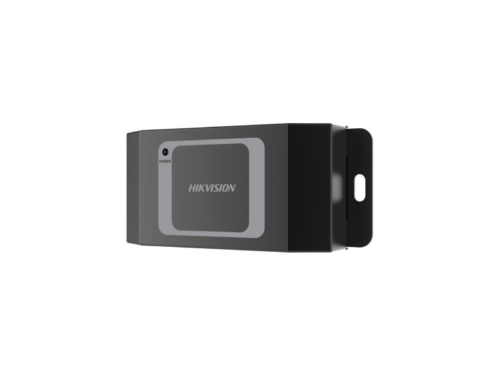

title: Hikvision Secure Door Control Module - DS-K2M061
date: 2024-09-06T19:32:30Z
modified: 2026-05-20T11:03:28Z
permalink: "https://tech.co.za/product/hikvision-secure-door-control-module-ds-k2m061/"
type: product
status: publish
excerpt: "Communicates with the access control terminal via RS-485 to execute the commands from the terminal including open door, close door, normally open and normally closed\\n\\n 	Collects the door magnetic signal, the exit button signal and the tamper-proof signal and send them to the access control terminal\\n\\n 	Supports tampering alarm\\n\\n 	Supports RS-485 communication indicators to show the communication status\\n\\n 	4-ch DIP switch supporting ID No. configuration\\n\\n 	Supports a Wiegand interface to connect a Wiegand card reader to enter/exist access control terminal by swiping card\\n\\n 	Fire interface and exit button linkage"
wpid: 504421
product_brand:
  - Hikvision
product_type:
  - simple
product_visibility:
  - featured
product_cat:
  - CCTV

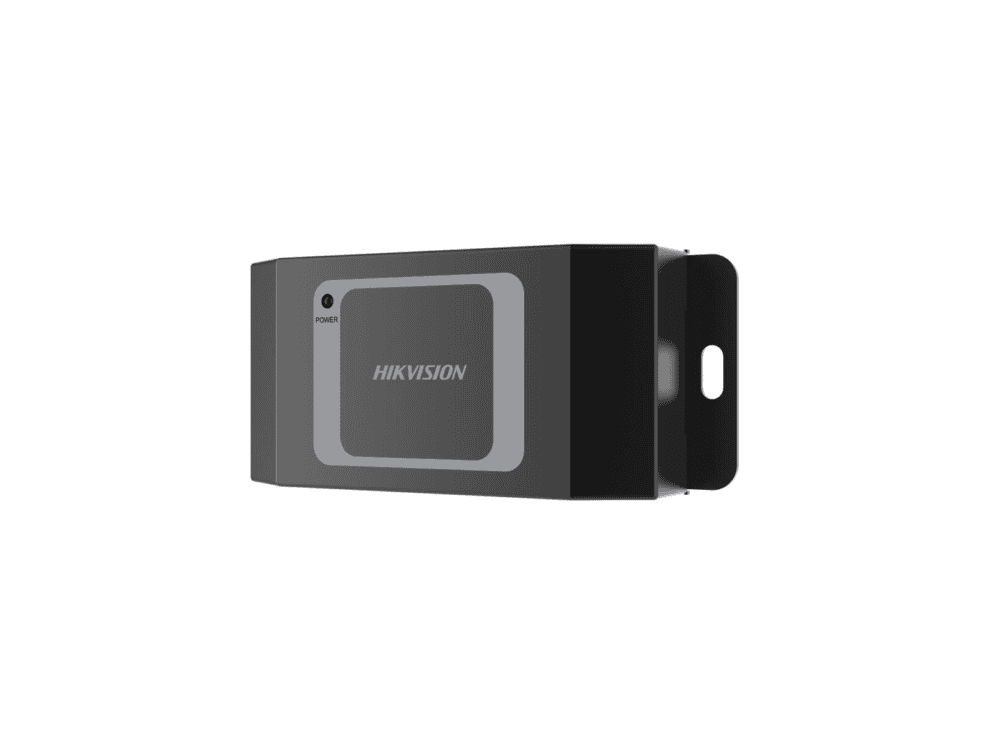

featured_image: "https://tech.co.za/wp-content/uploads/2024/09/DS-K2M061.png"
featured_image_alt: Hikvision network device
---

**Interface**

- **Lock control** 1
- **Exit button** 1
- **Door contact input** 1
- **Alarm input** 2
- **Alarm output** 1
- **RS-485** 1
- **Wiegand** 1

**General**

- **Indicator** 1 for power supply
- **Power supply** 12 VDC 0.5A
- **Working temperature** -40 °C to 70 °C
- **Working humidity** 0% to 90%
- **Dimensions** 48 mm × 115 mm × 26 mm (1.9″ × 4.5″ × 1.0″)
- **Installation** Wall Mounting
