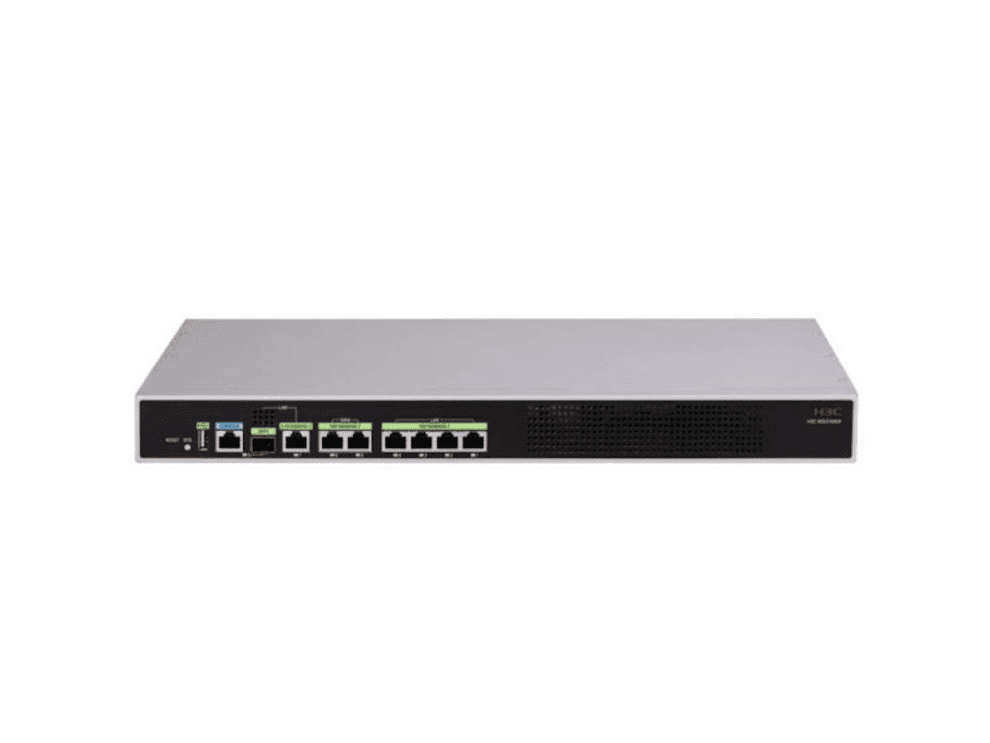

H3C Integrated Services Wireless Gateway
Provides integration of gateway, security and access control functions
Manages 64 ordinary Access Points or 128 wall access points by default
Incorporates granular user control management, comprehensive RF resource management, 7×24 wireless security control, fast layer 2 and 3 roaming, powerful QoS, and dual IPv4/IPv6 stack as standard
Incorporates wireless technologies such as multi-core control plane, Bonjour and Hotspot 2.0
Supports various network configurations, such as cloud management
When paired with an H3C SMB Access Point, serves as an ideal access control solution for SMB network WLAN access
Supports gateway functions, such as PPPOE, NAT, dynamic IP address and static IP address configuration function
802.11ax access point management
Supports both distributed forwarding mode and centralized forwarding mode, and can configure SSID-based forwarding
Supports blacklist, whitelist, rogue device defense, bad packet detection, rogue user removal, updatable signature, MAC-layer attack detection (DoS attacks, Flood attacks or man-in-the-middle attacks) and countermeasures



| Item | WSG1840X |
| --- | --- |
| Dimensions (WxDxH) | 440\*165\*43.6mm |
| Weight | 1.8kg |
| Wireless throughput | 4Gbps |
| Port | LAN：1\*SFP Plus + 4\*GE + 1\*5GE WAN：2 GE + 1\*USB |
| Power supplies | 100V AC~240V AC:50/60Hz |
| Operating and storage temperature | 0℃~45℃/-40℃~70℃ |
| Operating and storage relative humidity | 5%~95% |
| Safety Compliance | UL 60950-1 CAN/CSA C22.2 No 60950-1 IEC 60950-1 EN 60950-1/A11 AS/NZS 60950 EN 60825-1 EN 60825-2 EN60601-1-2 FDA 21 CFR Subchapter J |
| EMC | ETSI EN 300 386 V1.3.3:2005 EN 55024: 1998+ A1: 2001 + A2: 2003 EN 55022 :2006 VCCI V-3:2007 ICES-003:2004 EN 61000-3-2:2000+A1:2001+A2:2005 EN 61000-3-3:1995+A1:2001+A2:2005 AS/NZS CISPR 22:2004 FCC PART 15:2005 GB 9254:1998 GB/T 17618:1998 |
| MTBF | ≥50000hours |
| More info: | [https://www.h3c.com/en/Products\_and\_Solutions/SMB\_Products/Products/SMB\_Cloudnet/Wireless/AC/WSG1840X/](https://www.h3c.com/en/Products_and_Solutions/SMB_Products/Products/SMB_Cloudnet/Wireless/AC/WSG1840X/) |
