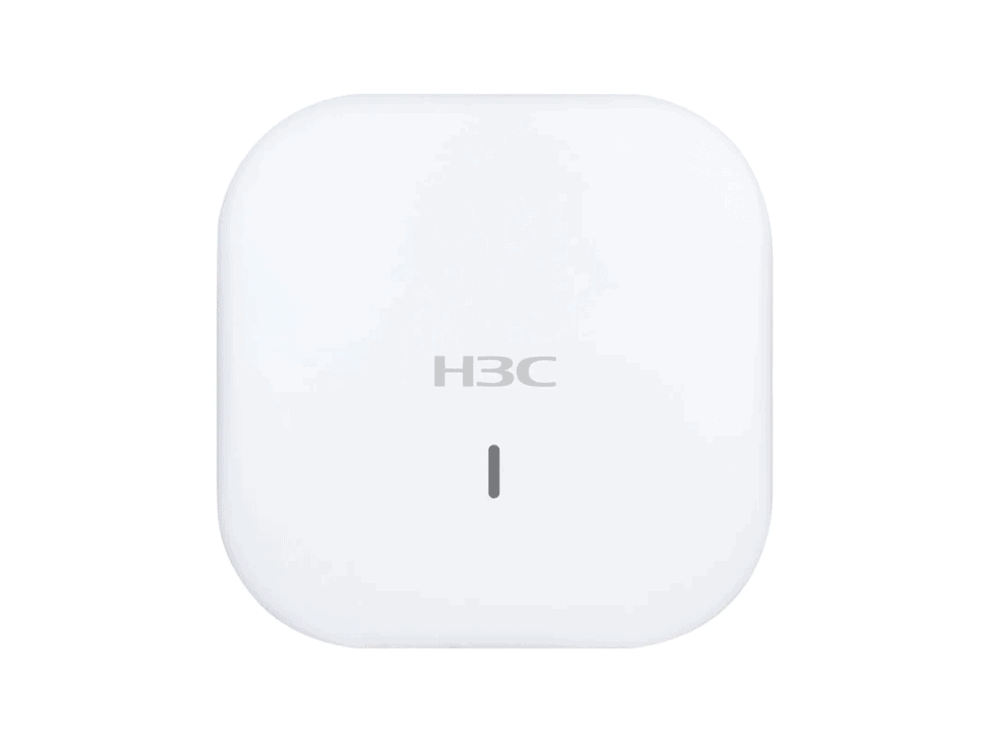

H3C WA6126 is a new generation Wi-Fi 6 product that complies with the 802.11ax standard.

The access point has dual-radio 6 streams and with built-in antenna, including 4×4 5GHz, and 2×2 2.4GHz, achieving speeds up to 5.375Gbps.

This access point supports both wall-mounted and ceiling-mounted installation and is designed for enterprise offices, retail stores, hotels, and smart enterprise campuses that require a high-quality network experience



| Weight | 1.05Kg |
| --- | --- |
| Dimensions (W × D × H) | 185mm X 185mm X 35mm |
| Interface | 1 x 100/1000M Ethernet, RJ-45, PoE input1 x 100/1000M/2.5G Ethernet, RJ-45 |
| Console port | 1 × Management console port (RJ-45) |
| PoE input | 2.5GE: 802.3at/af |
| Local power supply | 54V DC |
| Antenna Type | Built-in omni-directional antenna |
| Antenna Gain | 5GHz peak gain: 5dBi2.4GHz peak gain: 5dBi_Note: The equivalent antenna gain is 4dBi in 5GHz and 4dBi in 2.4GHz_ |
| Frequencybands | 2.400to2.4835GHzISM 5.150to5.250GHzU-NII-1 5.250to5.350GHzU-NII-2A 5.470to5.725GHzU-NII-2C 5.725to5.850GHzU-NII-3/ISM |
