Specifications
Brand: Gigabyte
Series: GP-PG Series

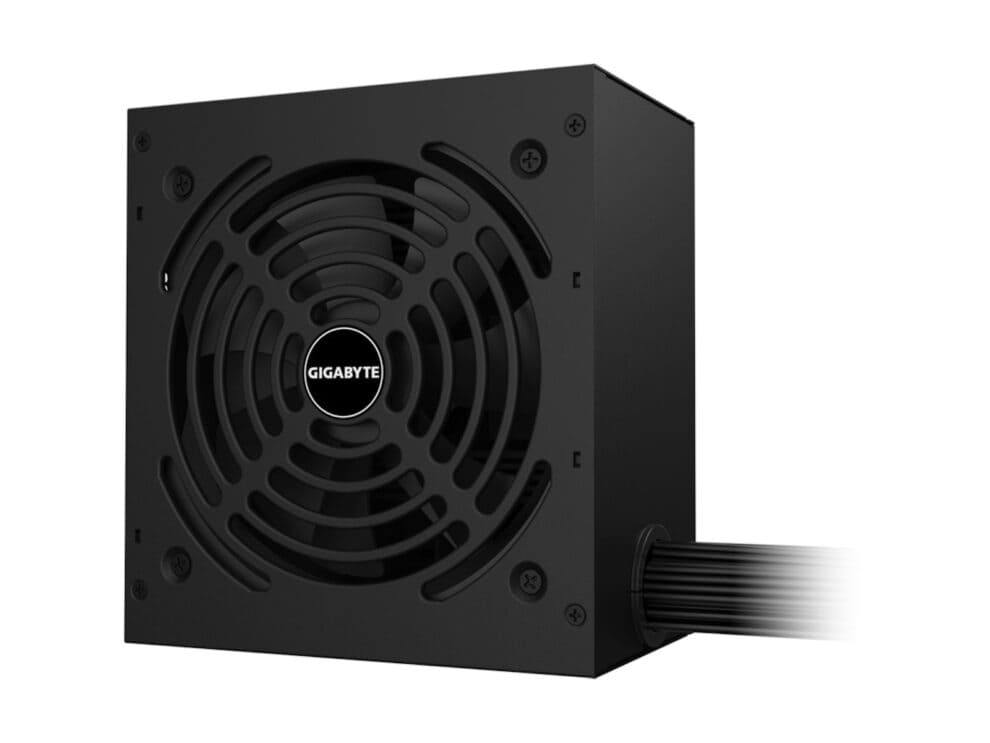

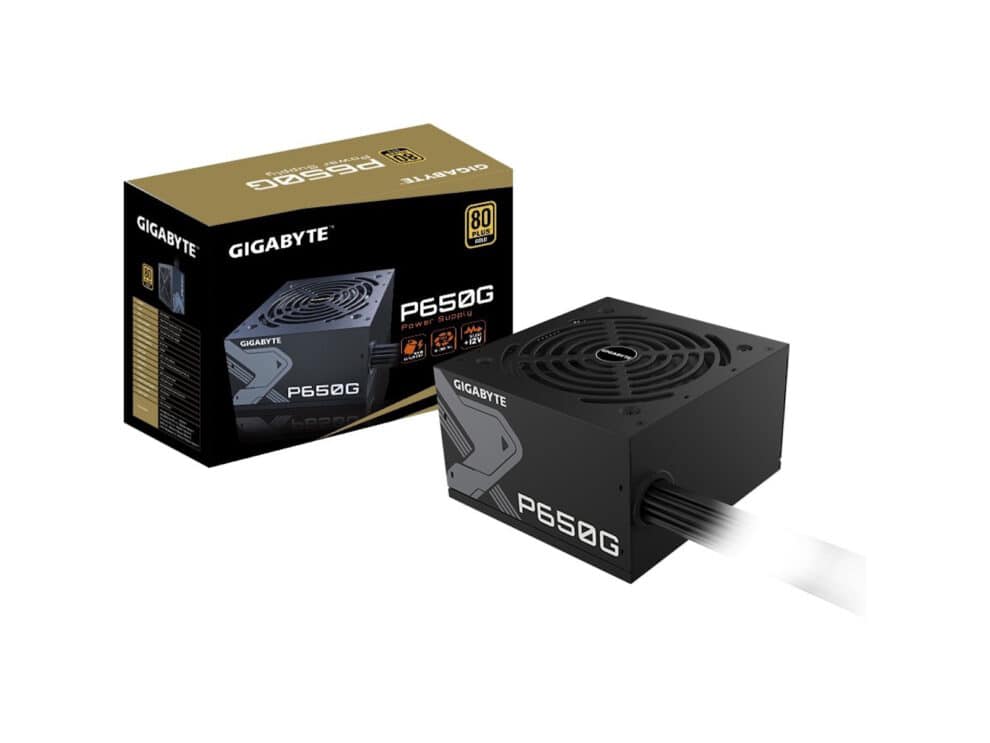

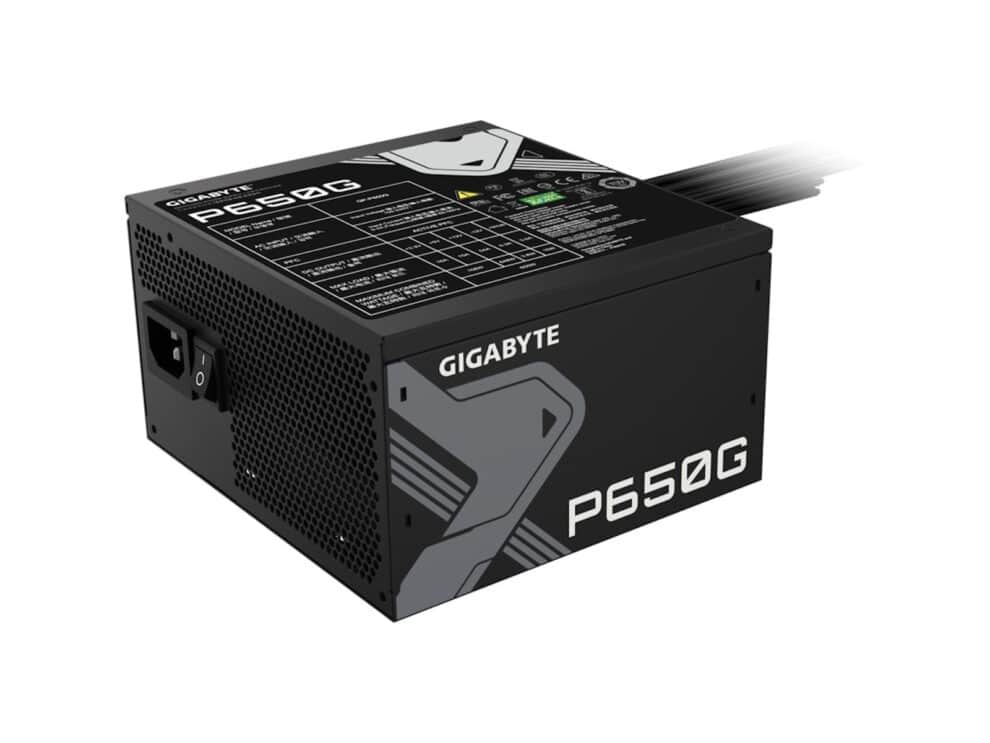

Model: GP-P650G
Maximum Power: 650W
80 Plus Efficiency
80 Plus Gold
90% at typical load
Colour: Black
Fan: 120mm Hydraulic Bearing (HYB) Fan
Modular Design: Non-Modular
Connectors
24 Pin ATX: 1x ATX/MB 20+4 Pin
EPS (CPU): 2 CPU/EPS 4+4 Pin
PCIe: 4x PCI-e 6+2 Pin
SATA: 6x SATA
Four-Pin Peripheral 3x 4 Pin Peripheral
Input
Input Voltage: 100-240 Vac(full range)
AC Input: 9A – 4A
Input Frequency Range: 60Hz – 50Hz
Output
Rail: +3.3V, +5V, +12V, -12V, +5Vsb
Max Output: 18A, 15A, 54A, 0.3A, 3A
General
MTBF: >100,000 Hours
Safety Certification: OVP, OPP, SCP, UVP, OCP, OTP
Cable Type: Flat Black Cables
Dimensions: 150mm x 140mm x 86mm
Warranty Information
Warranty: 5 Year Warranty
