title: Gigabyte nVidia GeForce RTX 5060Ti WINDFORCE MAX 8GB Graphics Card
date: 2026-04-07T13:59:04Z
modified: 2026-05-11T08:05:51Z
permalink: "https://tech.co.za/product/gigabyte-nvidia-geforce-rtx-5060ti-windforce-max-8gb-graphics-card/"
type: product
status: publish
excerpt: "GeForce RTX™ 5060 Ti 8GB GDDR7\\nPCI-E 5.0\\n650W Recommended PSU\\n8 Pin*1 Power Connector"
wpid: 604628
product_brand:
  - Gigabyte
product_type:
  - simple
product_cat:
  - Components
  - Graphics Cards (GPUs)
pa_graphics-card:
  - 8GB (Dedicated)
featured_image: "https://tech.co.za/wp-content/uploads/2026/04/gv-n506twf2max-oc-8gda.png"
featured_image_alt: gigabyte nvidia geforce rtx 5060ti windforce max 8gb 8gb gddr7; 128 bit memory bus; 1x hdmi; 3x displayport
---

| Graphics Processing | GeForce RTX™ 5060 Ti |
| --- | --- |
| Core Clock | 2587 MHz (Reference card :2572 MHz) |
| CUDA® Cores | 4608 |
| Memory Clock | 28 Gbps |
| Memory Size | 8 GB |
| Memory Type | GDDR7 |
| Memory Bus | 128 bit |
| Card Bus | PCI-E 5.0 |
| Digital max resolution | 7680×4320 |
| Multi-view | 4 |
| Card size | L=208 W=120 H=40 mm |
| PCB Form | ATX |
| DirectX | DirectX 12 API |
| OpenGL | 4.6 |
| Recommended PSU | 650W |
| Power Connectors | 8 Pin\*1 |

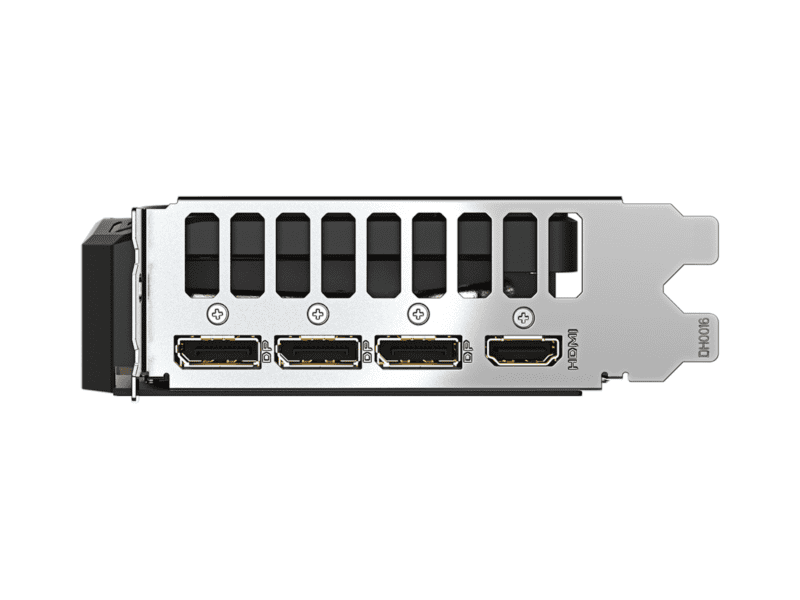

| Output | DisplayPort 2.1b \*3, HDMI 2.1b \*1 |
| More info: | [https://www.gigabyte.com/Graphics-Card/GV-N506TWF2MAX-OC-8GD/sp](https://www.gigabyte.com/Graphics-Card/GV-N506TWF2MAX-OC-8GD/sp) |
