1000W Fully Modular ATX 3.1 PSU | 80 Plus Gold Certified | Native PCIe 5.1 12V-2×6 Connector | Full Japanese Capacitors | 10-Year Warranty
The GAMER STORM PQ1000G is a 1000W fully modular ATX 3.1 power supply built for demanding modern PC builds that pair high-end GPUs with power-hungry components. Rated 80 Plus Gold, it delivers at least 90% efficiency under typical 50% loads, keeping heat and energy waste to a minimum. Its native PCIe 5.1 12V-2×6 connector provides up to 450W for the latest graphics cards via a sleeved 105°C-resistant 16AWG copper-core cable, while ATX12V V3.1 compliance ensures the unit handles random power spikes — delivering twice total system power headroom and three times the rated 12V-2×6 cable power for 0.1 ms transient events. Reliability is underpinned by full Japanese electrolytic capacitors, an Active PFC + Half-Bridge LLC + DC-to-DC topology, and a hold-up time of at least 16 ms at full load — exceeding ATX 3.1 requirements. The 120 mm FDB fan adjusts speed dynamically based on internal thermal demands, and the compact 140 × 150 × 86 mm chassis fits the vast majority of ATX cases. Eight protection systems — OPP, OVP, SCP, OTP, OCP, UVP, SIP, and NLO — keep your components safe, and a full 10-year limited warranty backs every unit.
Features
- 1000W total output with ATX12V V3.1 compliance for modern high-performance PC builds
- 80 Plus Gold certified — at least 90% efficiency under typical 50% load, reducing heat and energy waste
- Native PCIe 5.1 12V-2×6 connector supplies up to 450W for the latest GPUs via a sleeved 16AWG copper-core cable
- Full Japanese electrolytic capacitors with Active PFC + Half-Bridge LLC + DC-to-DC topology for stable, consistent output
- Hold-up time of ≥16 ms at full load — exceeding ATX 3.1 compliance requirements
- 120 mm FDB (Fluid Dynamic Bearing) fan dynamically adjusts speed to match cooling demands
- Comprehensive protection suite: OPP, OVP, SCP, OTP, OCP, UVP, SIP, and NLO
- Fully modular cabling for clean builds and unrestricted airflow
- 10-year limited warranty
Specifications
- Wattage: 1000W
- Efficiency Rating: 80 PLUS Gold
- Modularity: Full Modular
- Form Factor: ATX
- ATX Standard: ATX12V V3.1
- 12V-2×6 / PCIe Gen5 Connector: Yes
- Fan Size: 120 mm
- Colour: Black
- Warranty: 120 months
- Product Dimensions: 15 x 14 x 8.6 cm

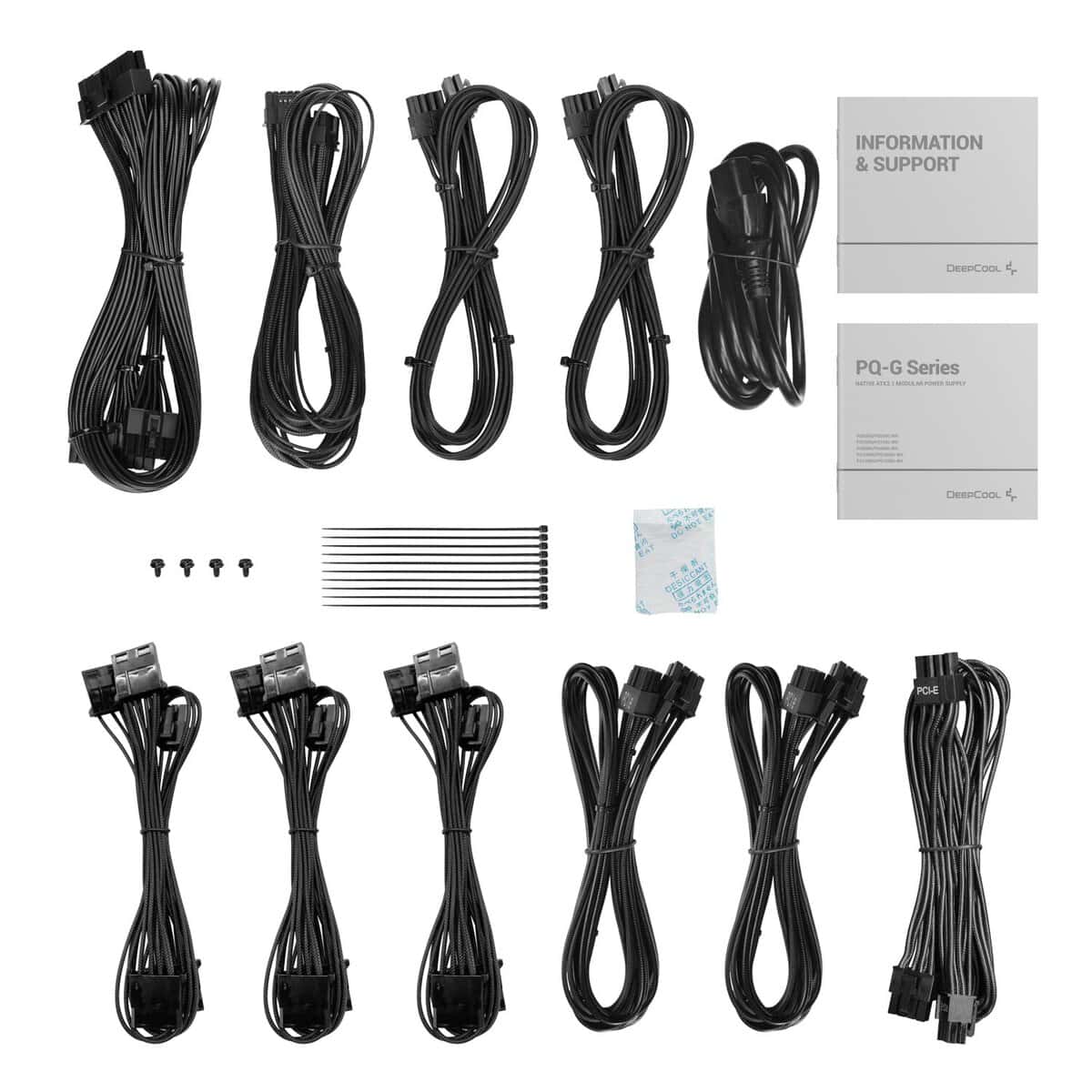

What’s in the Box
- DeepCool Gamerstorm PQ1000G 1000W 80PLUS Gold Fully Modular Power Supply x1
- Modular Cable Pack x1
- Power Cable x1
- User Manual x1
