The Cudy AC1200 Dual-Band Access Point is a great way to extend your existing LAN network into a wireless one. It features a high-speed dual-band network that allows you to access 2.4GHz or 5GHz frequency bands. It can reach transfer speeds of up to 867Mbps on a 5GHz frequency. It also supports Advanced Business AP Features, as well as support for PoE(802.af) for more convenience. Its simple mounting design makes it easy to attach to a wall or ceiling.
FEATURES:
- Up to 867Mbps Wireless Speed
- Dual-Band Frequency
- Dual Core Processor
- Multi-Mode: AP/Router/RE/WISP
- PoE or DC Power Supply
- Versatile Mounting
SPECIFICATIONS:
- CPU: 880 MHz Dual-Core Processor
- Flash: 16 MB (128 Mbit)
- DDR: 128 MB (1 Gbit)

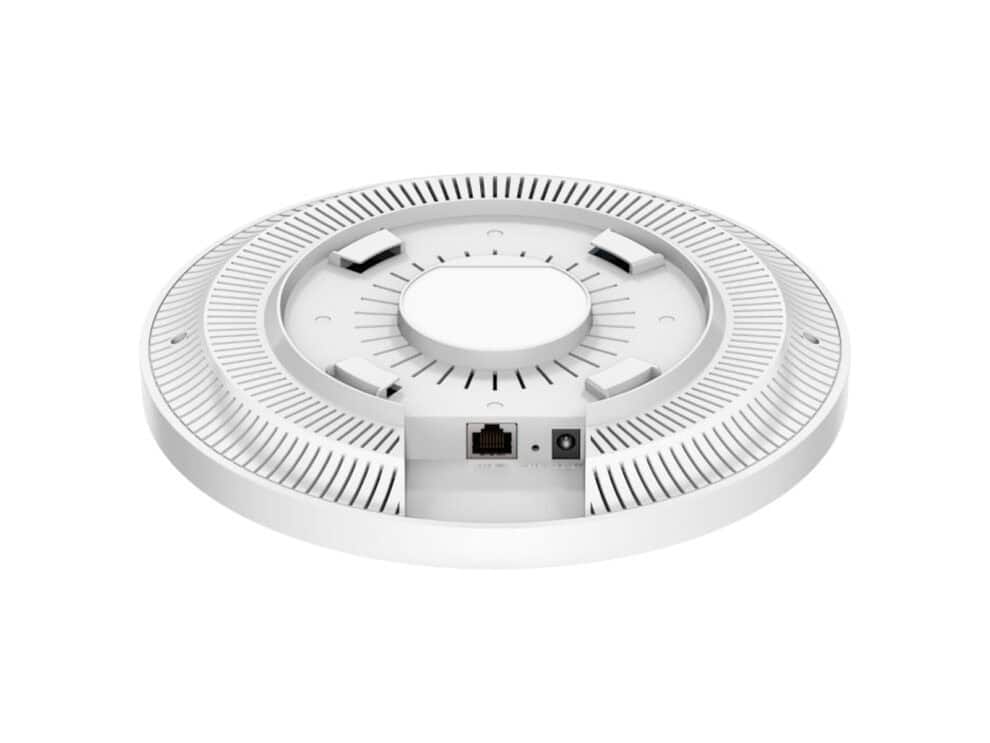

- Interface: 1× Gigabit Ethernet Port (PoE In), 1× Reset Button, 1× DC Jack
- Power Supply: 802.3af/at PoE, 24-57 V Passive PoE (+4,5pins; -7,8pins), 12 V ⎓ 1A DC
- Power Consumption: Idle: 4 W, PoE Max: 11 W, DC Max: 7.5 W
- Antenna Type: 4× Internal Omni-directional Antennas

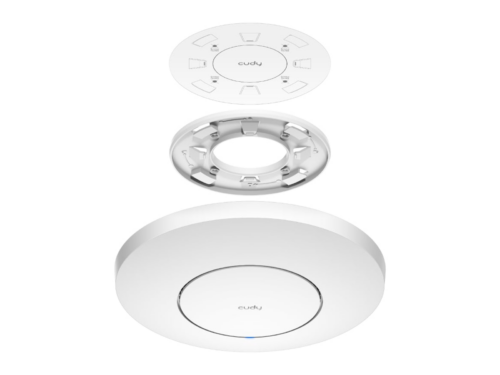

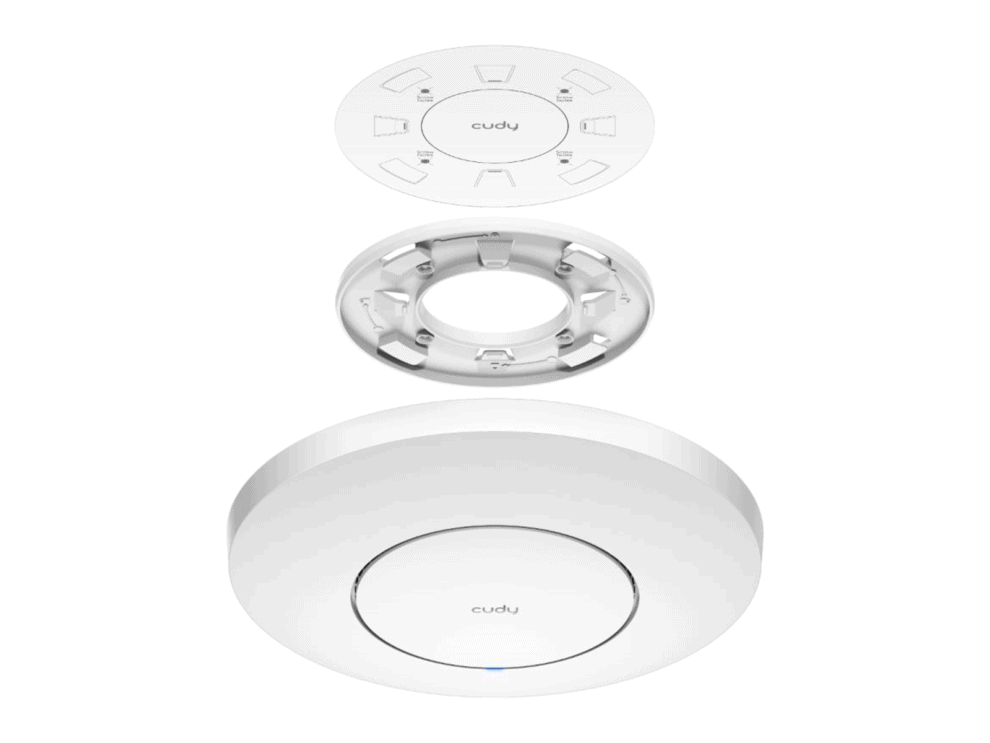

- Mounting: Ceiling/Wall Mounting (Kit included)
- Wireless Standards: Wi-Fi 5 (802.11ac/n/g/b/a)
- Frequency: 2.4 GHz and 5 GHz
- Signal Rate: 5 GHz: Up to 867 Mbps, 2.4 GHz: Up to 300 Mbps
- Channel Width: 20/40/80 MHz
- Wireless Function:
- Multiple SSID
- Captive Portal
- Seamless Roaming Mesh△
- Self-Organizing Mesh△
- Band Steering
- Auto Channel Optimization
- Enable/Disable Wireless Radio
- Transmit Power Control
- QoS (WMM)
- MU-MIMO
- Beamforming
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Encryption: WPA-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK
- Operating Modes: Wireless Access Point Mode, Wireless Router Mode, Wireless Extender Mode, WISP Mode
- Operating Temperature: 0~40 °C (32~104 °F)
- Storage Temperature: -40~70 °C (-40~158 °F)
- Dimensions: 23 ×23 × 5.7 cm
WHAT’S IN THE BOX:
- Cudy AC1200 Dual-Band Access Point – White x1
