MasterBox TD500 Mesh V2
Exquisitely Ruthless
MasterBox TD500 Mesh V2’s iconic polygonal design keeps your system looking unique and your gaming sessions streamlined.

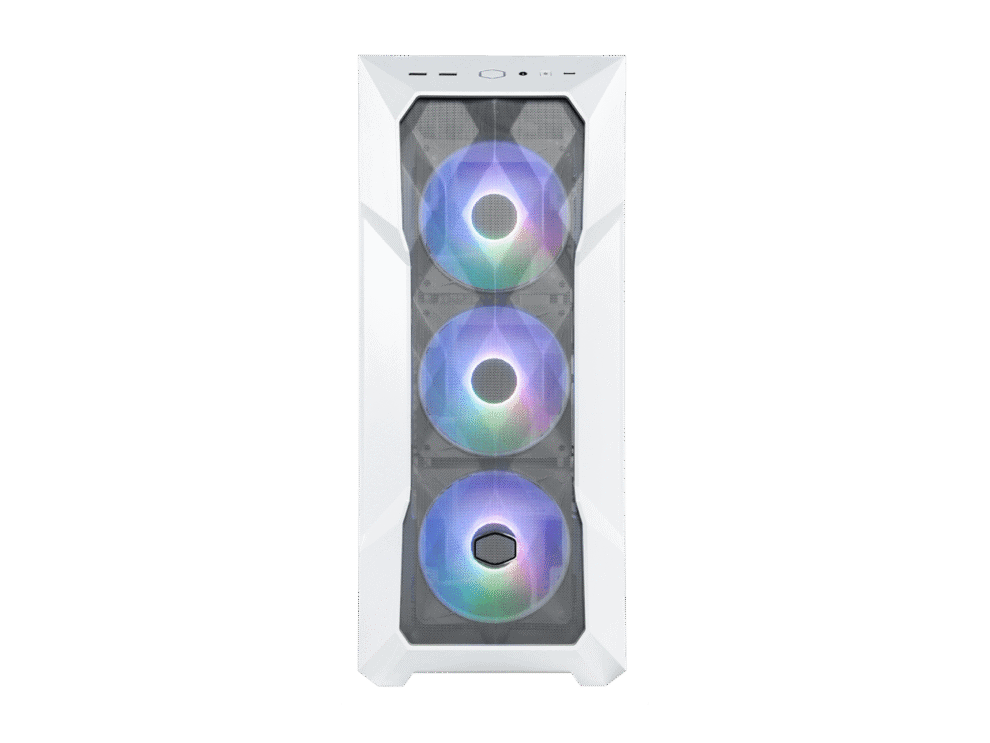

Polygonal FineMesh Front Panel
Three CF120 ARGB Fans Included
USB 3.2 Gen 2 Type C Support
Tool-Free Crystalline TG Side Panel
PSU Shroud With Removable Cover
ARGB Controller Included
Removable Top Panel
Removable HDD cage
Materials – Exterior: Steel, Mesh, Plastic
Materials – Left Side Panel: Tempered Glass
Dimensions (L x W x H): 499 x 210 x 500mm (incl. Protrusions), 430 x 210 x 477mm (excl. Protrusions)
Volume: 50L (excl. Protrusions)
Motherboard Support: Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*up to 12″ x 10.7″ motherboards, may impact cable management feature)
Expansion Slots: 7
3.5″ Drive Bays: 2
2.5″ Drive Bays: 3
I/O Panel – USB Ports: 2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 Type C
I/O Panel – Audio In / Out: 1x Audio Jack
I/O Panel – Other: 1x ARGB Fan Hub
Pre-installed Fans – Front: 3x 120mm CF120 ARGB
Fan Support – Top: 3x 120mm, 2x 140mm
Fan Support – Front: 3x 120mm, 2x 140mm
Fan Support – Rear: 1x 120mm
Radiator Support – Top: 120mm, 140mm, 240mm, 280mm, 360mm, (recommended maximum thickness -55mm)
Radiator Support – Front: 120mm, 140mm, 240mm, 280mm, 360mm
Radiator Support – Rear: 120mm
Clearance – CPU Cooler: 165mm/6.49″
Clearance – PSU: 200mm, (Recommended up to 170mm)
Clearance – GFX: 410mm / 16.14″
Cable Routing – Behind Motherboard Tray: 19mm / 0.74″
Dust Filters: Front, Top, Bottom
Power Supply Support: Bottom Mount, ATX
