Longer range and higher performance at range means that you can cover an area with significantly less equipment, backhaul infrastructure, cabling, installation and ongoing maintenance costs. Combined with a highly attractive price point, the initial investment in the solution and the total cost of ownership over its lifetime are dramatically reduced. Dual radio 802.11ax2.5 GbE uplink Ethernet 1 GbE with power Outdoor IP67 rated, -40°C to 65°C
Features:
- Dual band 2.4 GHz and 5 GHz radios, 2×2 streams
- 802.11ax MU-MIMO, MU-OFDMA, TWT
- 1 x 2.5 GbE and 1 x GbE RJ45 interfaces
- Up to 30 watts PoE out on GE2 port
- Cambium Networks™ Confidential Restricted 2
- Integrated BLE 4.1
- 802.3bt or 802.3at PoE Powered Device
- Use 802.3at PoE source for the AP if not using PoE out
- Use 802.3bt PoE source if the AP and PoE out is used
- IP67-rated enclosure with ambient temperature spec of -40 to 65C

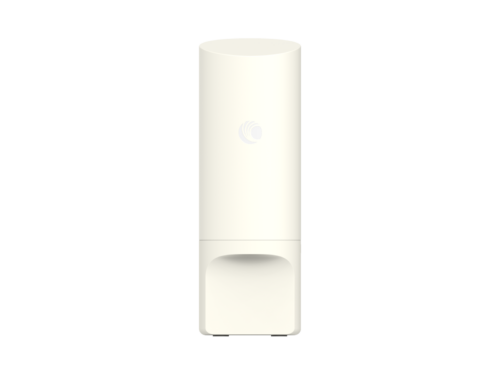

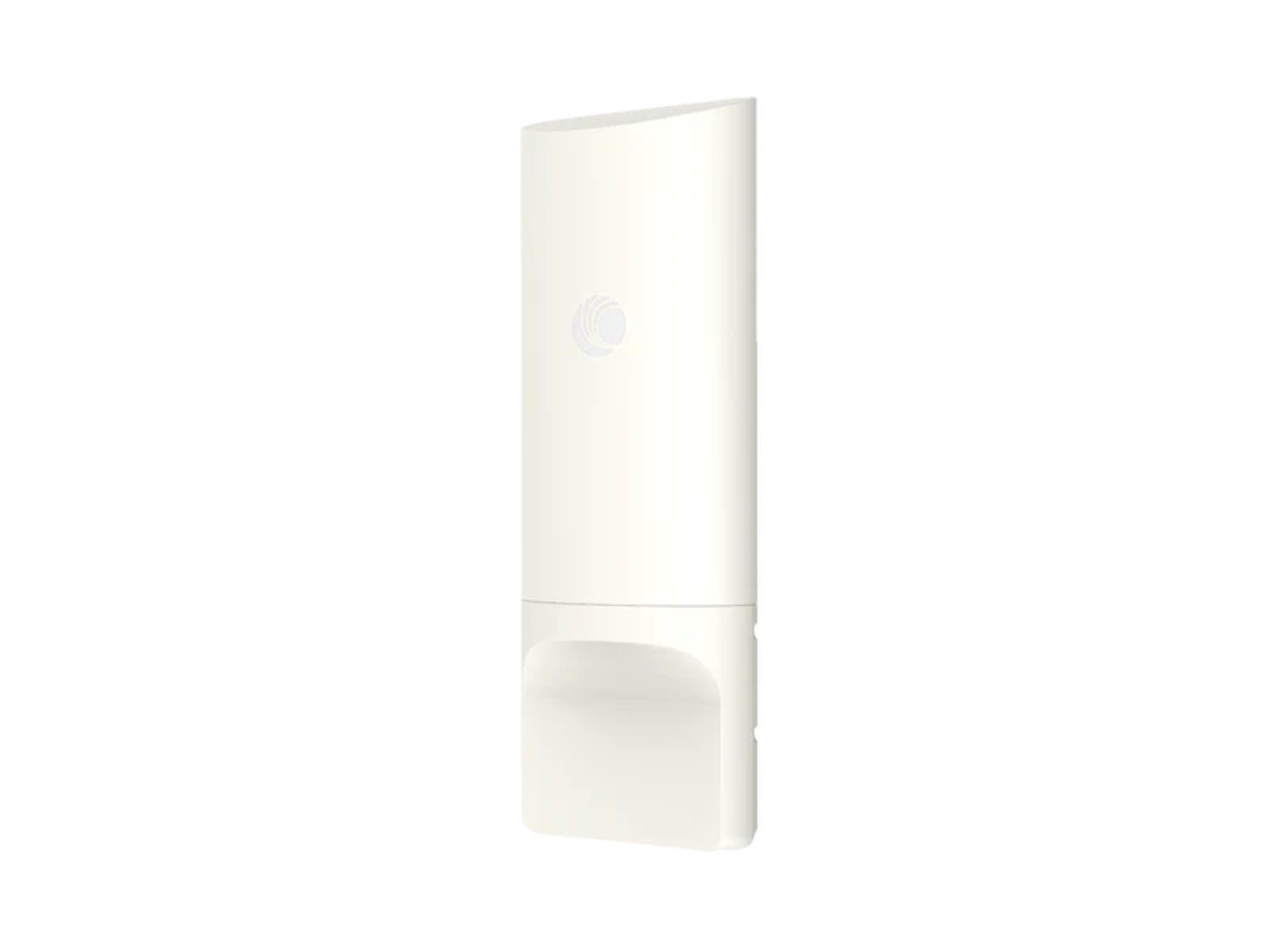

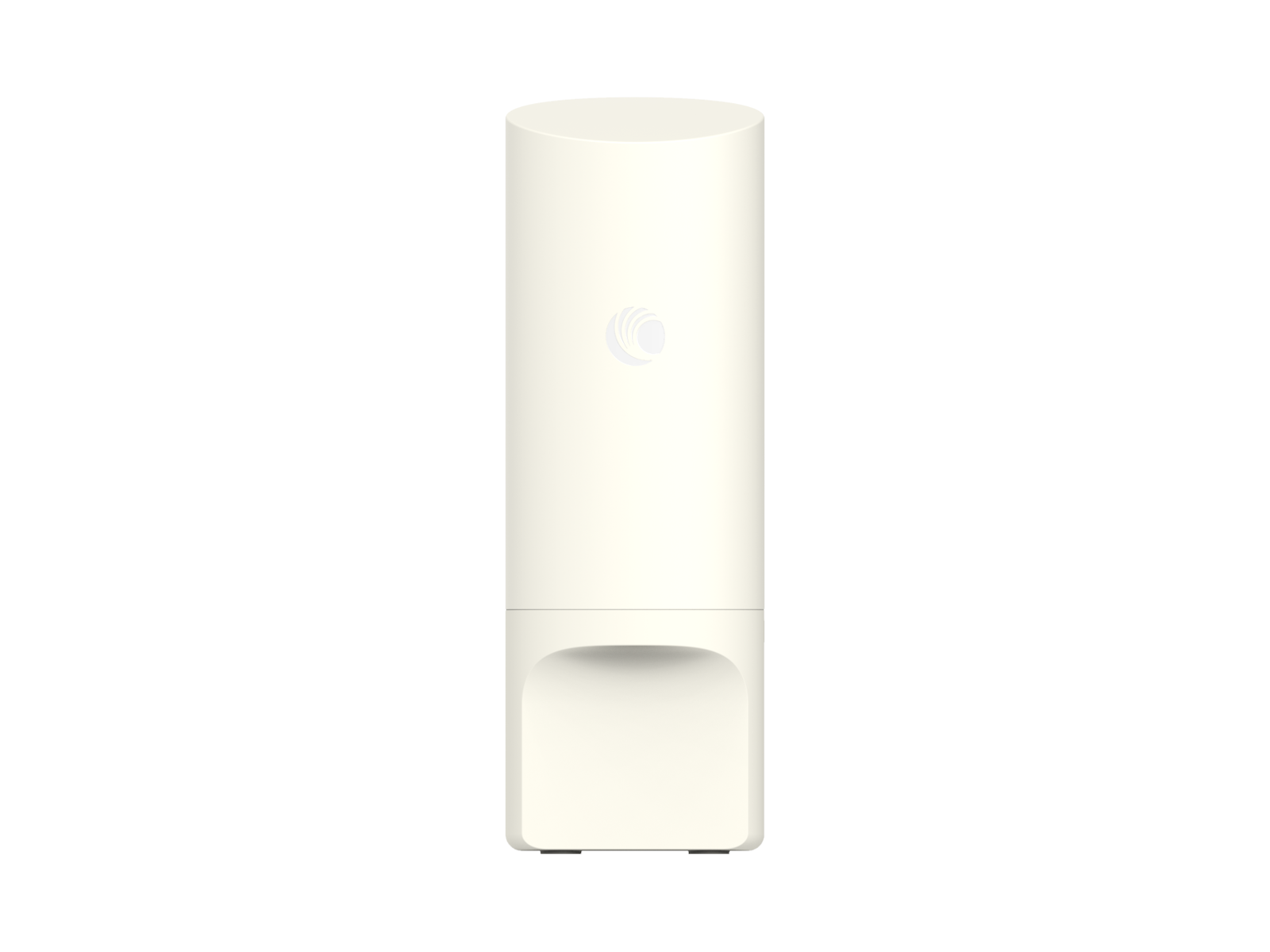

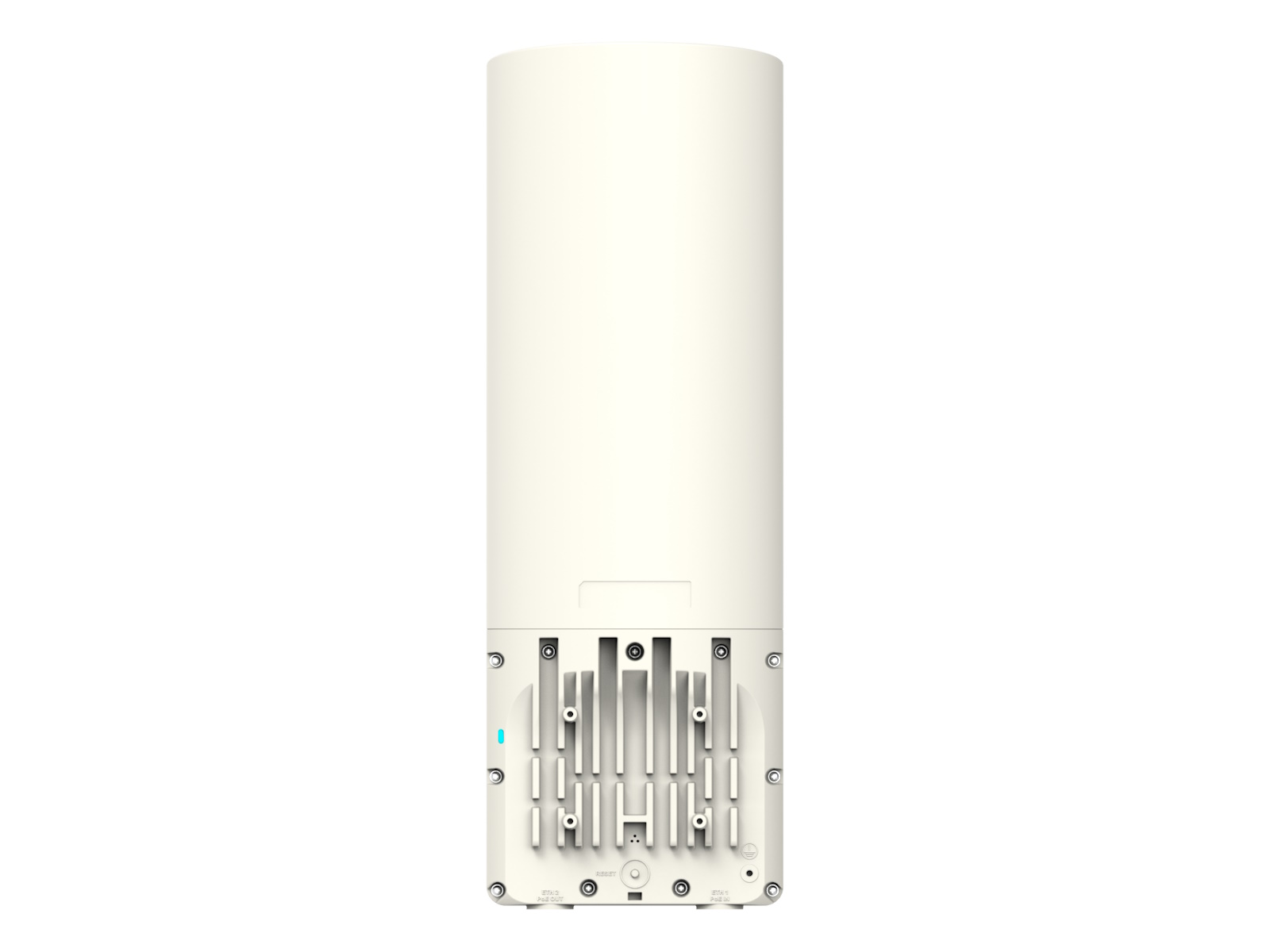

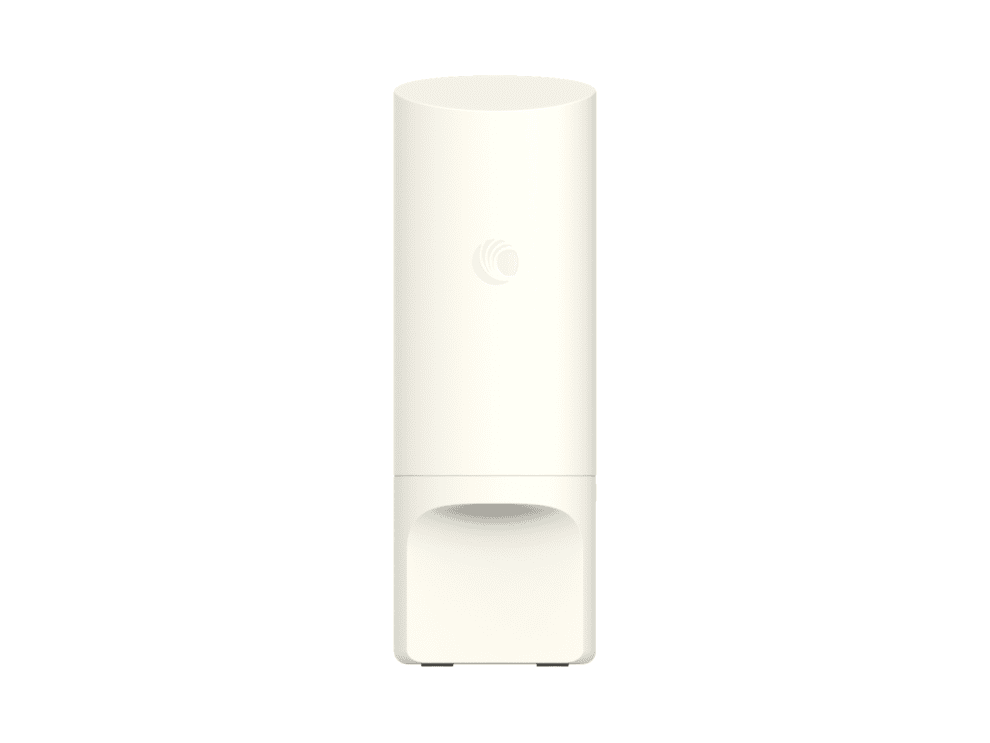

Cover significantly larger areas in campus networks and public Wi-Fi hotspot applications. Coupling Wi-Fi 6 technology with high efficiency antennas, the XV2-2T delivers up to 1 km range as well as higher throughput at shorter ranges compared to competitive solutions. Covering more area per AP, network operators can save costs on equipment, cabling, installation, maintenance and access rights for outdoor Wi-Fi deployments. When paired with Cambium Networks’ multi-gigabit 60 GHz cnWave solutions for Wi-Fi backhaul, network operators can blanket large areas with blazingly fast speeds – all wirelessly.
Unique Antenna Design
The XV2-2T0’s high-efficiency antennas deliver a maximum of 9 dBi and an average of 7 dBi gain over 360 degrees in 5 GHz, delivering maximum gain and minimum nulls. The XV2-2T1 delivers a maximum of 13.5 dBi gain over a 120 degree sectored area in 5GHz. The antenna design enables the XV2-2T access points to deliver consistent coverage for optimal user experience.
Cover Areas with Fewer Outdoor Access Points
Longer range and higher performance at range means that you can cover an area with significantly less equipment, backhaul infrastructure, cabling, installation and ongoing maintenance costs.
Combined with a highly attractive price point, both the initial investment in the solution and the total cost of ownership over its lifetime are dramatically reduced.
