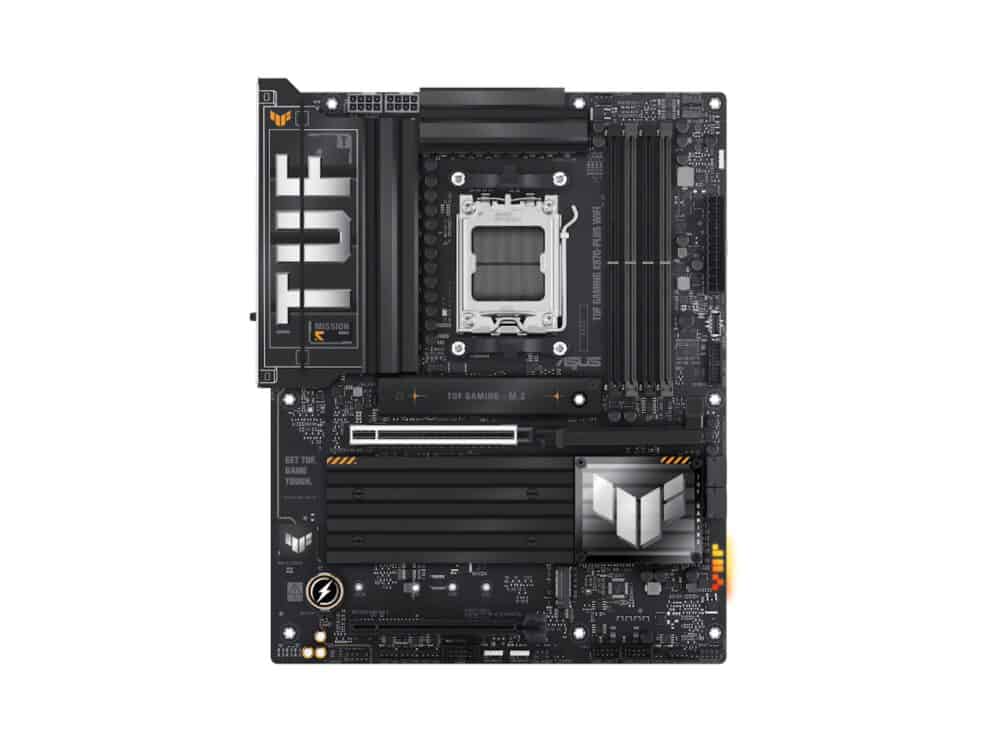

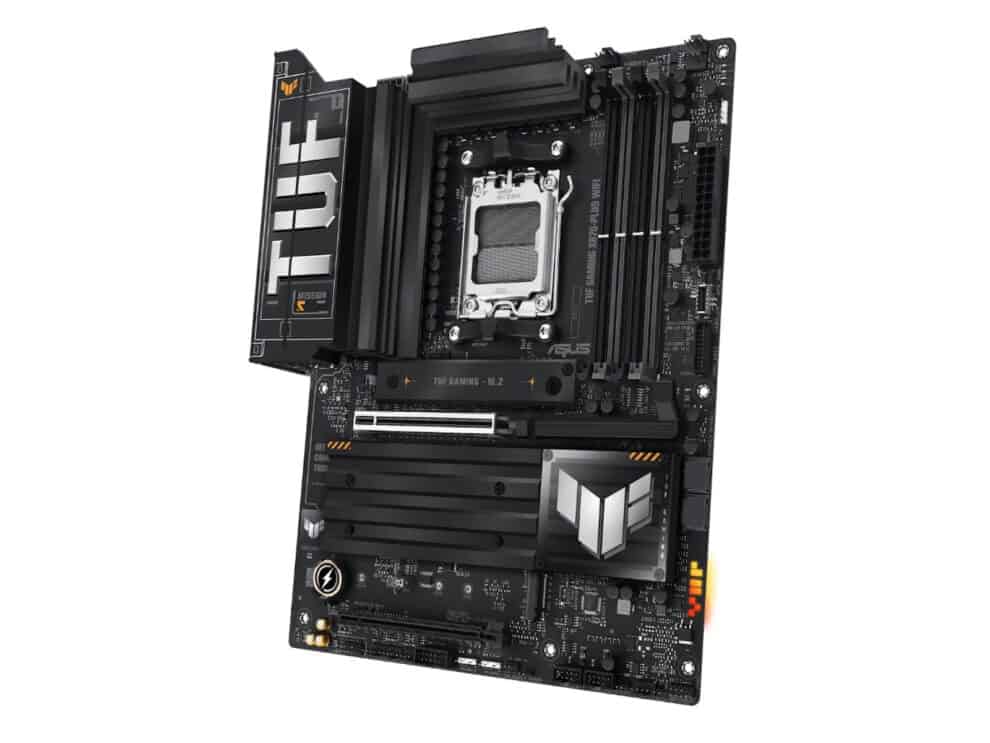

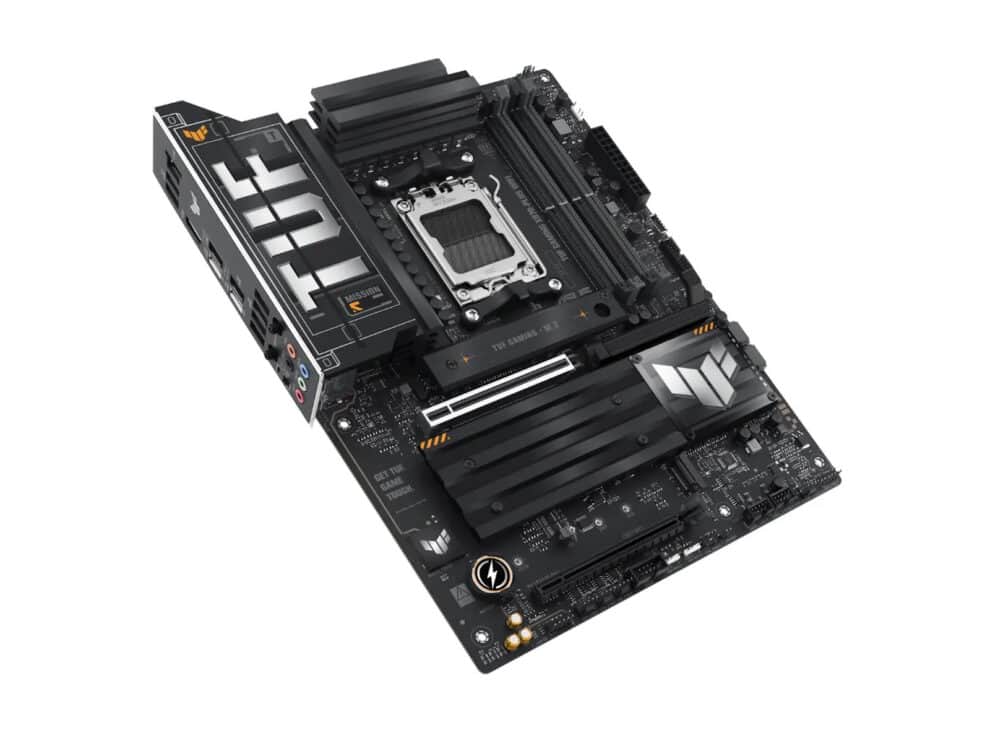

title: Asus TUF Gaming X870-PLUS Wi-Fi AMD Socket AM5 ATX Motherboard
date: 2024-09-30T06:54:14Z
modified: 2026-05-08T12:06:11Z
permalink: "https://tech.co.za/product/asus-tuf-gaming-x870-plus-wifi-amd-x870-socket-am5-atx/"
type: product
status: publish
excerpt: ASUS Motherboard/AM5/4xDIMM/Max192GB/DDR5/2xUSB4/1xHDMI/1xPCIe5x16/1xPCIe4x16/4xM.2/2xSATA/RAID/
wpid: 511991
product_brand:
  - Asus
product_type:
  - simple
product_visibility:
  - featured
product_cat:
  - Components
  - Motherboards
pa_form:
  - DDR5
pa_socket:
  - AM5
pa_types:
  - AMD
featured_image: "https://tech.co.za/wp-content/uploads/2024/09/motherboard-2.jpeg"
---

**Processor**
Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7 7th Gen, AMD Ryzen 7 8th Gen, AMD Ryzen 9 7th Gen, AMD Ryzen 9 8th Gen, AMD Ryzen 9 9th Gen

**Memory**
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC: Yes
Non-ECC: Yes
Supported memory clock speed (max): 8000 MHz
Maximum memory: 192 GB
Unbuffered memory: Yes

**Storage controllers**
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Included hard drives: 2
Number of storage drives supported: 6
RAID support: Yes
RAID levels: 0, 1, 5, 10

**Graphics**
Parallel processing technology support: Not supported

**Internal I/O**
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2×2 connectors: 1
Number of SATA III connectors: 2
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 4
EPS power connector (8-pin): Yes

**Internal I/O**
Number of COM connectors: 1
12V power connector: Yes

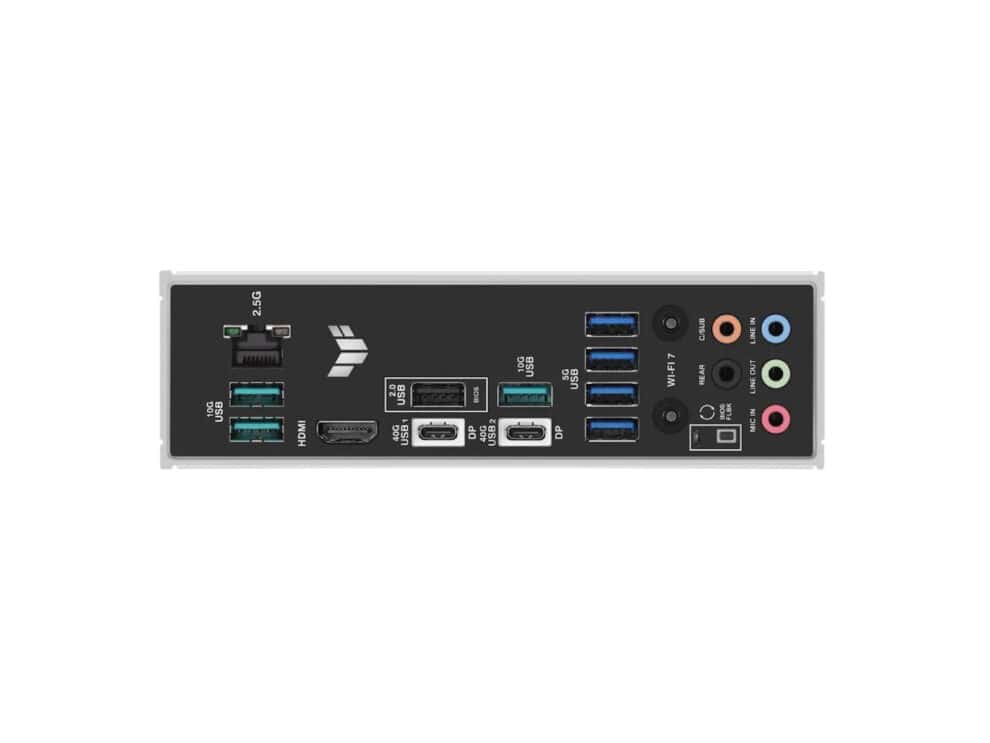

**Rear panel I/O ports**
USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB4 Gen 3×2 ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
Microphone in: Yes
USB connector type: USB Type-A, USB Type-C

**Features**
Chipset: AMD X870
Audio chip: Realtek ALC1220P
Audio output channels: 7.1 channels
Product colour: Black
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: AMD
Windows operating systems supported: Windows 11

**Expansion slots**
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 4

**Weight & dimensions**
Width: 305 mm
Depth: 244 mm
