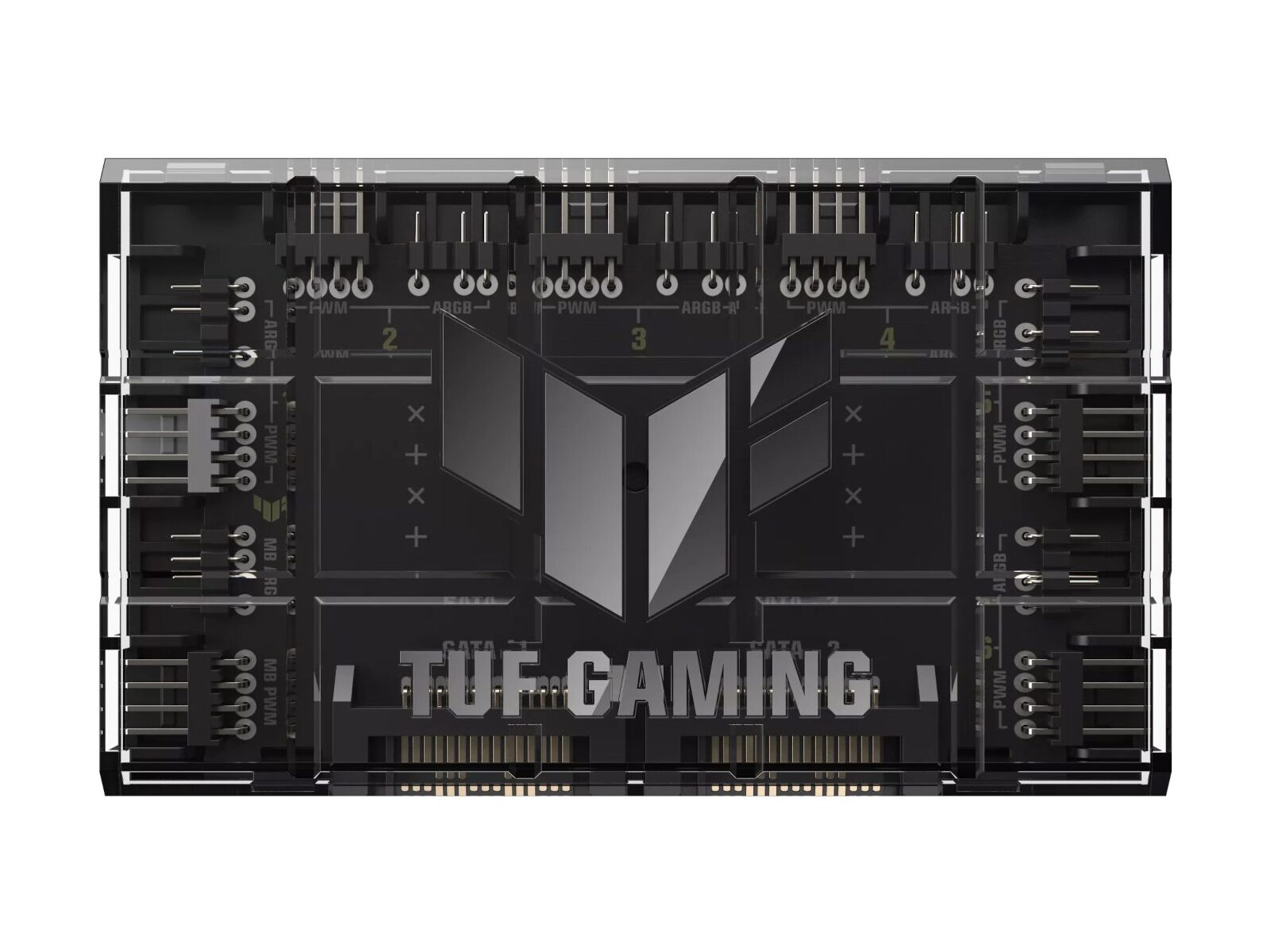

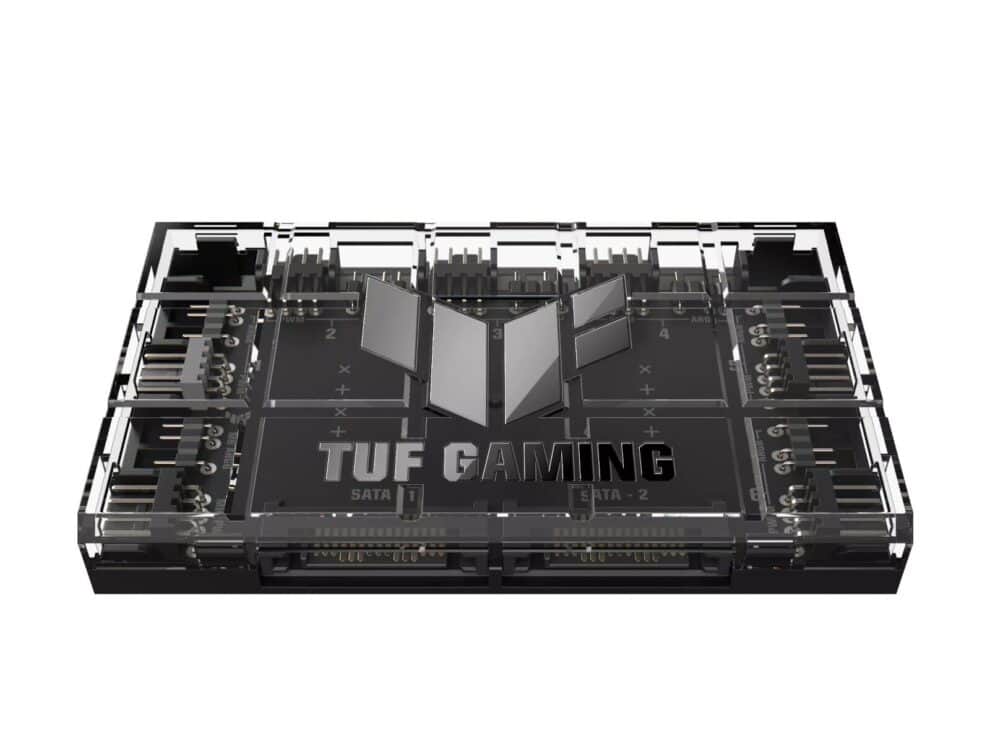

Take control of your cooling and lighting with the Asus TUF Gaming ARGB PWM Fan Hub — a high-efficiency solution engineered for PC enthusiasts, gamers, and professional system builders. Purpose-built for robust thermal management and dynamic RGB lighting, this hub supports up to six 4-pin PWM fans and six 3-pin ARGB devices, ensuring your rig stays cool, responsive, and visually synchronised.
Designed to support advanced system loads, the hub offers up to 108W total power for fan operation and 45W for ARGB lighting. Dual SATA connectors deliver reliable, uninterrupted power even at maximum capacity, while integrated safety fuses protect your components from overcurrent and short-circuit risks.
The compact, lightweight design features a magnetic backplate for tool-free mounting on any metal chassis surface. Operational LED indicators allow quick visual confirmation of fan activity and power status, making system diagnostics faster and easier.
Whether you’re building a competitive gaming PC or a performance-heavy workstation, the Asus TUF Gaming ARGB PWM Fan Hub provides the scalability and stability needed for efficient system cooling and aesthetic control.
FEATURES:
- Centralised control for up to 6 x PWM fans and 6 x ARGB devices
- Dual SATA power inputs for stable power under full system load
- Supports 108W total PWM and 45W total ARGB power output
- Built-in fuses provide short-circuit and overcurrent protection
- Magnetic backplate enables fast, tool-free installation
- Individual LED indicators display port activity for quick status checks
- Ideal for TUF Gaming systems and cross-compatible with other setups
- Compact footprint reduces cable clutter and improves airflow
- Designed for high-performance builds with synchronised lighting control
SPECIFICATIONS:
- Fan Support
- 6 x 4-pin PWM fan ports
- 12V rated voltage
- 2A per port / 9A total
- Total PWM Output: 108W
- ARGB Support
- 6 x 3-pin ARGB LED ports
- 5V rated voltage
- 2A per port / 9A total
- Total ARGB Output: 45W
- Power Input
- 2 x SATA power connectors
- Max Ratings: 12V @ 9A, 5V @ 9A
- Safety & Indicators
- Dual safety fuses
- Overcurrent and short-circuit protection
- TUF logo LED for power status
- Port-specific operational indicators
- Physical Dimensions
- 11.5 x 6.9 x 1.77 cm
- Weight: 81.5 g
WHAT’S IN THE BOX:

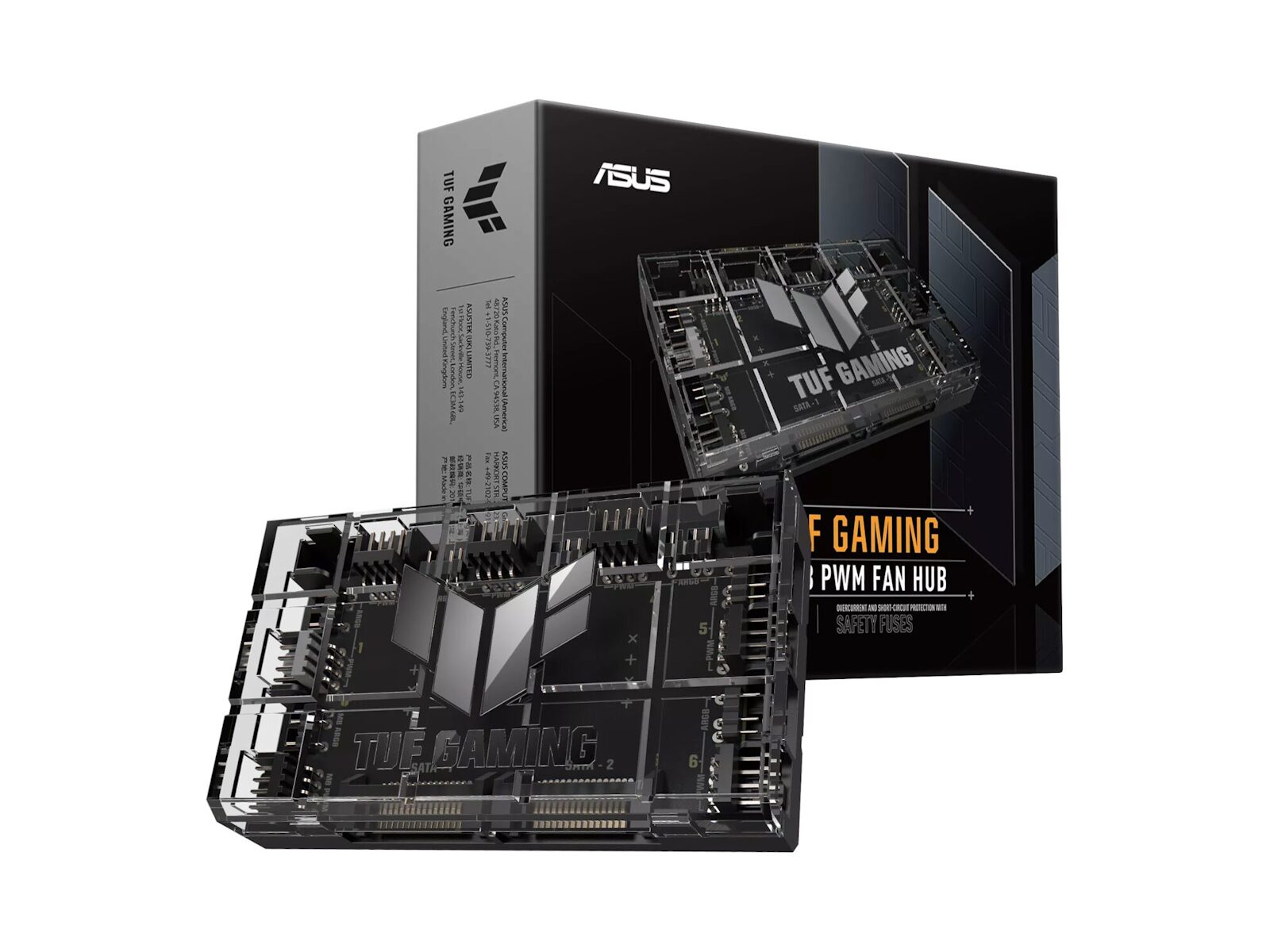

- Asus TUF Gaming ARGB PWM Fan Hub x1
- SATA Power Cables x2
- User Manual x1
