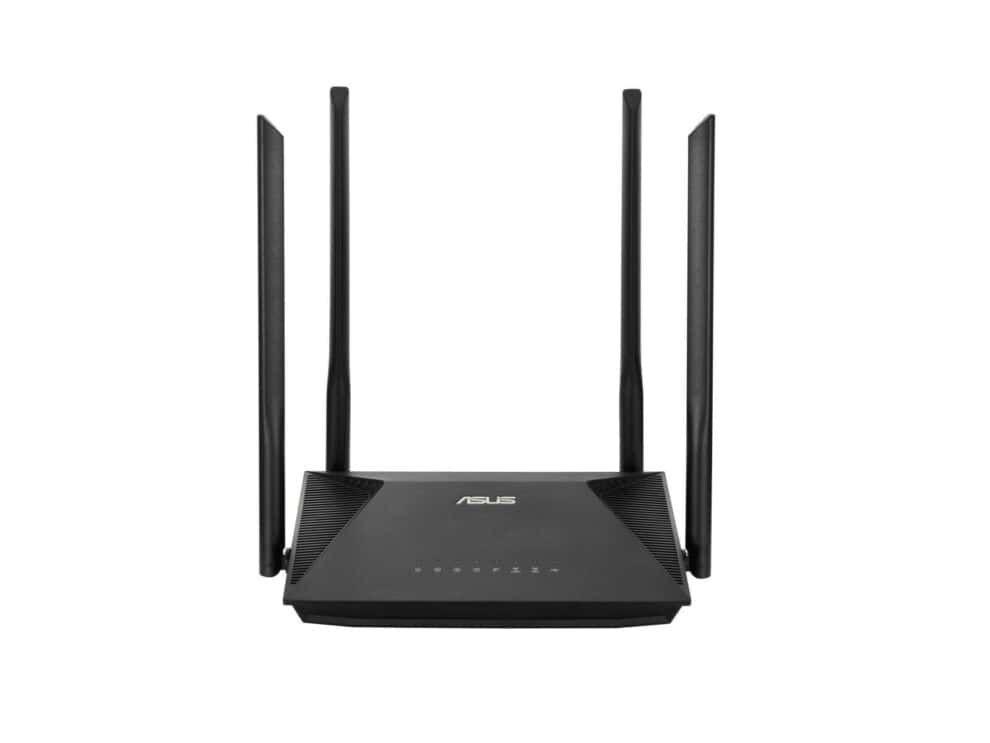

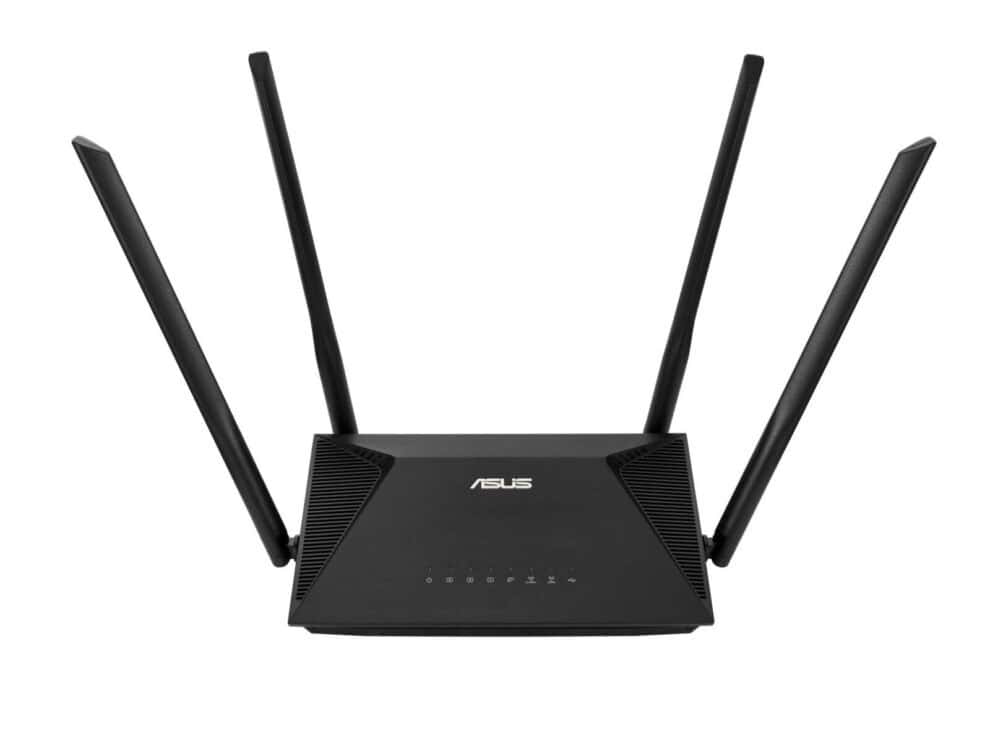

Model Name: RT-AX53U
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
Product Segment
AX1800 ultimate AX performance : 1201 Mbps+ 574 Mbps
AX technology: Yes
Antenna: Ex-antennas*4
Transmit/Receive: 2.4GHz 2×2, 5GHz 2×2
Processor: Dual-code (4 VPE)
Memory: 128 MB Flash, 256 MB RAM
Boosts speed:
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80 MHz bandwidth
Operating Frequency: 2.4G Hz / 5 GHz

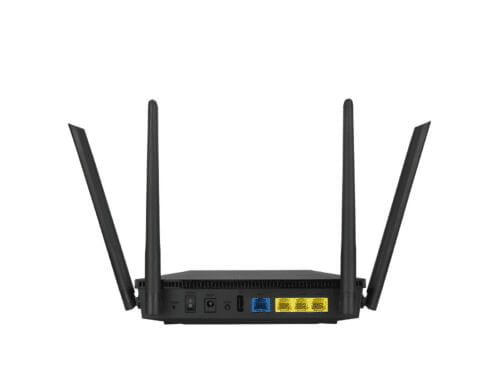

Ports: RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3,USB Port x1
Button: WPS Button, Reset Button, Power Switch
LED Indicator
Power x 1
2.4G x 1
5G x 1
LAN x 3
WAN x 1
USBX1
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 1.5A current
