- – 750 W 100 – 240 V
- – Motherboard power connector: 20+4 pin ATX
- – PC SFX 80 PLUS Platinum
- – 12 cm
- – Black, Silver
Power
Total power: 750 W
AC input voltage: 100 – 240 V
Combined power (+3.3V): 110 W
Combined power (+12V): 750 W
Combined power (+5V): 110 W
Combined power (-12V): 9.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 20 A
Max output current (+12V): 62.5 A
Max output current (+5V): 20 A
Max output current (-12V): 0.8 A
Max output current (+5Vsb): 2.5 A

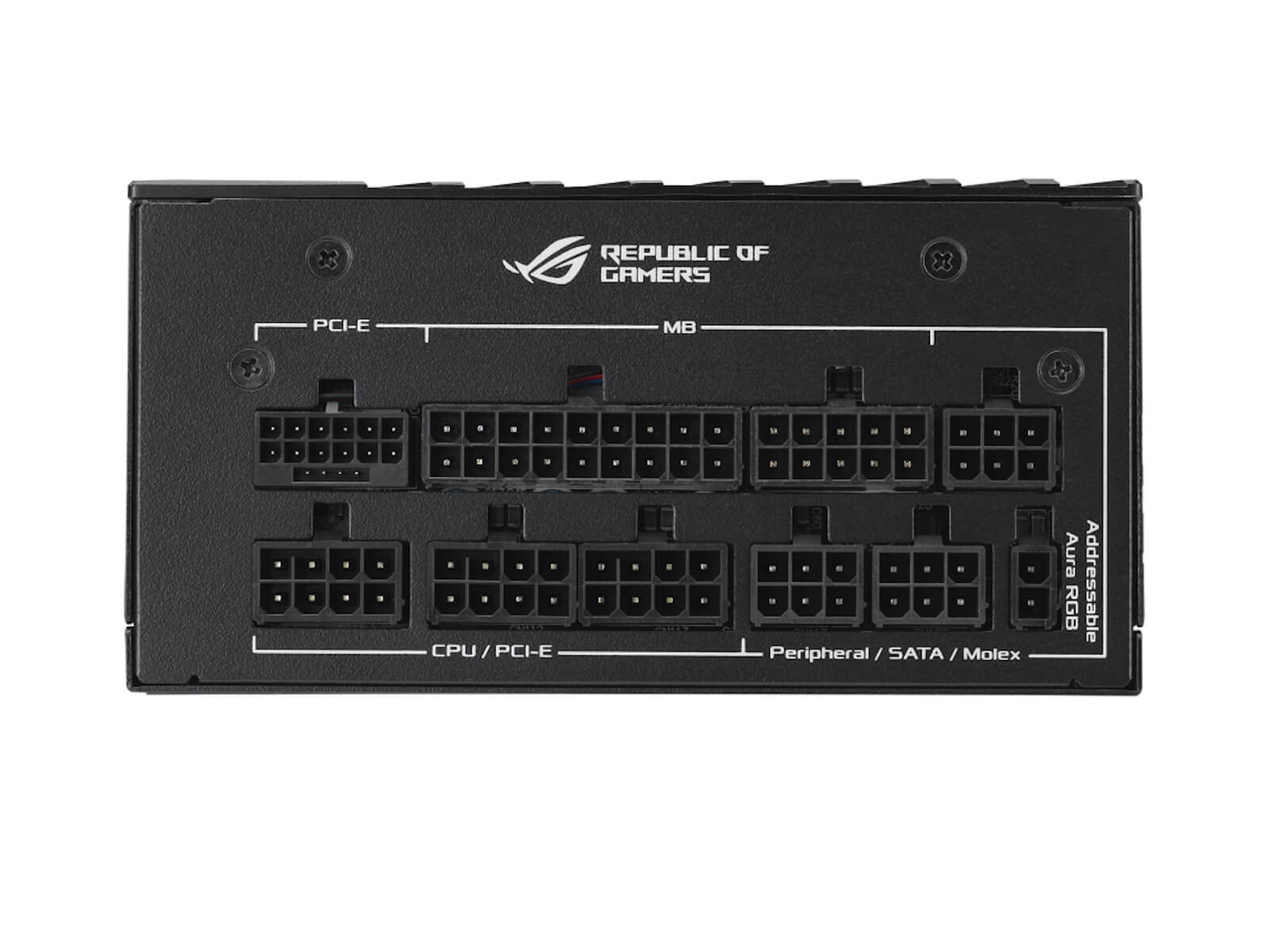

Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 6
Peripheral (Molex) power connectors (4-pin): 4
PCI Express power connectors (8-pin): 3
PCI Express power connectors (16-pin): 1
CPU power connector (4+4 pin): Yes
