Processor
Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, AMD Ryzen 9 7th Gen, AMD Ryzen 9 8th Gen, AMD Ryzen 9 9th Gen
Supported processor sockets: Socket AM5
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC: Yes
Non-ECC: Yes
Supported memory clock speed (max): 8000 MHz
Maximum memory: 192 GB
Unbuffered memory: Yes
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Included hard drives: 2
Number of storage drives supported: 6
RAID support: Yes
RAID levels: 0, 1, 5, 10
Graphics
Parallel processing technology support: Not supported
Internal I/O
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of SATA III connectors: 2
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 4
EPS power connector (8-pin): Yes
Number of COM connectors: 1
TPM connector: Yes
12V power connector: Yes
RGB LED pin header: Yes

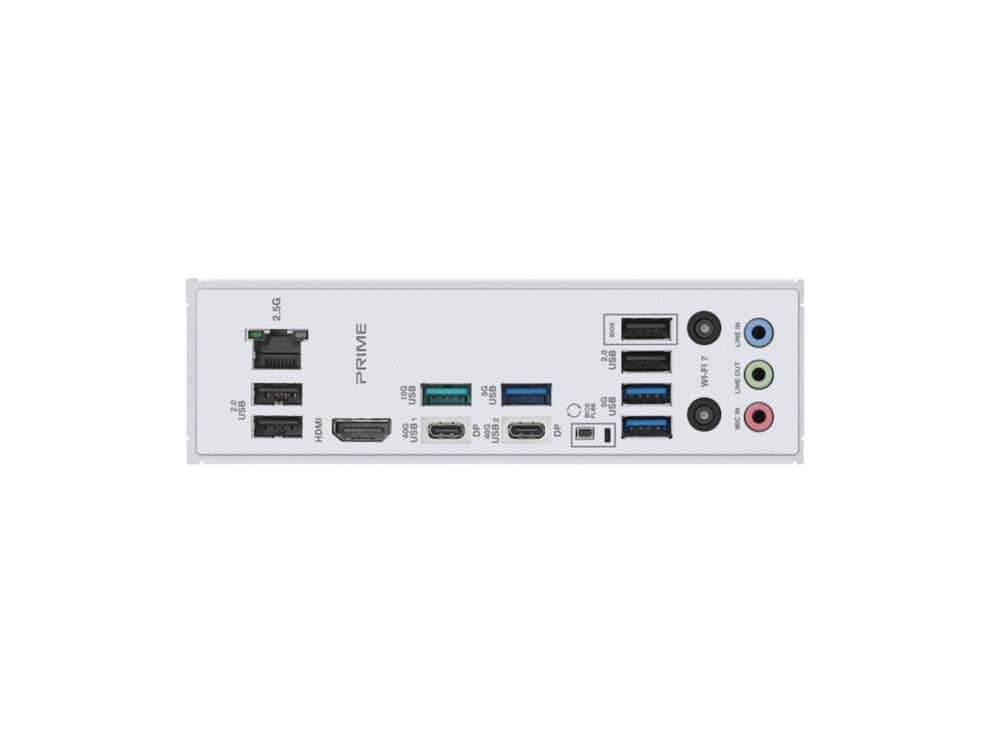

Rear panel I/O ports
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB4 Gen 2×2 ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPort version: 1.4a
Line-in: Yes
Microphone in: Yes
Features
Chipset: AMD X870
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family :AMD
Cooling type: Passive
Power source type: ATX
Windows operating systems supported: Windows 10, Windows 11
Expansion slots
PCI Express x16 (Gen 4.x) slots: 3
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 4
Weight & dimensions
Width: 305 mm
Depth: 244 mm
Height: 48 mm
