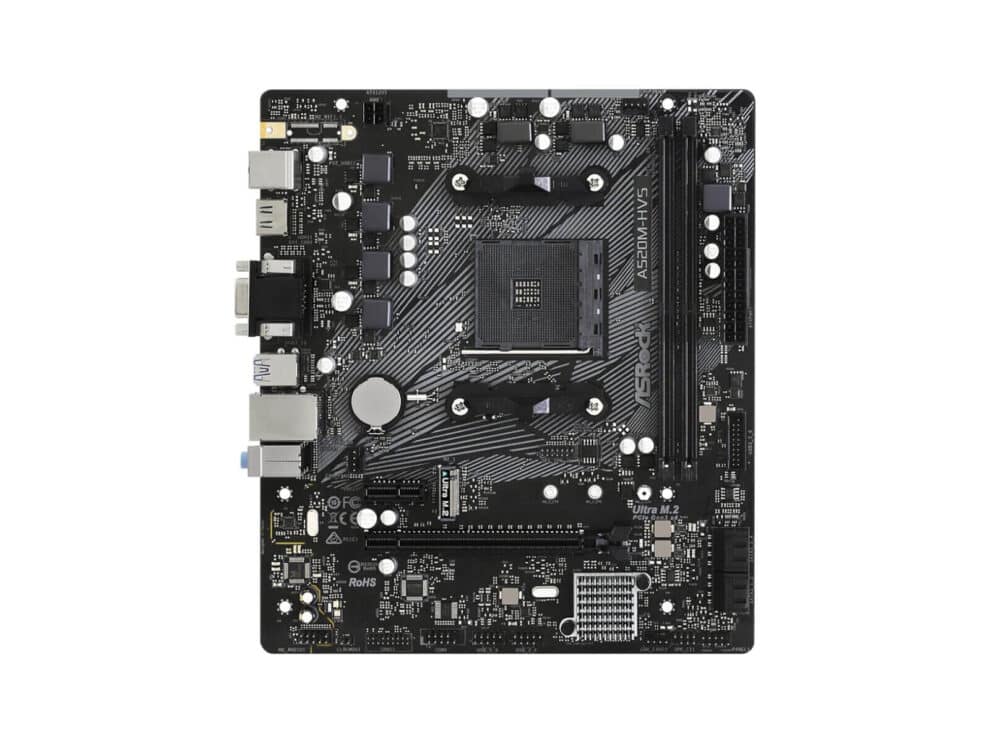

The ASRock A520M-HVS AMD AM4 m-ATX Motherboard is a robust and reliable foundation for building your next PC, offering exceptional performance and versatile connectivity. Built to support AMD AM4 Socket Ryzen™ 3000, 4000 G-Series, and 5000 Desktop Processors, it ensures compatibility with a wide range of CPUs, making it ideal for both gaming and productivity-focused builds. With a 6-phase power Design and ASRock’s premium 50A power chokes, this motherboard delivers improved Vcore voltage stability, ensuring optimal performance under demanding workloads.
Designed for high-speed performance, the A520M-HVS features an Ultra M.2 interface with PCIe Gen3 x4 support, enabling data transfer speeds of up to 32Gb/s. It also supports SATA3 6Gb/s M.2 modules, providing flexibility for modern storage solutions. AMD Smart Access Memory unleashes the full potential of GPU memory, removing performance bottlenecks and delivering a smoother, faster experience. Graphics enthusiasts will appreciate the HDMI 4K 60Hz output, which ensures fluid visuals with enhanced frame rates, as well as additional output options with D-Sub and HDMI ports for versatile display setups.
Built for durability, the A520M-HVS features a High-Density Glass Fabric PCB design that protects against electrical shorts caused by humidity. Its Sapphire Black PCB not only enhances its durability but also adds a sleek, modern aesthetic. The board supports DDR4 memory speeds up to 4733+ (OC), ensuring exceptional performance for demanding applications. With support for 7.1-channel HD audio, Gigabit LAN, and a range of USB 3.2 Gen1 and USB 2.0 ports, this motherboard offers a comprehensive suite of features for creating a reliable and high-performing system. Whether you’re gaming, streaming, or multitasking, the ASRock A520M-HVS delivers exceptional value and performance in a compact m-ATX form factor.
FEATURES:
- Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
- 6 Phase Power Design
- Supports DDR4 4733+ (OC)
- 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1

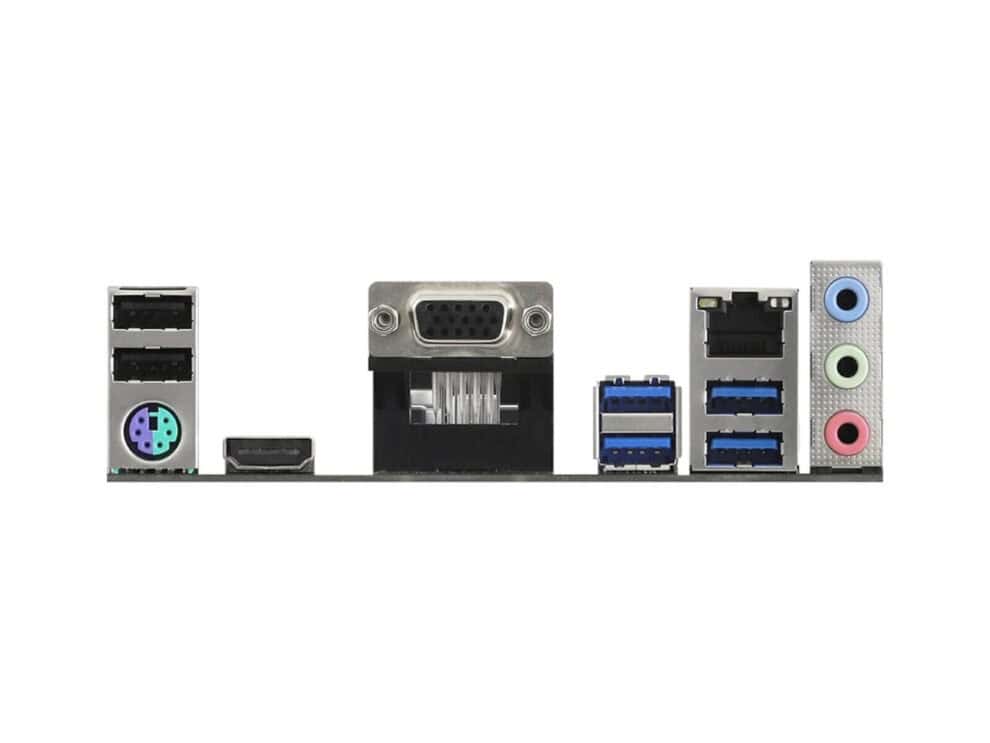

- Graphics Output Options: D-Sub, HDMI
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
- 4 x SATA3, 1 x Ultra M.2(Gen3 x4 & SATA3)
- 6 x USB 3.2 Gen1(4 x Rear, 2 x Front)
- 6 x USB 2.0(2 x Rear, 4 x Front)
- Realtek Gigabit LAN
SPECIFICATIONS:
- Socket: AMD Socket AM4
- CPU (Max Support): Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors | 6 Power Phase design
- Chipset: AMD® A520 Chipset
- DDR4 Memory: DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
- Memory Channel: Dual
- DIMM Slots: 2
- Max Memory (GB): 64
- PCI-E x16: 1
- PCI-E GEN: Gen3
- PCI-E x1: 1
- SATAIII: 4
- M.2 Slot: 1
- TPM (Header): 1
- RAID: 0/1/10
- LAN: Realtek RTL8111H Gigabit LAN
- USB 3.2 ports (Front): 1(Gen 1, Type A)
- USB 3.2 ports (Rear): 4(Gen 1, Type A)
- USB 2.0 ports (Front): 2
- USB 2.0 ports (Rear): 2(Type A)
- Serial Ports(Front): 1
- Audio ports (Rear): Realtek® ALC892/ALC897 Codec
- D-Sub Port: 1
- HDMI: 1
- DirectX: 12
- Form Factor: M-ATX
- Operating System: Support for Windows® 10 64-bit / 11 64-bit
WHAT’S IN THE BOX:

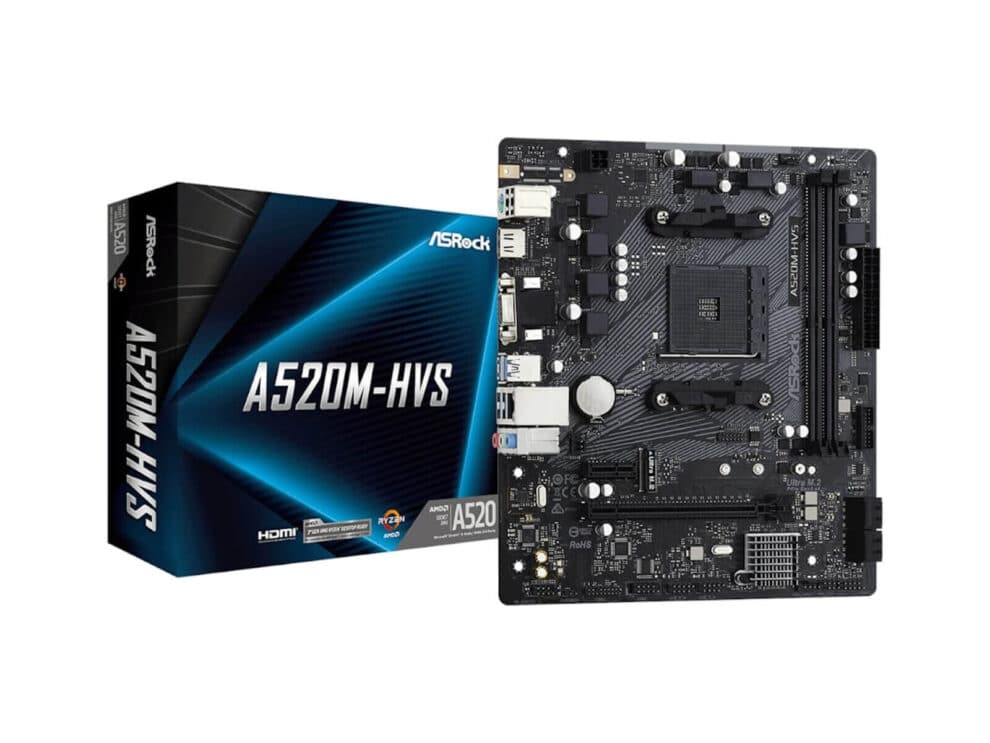

- ASRock A520M-HVS AMD AM4 m-ATX Motherboard – Black x1
