Massive 420 × 420 × 500 mm build volume | Speeds up to 600 mm/s | Precise auto-levelling | Wi-Fi, app and cloud control | Power-loss resume
Quick Specs
- Print ambitious creations with a massive 420 mm × 420 mm × 500 mm build volume — room for truly large-scale single-piece prints
- Achieve faster results with print speeds of up to 600 mm/s, cutting waiting time without sacrificing quality
- Enjoy reliable first-layer adhesion every time thanks to precise auto-levelling and a PEI magnetic spring hotbed
- Stay in control from anywhere — manage prints via the Anycubic App, AC Cloud, or Anycubic Slicer Next over Wi-Fi
- Print with confidence knowing power-loss resume and filament runout detection protect your long prints from interruption
Scale Up Your 3D Printing

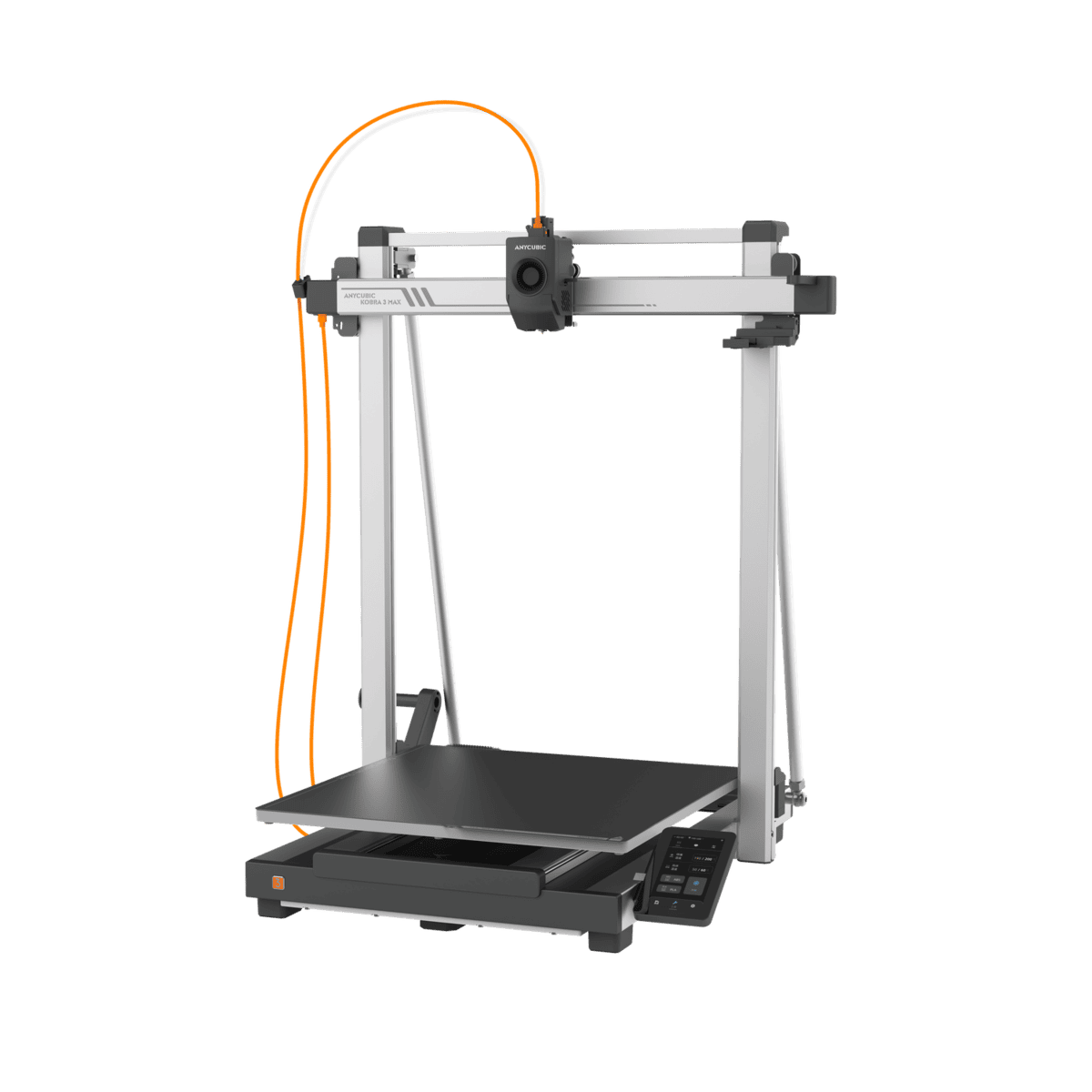

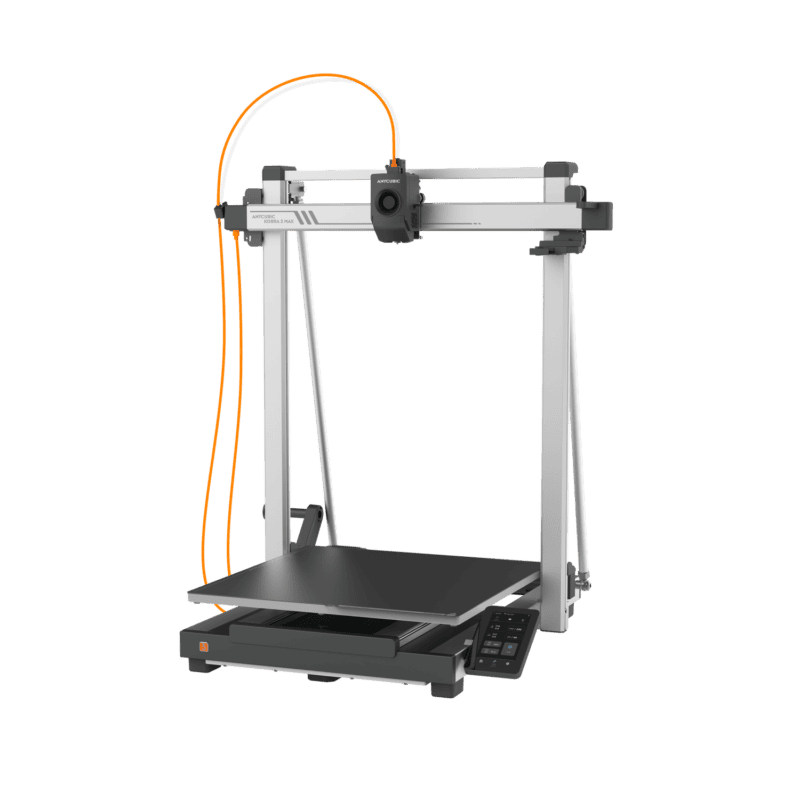

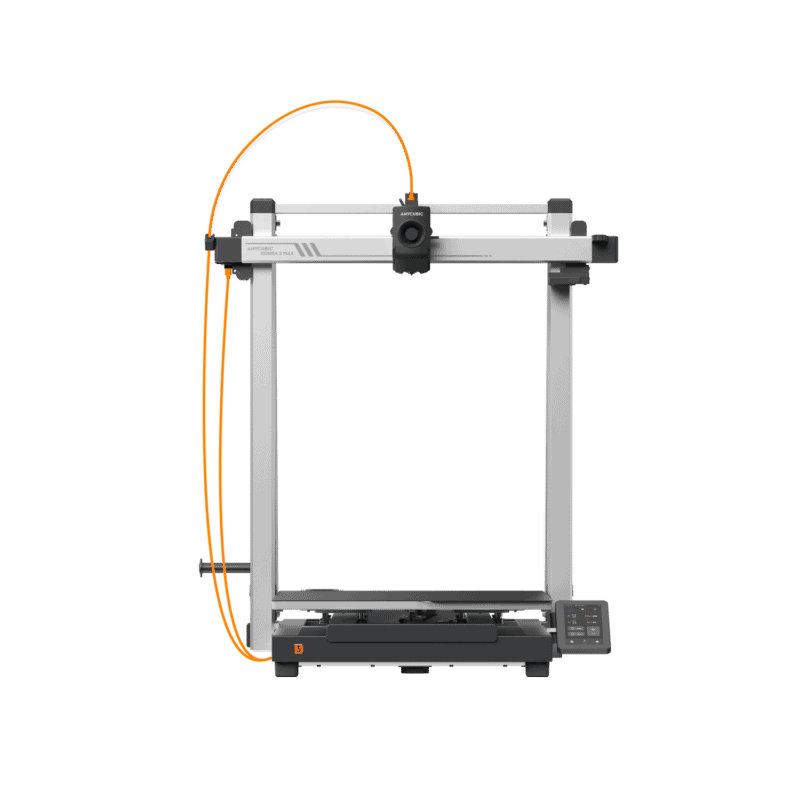

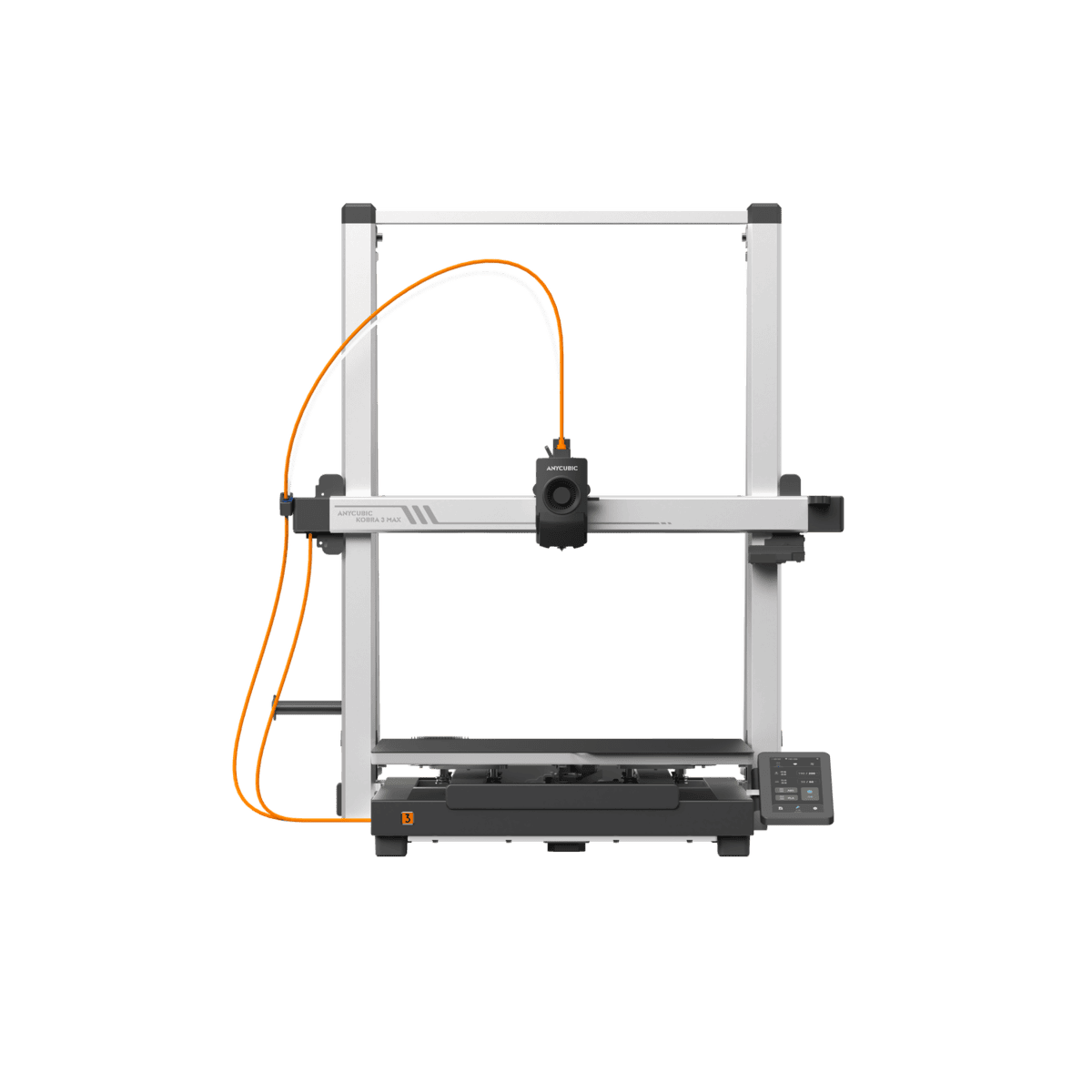

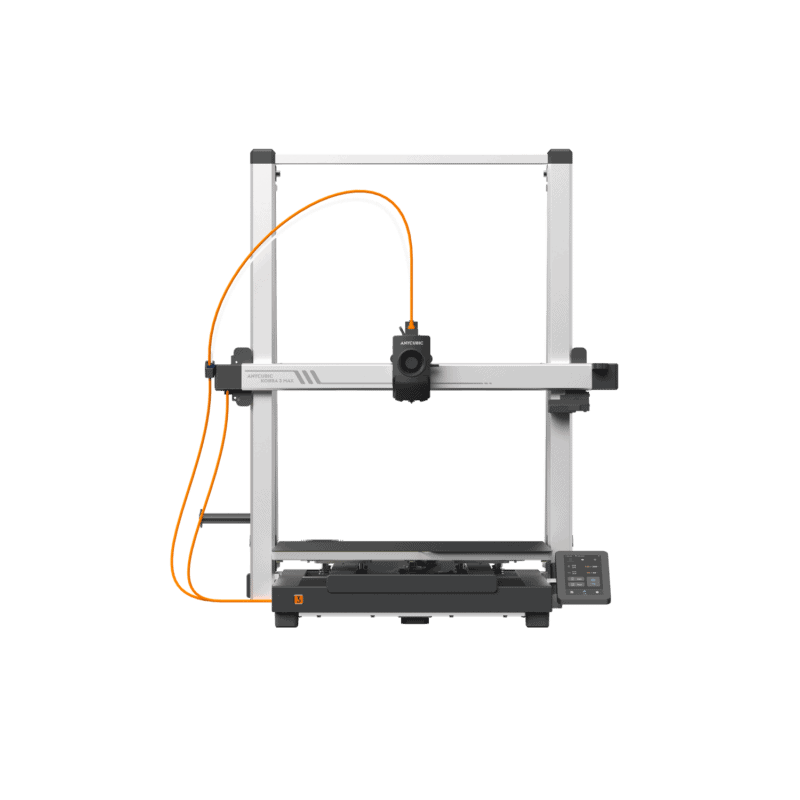

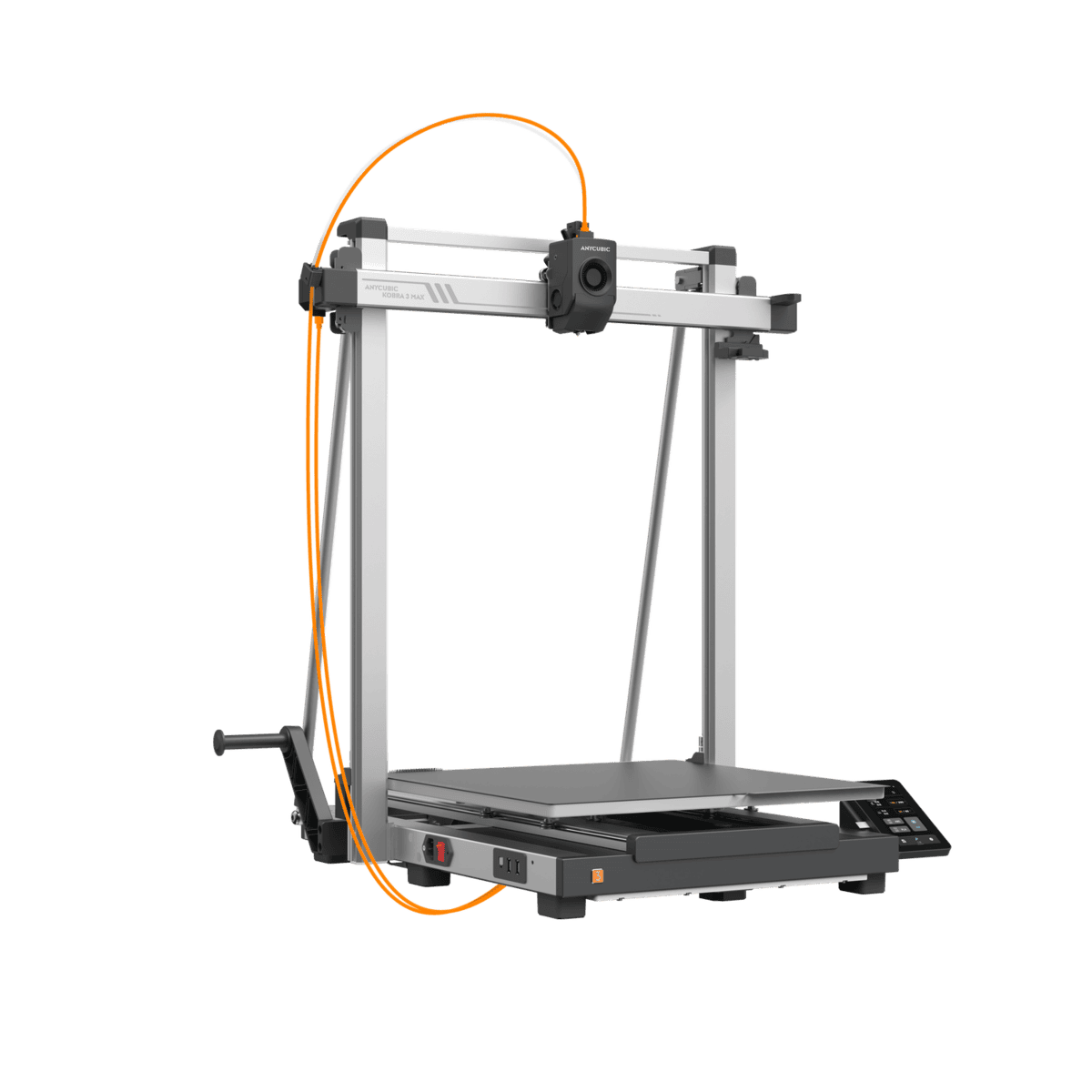

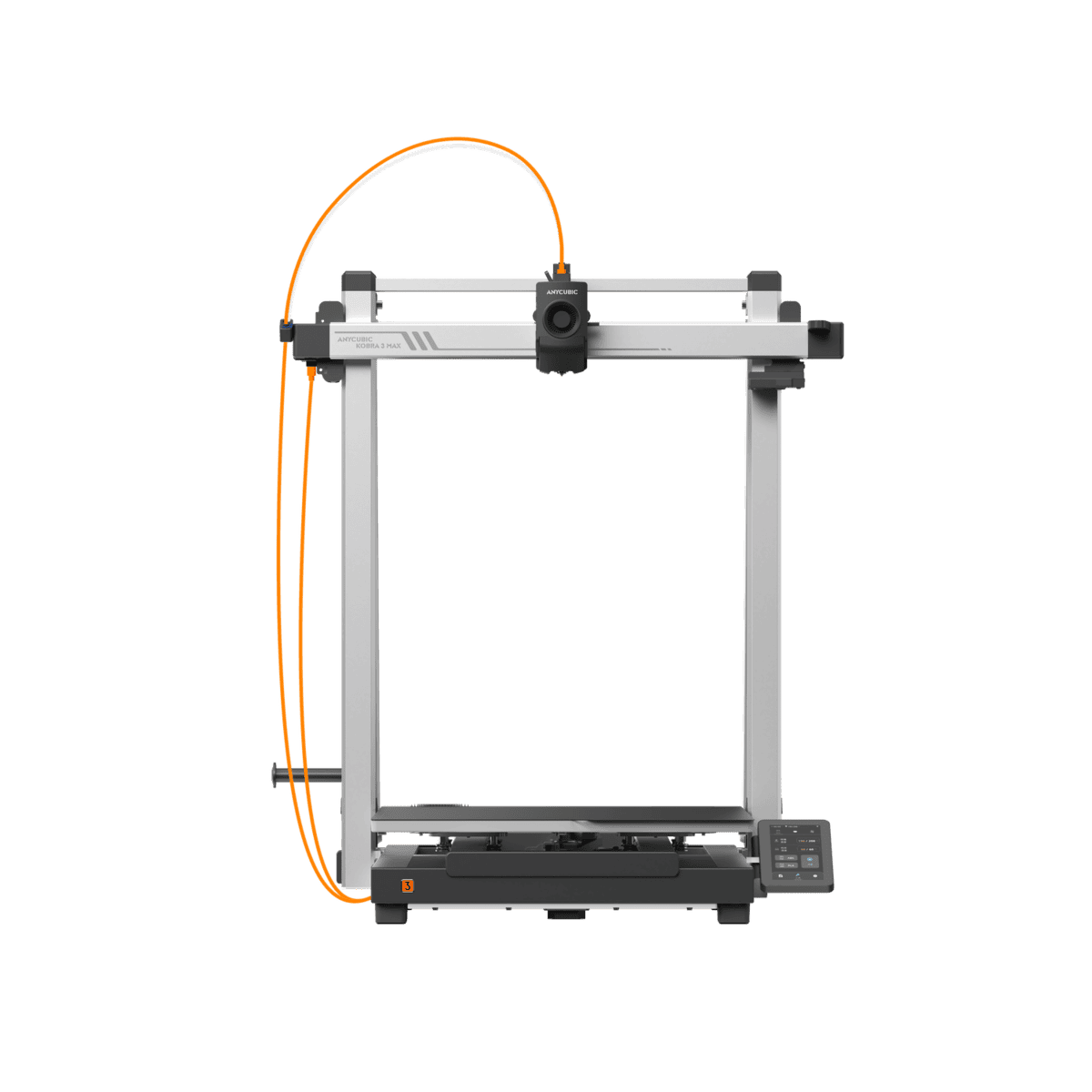

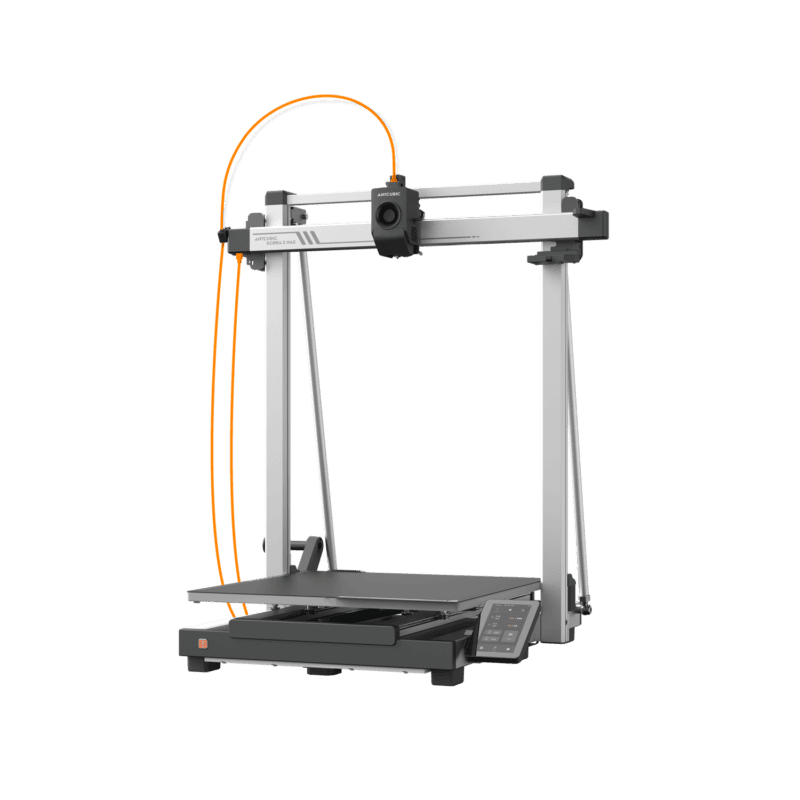

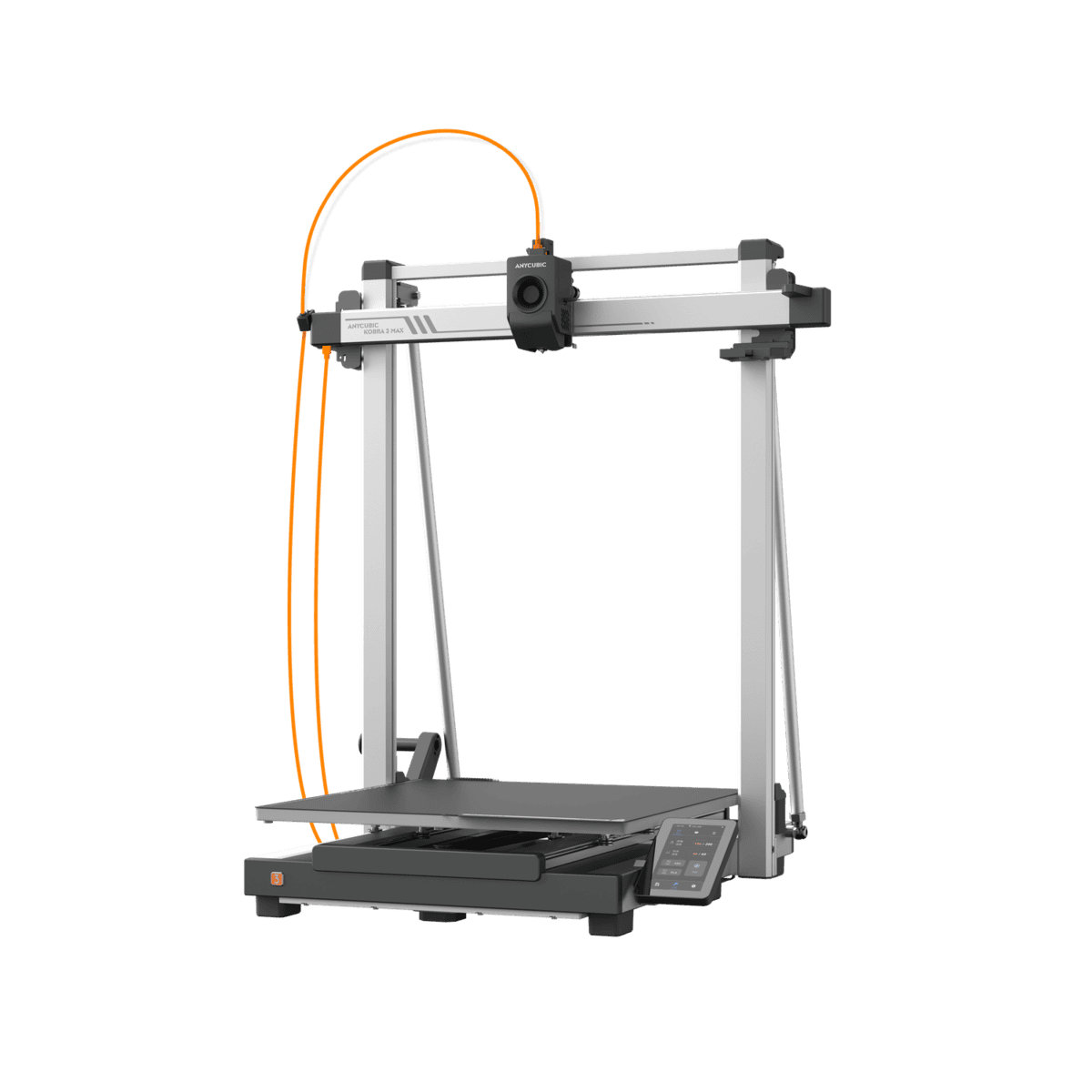

The Anycubic Kobra 3 Max is a large-format FDM 3D printer built for makers, designers, and hobbyists who are ready to stop thinking small. With a 420 mm × 420 mm × 500 mm build volume, it lets you produce genuinely large prints in a single run — from cosplay props and architectural models to functional prototypes and statement display pieces. Pair that with print speeds of up to 600 mm/s and you have a machine that matches ambition with efficiency.
A Bed You Can Trust, Every Single Print
Tired of spending more time levelling your bed than actually printing? The Kobra 3 Max takes that frustration away with its precise auto-levelling system, which probes the hotbed automatically and compensates for any surface variation before each print begins. The PEI magnetic spring board provides reliable adhesion during printing and releases finished parts cleanly once cooled, so you spend less time fussing and more time making.
Intelligent Protection for Long Runs
Long prints on a large machine deserve long-print protection. The Kobra 3 Max includes both power-loss resume and filament runout detection with auto resume. If the power cuts unexpectedly, the printer picks up exactly where it left off when you turn it back on. If your filament spool runs dry mid-print, it alerts you to reload and then continues — keeping hours of print time from going to waste.
Connect, Slice, and Print Your Way
The Kobra 3 Max gives you multiple ways to work. Slice models in Anycubic Slicer or Orca Slicer, send files via USB drive or over Wi-Fi through AC Cloud and Anycubic Slicer Next, and monitor and control print jobs remotely from your phone using the Anycubic App. The onboard touchscreen handles quick adjustments right at the machine, and a dedicated port for cameras and other peripherals is available for expanded monitoring. Supported filaments include PLA, TPU, PETG, and ABS, giving you genuine material flexibility within a single machine.
Features
- Large 420 mm × 420 mm × 500 mm build volume for oversized single-piece prints
- FDM printing technology with a single 0.4 mm nozzle and layer thickness range of 0.08–0.28 mm
- Print speeds up to 600 mm/s for faster turnaround on large projects
- Precise auto-levelling system for consistent first-layer adhesion without manual adjustment
- PEI magnetic spring hotbed for reliable adhesion during printing and easy part removal after cooling
- Power-loss resume automatically continues a print after an unexpected power cut
- Filament runout detection with auto resume prevents failed prints due to empty spools
- Wi-Fi connectivity (2.4 GHz) with support for AC Cloud, Anycubic App, Anycubic Slicer Next, and USB drive printing
- Compatible with PLA, TPU, PETG, and ABS filaments
- Touchscreen control panel with multilingual support
- Camera and peripherals port available for optional video monitoring
- Dual metal spindles on Y-axis and lead screws on Z-axis for stable, accurate motion
Specifications
- Printer Technology: FDM (Fused Deposition Modelling)
- Printing Volume: 420 mm (L) × 420 mm (W) × 500 mm (H)
- Print Layer Thickness: 0.08 – 0.28 mm
- Max Printing Speed: Up to 600 mm/s
- Supporting Filaments: PLA, TPU, PETG, ABS
- Nozzle Diameter: 0.4 mm
- Hotbed Material: PEI magnetic spring board
- Extrusion Type: Single
- Motion System Y-axis: Double metal spindles
- Motion System Z-axis: Lead screws
- Auto-Leveling: Auto-Level (Precise Auto-Leveling)
- Power Loss Resume: true
- Filament Detection and Auto Resume: true
- Control and Print Methods: Touchscreen, Anycubic App, Anycubic Slicer Next, U-Disk, AC Cloud
- Touchscreen: Yes (Touchscreen)
- Video Monitoring: Yes (Cameras and Other Peripherals port available)
- Multilingual Support: Yes
- Slicer Software: Anycubic Slicer, Orca Slicer
- Input File Formats: .STL,.OBJ,.3mf
- Output File Formats: G-code
- Connectivity: U-DISK, AC Cloud, Anycubic Slicer Next, Wi-Fi
- Wi-Fi Spec: 2.4G (2.400-2.4835GHz); Working Mode: AP, STA, AP+STA
- Machine Dimensions: 706 mm (L) × 640 mm (W) × 753 mm (H)
- Machine Weight: ~18 KG
- Power Input: 110 V / 220 V AC
- Rated Power: 1100 W
- Warranty: 12 Months
What’s in the Box
- Anycubic Kobra 3 Max Printer Frame x1
- Base Housing x1
- Printhead x1
- Touchscreen x1
- Spool Holder x1
- Cable Holder x1
- Support Rod x1
- Bag No.1 (Frame screws) x1
- Bag No.2 (Support Rod screws) x1
- Bag No.3 (Printhead Cable screws) x1
- Bag No.4 (Printhead screws) x1
- Bag No.5 (Touchscreen screws) x1
- Bag No.6 (Spool Holder screws) x1
- U Disk x1
- Power Cord x1
- Cable Organiser x5
- Filament Tube x1
- Allen Keys (6.0 / 4.0 / 3.0 / 2.5 / 2.0 / 1.5 mm) x1 set
- Wrench x1
- Nozzle Cleaner x1
- Filament (sample) x1
- Grease x1
- User Manual x1
