The latest generation of the Antec Atom G750 Gold modular power Supplies offers unparalleled stability and protection with an 80 PLUS® Gold certification. Thanks to top-grade technologies such as CircuitShield and its Thermal Manager, you can rest assured to get the best out of your Atom without worrying about any instability.

Antec’s CircuitShield™ suite of industrial-grade protections ensures that the power delivered to your system is safe and reliable in any environment. The Advanced thermal control enables optimal balance between silence and cooling, and a quiet 135 mm silent fan completes the package.

### FEATURES:

- 80 Plus Gold Certified – To reduce your electricity bill
- CircuitShield – Full suite of protection management
- 135mm Silent Fan
- FLAT Cable
- Thermal Manager – An advanced fan control for optimal heat & noise management
- APFC – Active Power Factor Correction

### SPECIFICATIONS:

- Type: ATX 12V 2.4
- Input Voltage: 100-240 VAC
- Input Current: 10A-5A
- Input Frequency range: 50Hz – 60Hz
- PFC: Active PFC
- Power Good Signal: 100-500ms
- Protection: OVP/UVP/SCP/OOP/NLO/OCP
- Output Capacity: 750W
- Fan: 135mm Silent Fan
- Certification: 80 Plus Gold

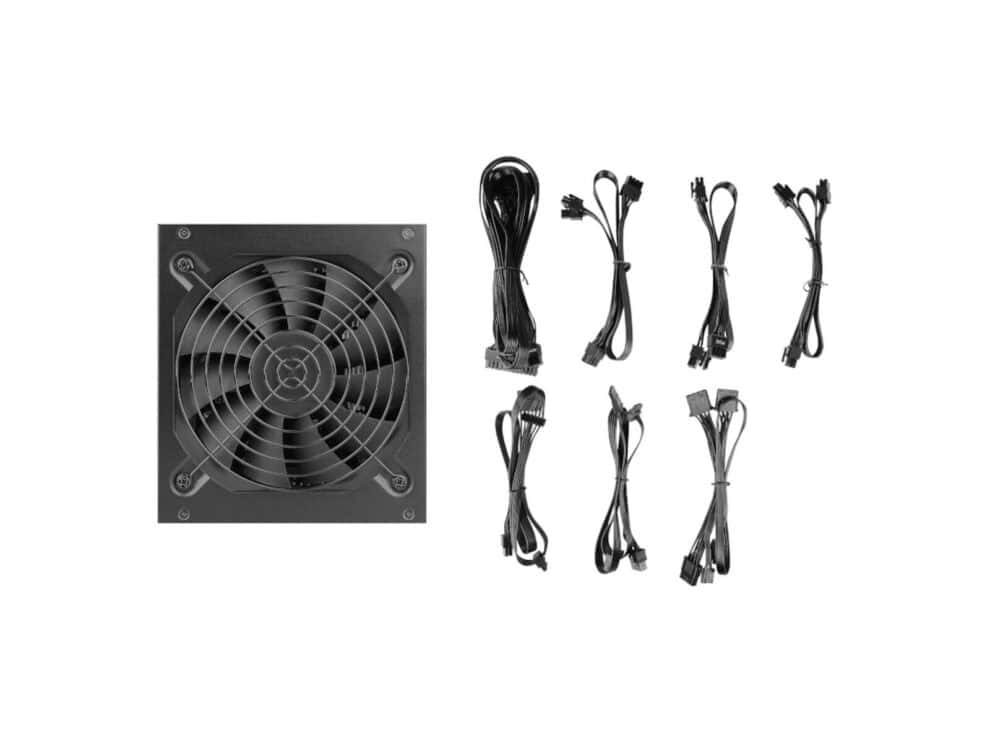

- Modular: Fully Modular
- **Connectors:**
- 1x MB 24(20+4) Pin EPS 12V
- 2 x 8(4+4) Pin EPS 12V
- 4 x 8(6+2) Pin PCI-E
- 6 x SATA
- 3 x Molex
- 1 x FDD
- Dimension: 16.5 x 15 x 8.6 cm
