General Specification’s

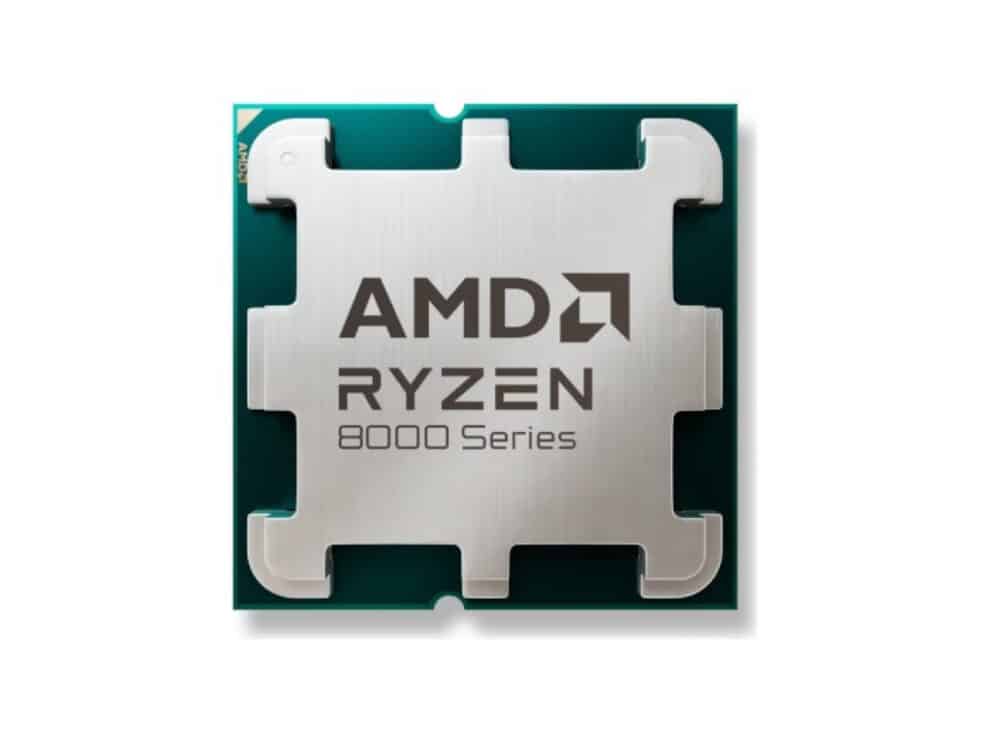

Name: AMD Ryzen™ 7 8700F
Family: Ryzen
Series: Ryzen 8000 Series
Form Factor: Desktops
AMD PRO Technologies: No
Architecture: Zen 4
Number of CPU Cores: 8
Multithreading (SMT): Yes
Number of Threads: 16
Max. Boost Clock: Up to 5 GHz
Base Clock: 4.1 GHz
L2 Cache: 8 MB
L3 Cache: 16 MB
Default TDP: 65W
AMD Configurable TDP (cTDP): 45-65W
Processor Technology for CPU Cores: TSMC 4nm FinFET
CPU Compute Die (CCD) Size: 178mm²
Package Die Count: 1
Unlocked for Overclocking: Yes
AMD EXPO™ Memory Overclocking Technology: Yes
Precision Boost Overdrive: Yes
Curve Optimizer Voltage Offsets: Yes
AMD Ryzen™ Master Support: Yes
CPU Socket: AM5
Supporting Chipsets: A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology: Precision Boost 2
Instruction Set: x86-64
Supported Extensions: AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSSE3 , SSE4.1 , SSE4.2 , SSE4A , x86-64
Max. Operating Temperature (Tjmax): 95°C
OS Support: Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Native USB 4 (40Gbps) Ports: 2
Native USB 3.2 Gen 2 (10Gbps) Ports: 2
Native USB 2.0 (480Mbps) Ports: 1
PCI Express® Version: PCIe® 4.0
Native PCIe® Lanes (Total/Usable): 20 , 16
NVMe Support: Boot , RAID0 , RAID1
System Memory Type: DDR5
Memory Channels: 2
Max. Memory: 256 GB
System Memory Subtype: UDIMM
Max Memory Speed: 2x1R DDR5-5200, 2x2R DDR5-5200, 4x1R DDR5-3600, 4x2R DDR5-3600
