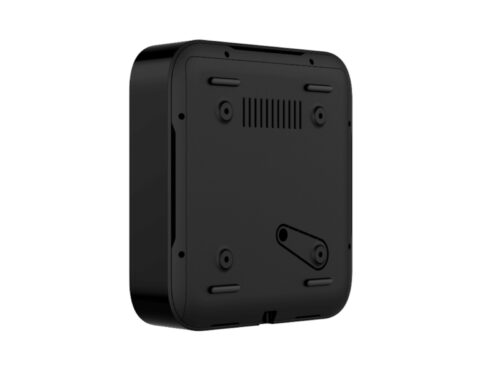

AJAX Security 16-Channel 4K NVR

Technical data:
compatibility:
Hub
Hub 2 (2G)
Hub2 (4G)
Hub 2 Plus

Video stream
channels: 16 channels (up to 4K resolution (25/30FPS))
IP cameras: ONVIF, RTSP
Storage Hard drive with a capacity of up to 16 TB (SATA connection, 3.5 inches): Decoding formats: H.265, H.264
Bandwidth: up to 100 Mbit/s

Communication channels
Ethernet: up to 100 Mbit/s
Bluetooth: BLE frequency band: 2.400 GHz to 2.4835 GHz

Key Features
Motion detection: The NVR is equipped with its own software for detecting movements in the image. The image analysis can be carried out using either NVR or camera algorithms.
In-app video management system
Video wall for the simultaneous display of images from all connected cameras.
Event filter.
Timeline with smooth preview.
Visual verification of Ajax alarms
The NVR can be used to set up a scenario in which certain cameras start recording when triggered by an Ajax detector. The results are displayed directly in the (surveillance) apps on the PC or mobile device.
Data protection
Assigning access rights to users in mobile apps and to monitoring personnel in PRO Desktop.

Power supply
Main power supply
110 to 240 V~, 50/60 Hz, 0.6 A
Up to 24 W power consumption.

Housing
Dimensions: 251 × 251 × 51mm
Weight: 700g (without hard drive)
Operating temperature range: from 0 °C to +40 °Cfrom 0 °C to +40 °Cfrom 0 °C to +40 °C
Operating temperature range Operating humidity: up to 75%
