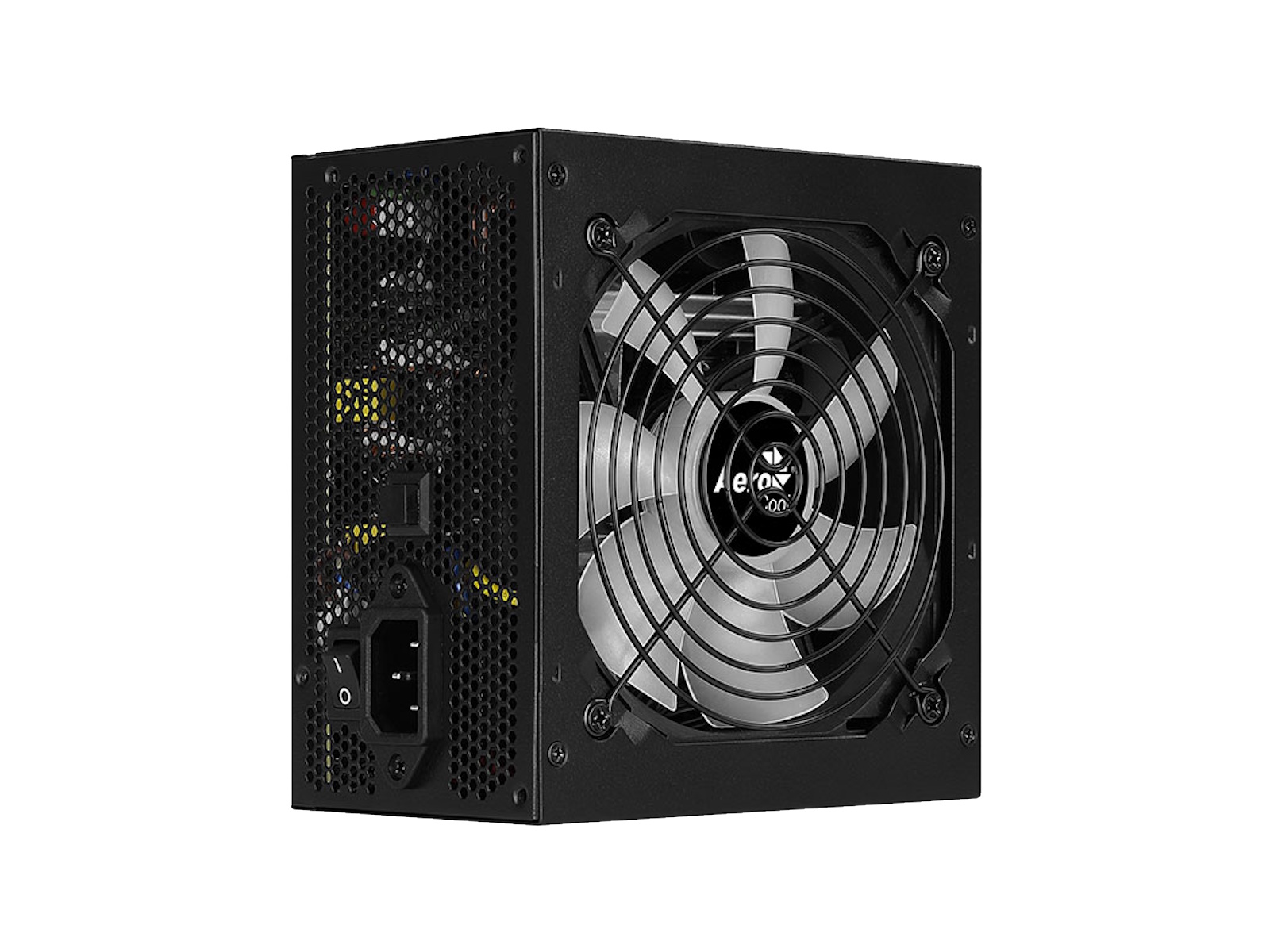

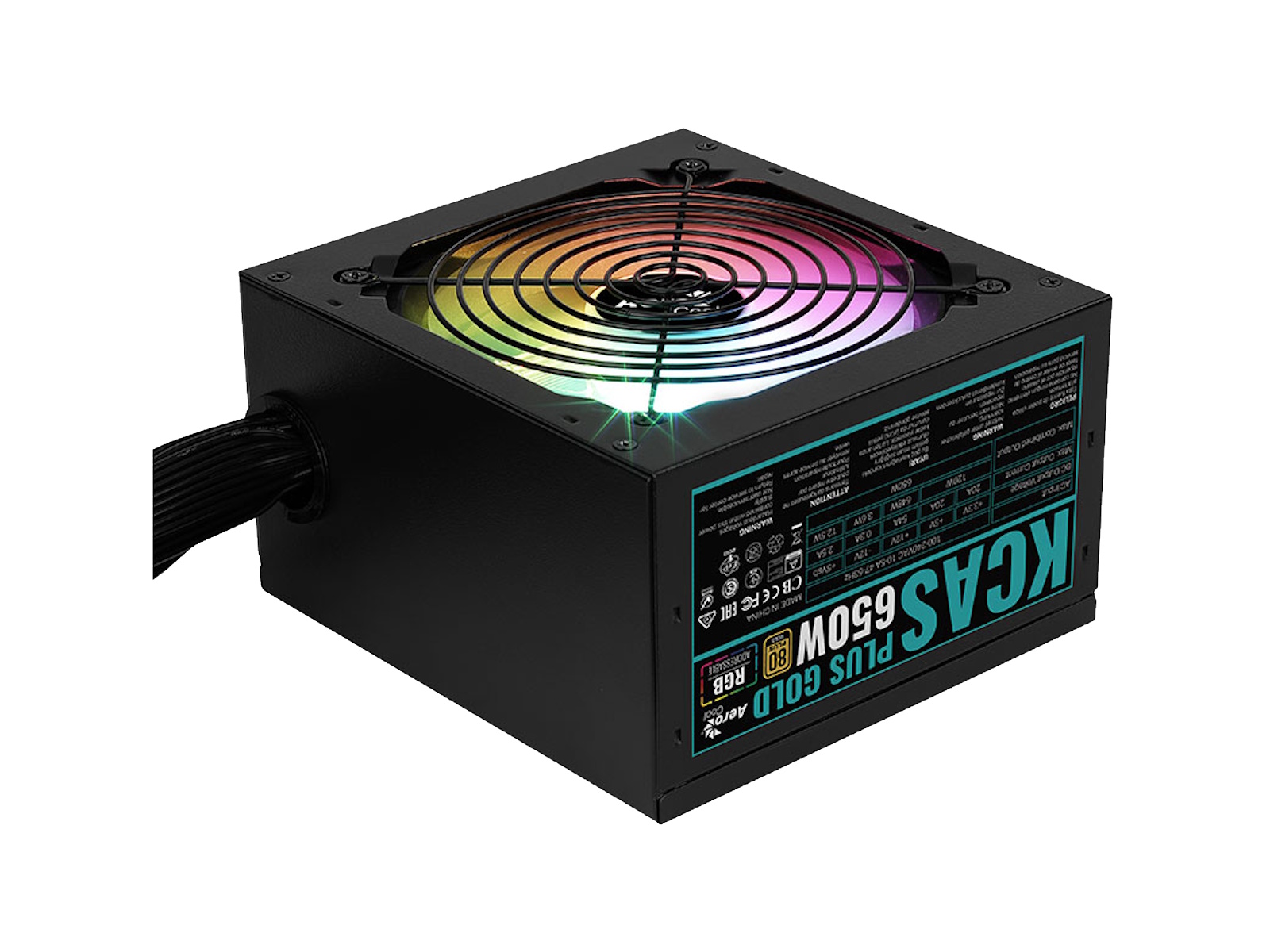

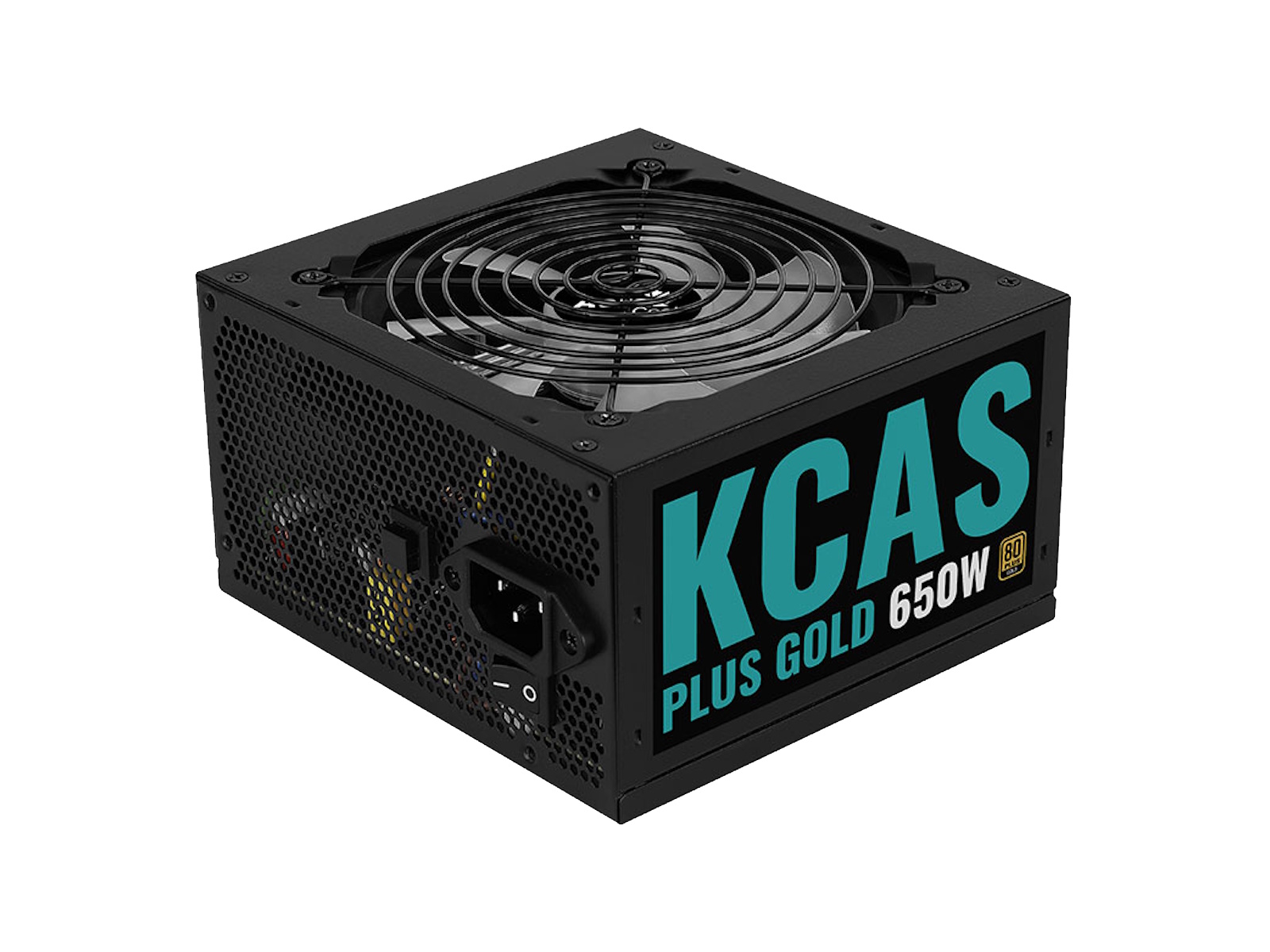

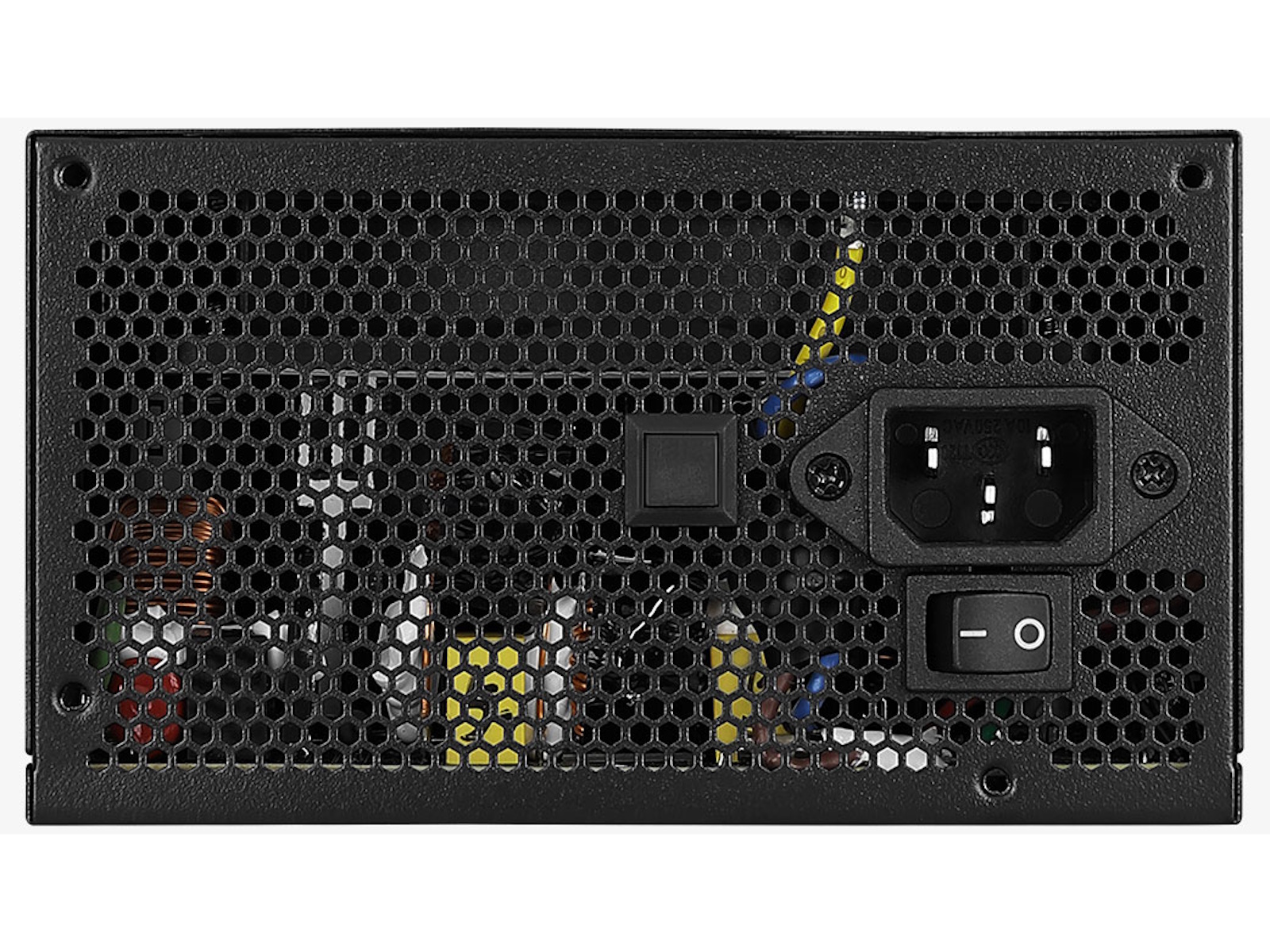

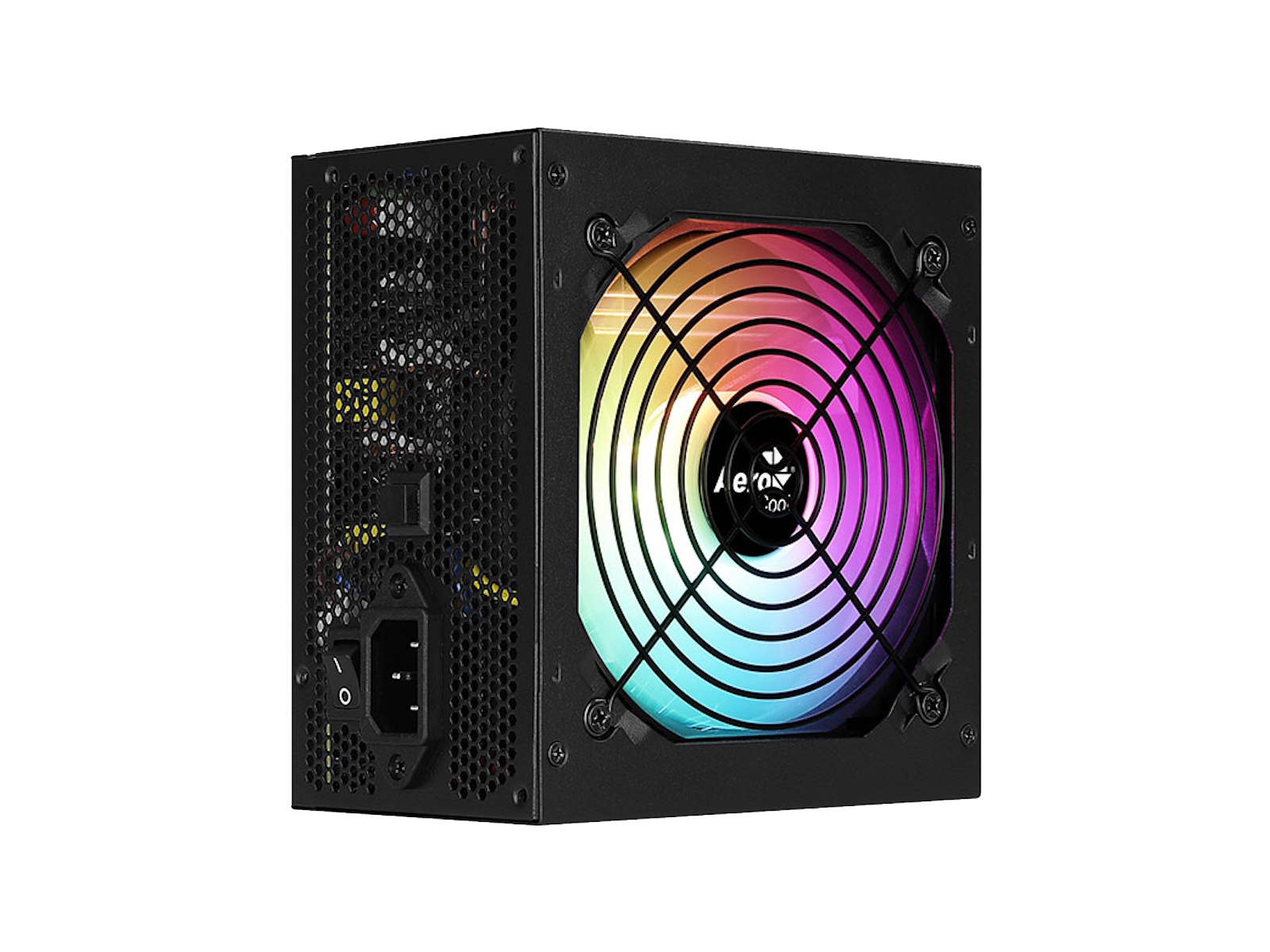

title: Aerocool KCAS PLUS GOLD 650W 80 PLUS ARGB Power Supply
date: 2025-05-05T15:44:17Z
modified: 2026-05-15T09:04:54Z
permalink: "https://tech.co.za/product/aerocool-kcas-plus-gold-650w-80-plus-argb-power-supply/"
type: product
status: publish
excerpt: 80Plus Gold Certified for up to 92%+ efficiency Compatible with Addressable RGB motherboards using ARGB connector DC-to-DC conversion circuit for higher efficiency and tight voltage regulation even under heavy cross-loading conditions Built-in 105°C Japanese main capacitors provide low ripple and higher durability
wpid: 536775
product_brand:
  - Aerocool
product_type:
  - simple
product_visibility:
  - featured
product_cat:
  - Components
  - Power Supplies
featured_image: "https://tech.co.za/wp-content/uploads/2025/05/ACPG-KP65FEC.11b.jpg"
---

- Compatible with Addressable RGB motherboards using ARGB connector
- Control up to 13 lighting effects via LED control button
- Built-in 105°C Japanese main capacitors provide low ripples and higher durability
- High-end solid state capacitors provide great DC output quality for improved noise filtering and low ripple
- Used DC-to-DC conversion circuit for higher efficiency and tight voltage regulation even under heavy cross-loading condition
- Built-in APFC providing higher voltage stabilization and lower power consumption (Active Power Factor Correction rate > 0.9)
- Equipped with 12cm high-pressure fan with optimized thermal fan speed control. Fan speed from 800 RPM to 1800 RPM allows for silent operation or high cooling productivity
- Dual CPU power connectors allows for compatibility with high-end AMD Ryzen CPUs

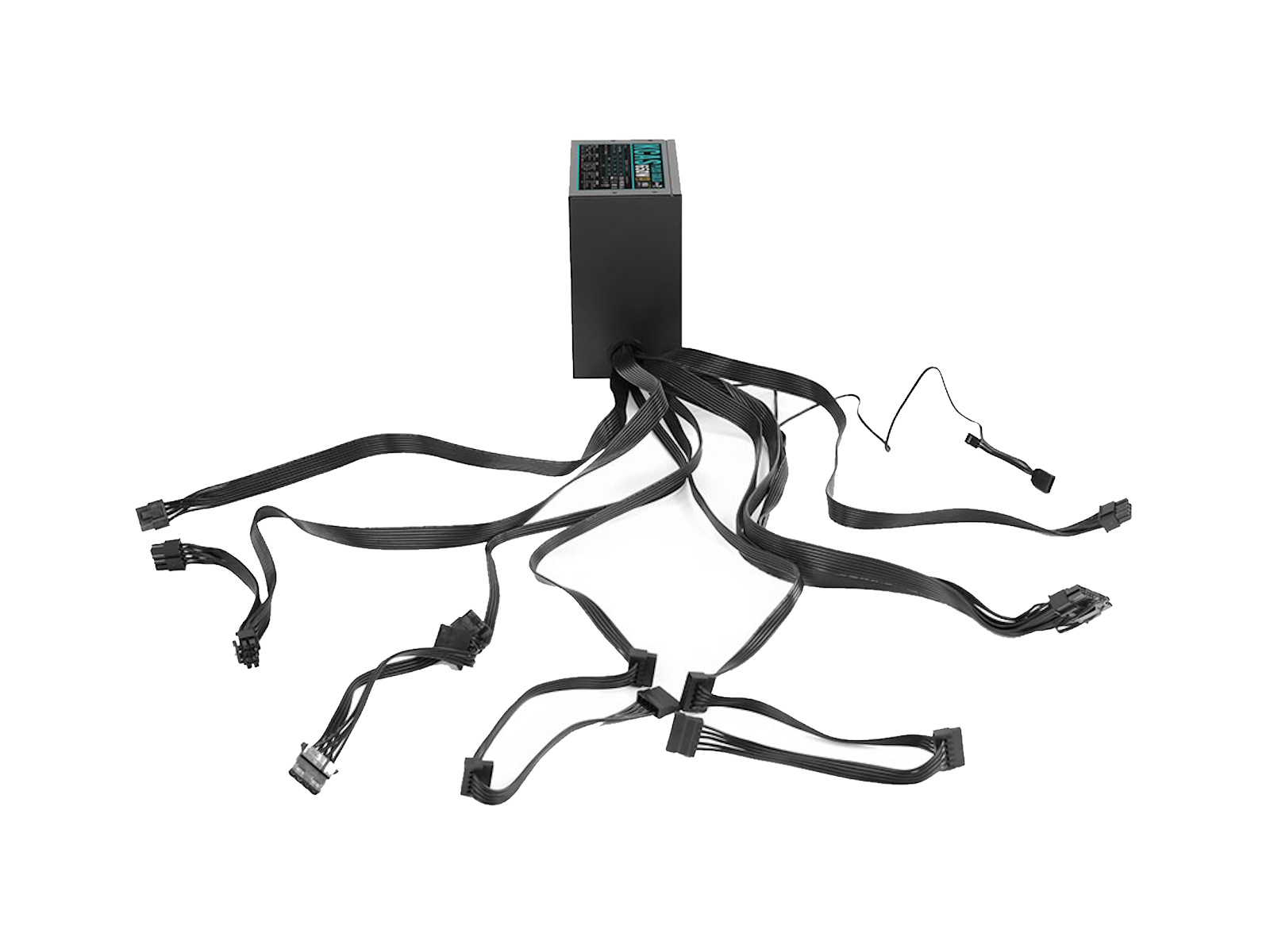

- Comes with black flat cables for neat and convenient cable management, and allows for unhindered airflow
- Compatible with all Intel form factors up to ATX12V Ver.2.52
- Delivers real output wattage at ambient temperatures of 40°
- Fully EMC Compliant
- Compliant with ErP 2013 Lot 6 for high energy efficiency
- ROHS (Restriction of Hazardous Substances) certified

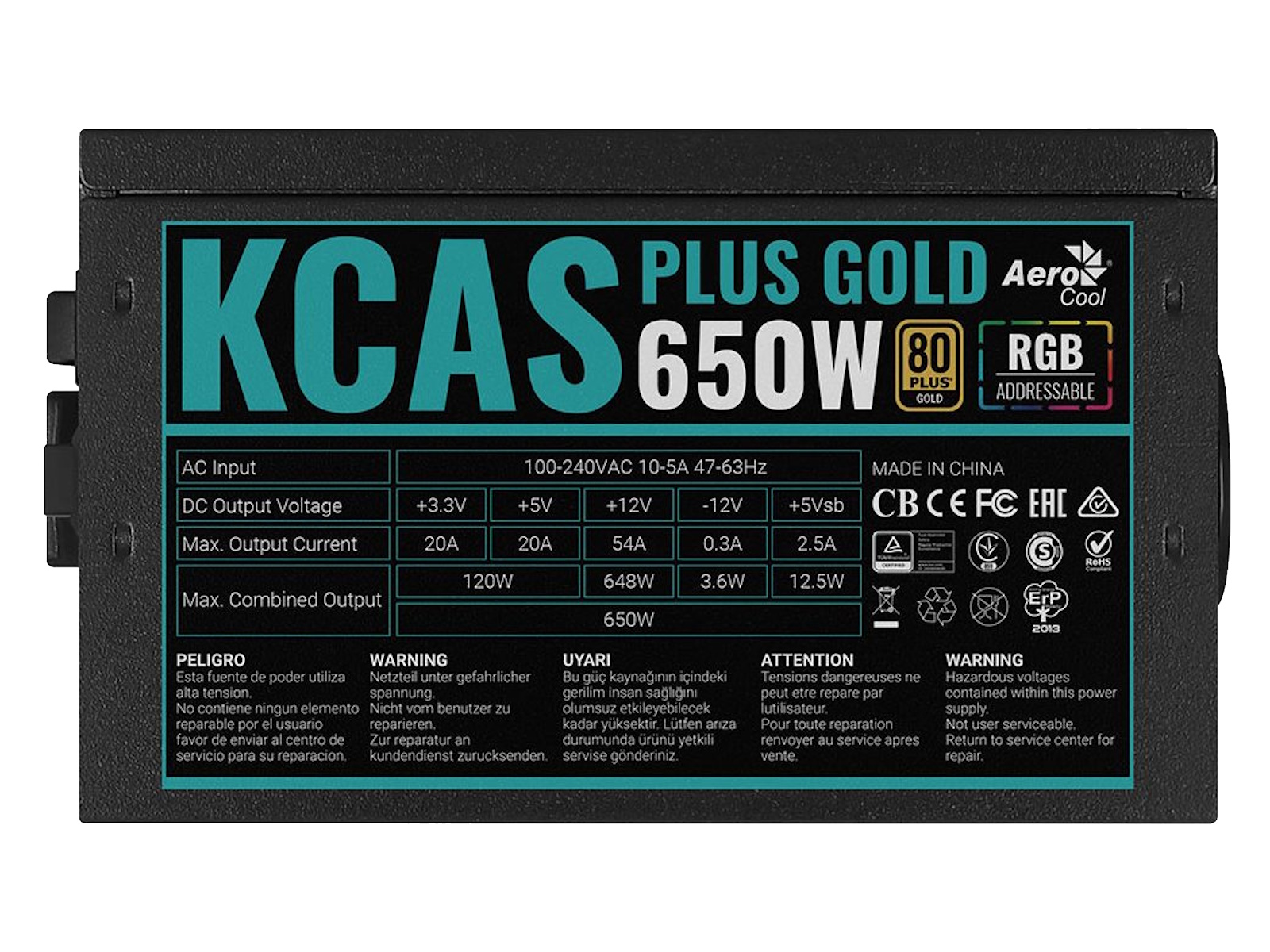

| **AC Input** | 100-240Vac 10-5A 47-63Hz |  |  |  |  |
| --- | --- | --- | --- | --- | --- |
| **DC Output** | +3.3V | +5V | +12V | -12V | +5VSB |
| **Max Current** | 20A | 20A | 54A | 0.3A | 2.5A |
| **Max.Combined Power** | 120W | 648W | 3.6W | 12.5W |  |
| 650W |  |  |  |  |  |
