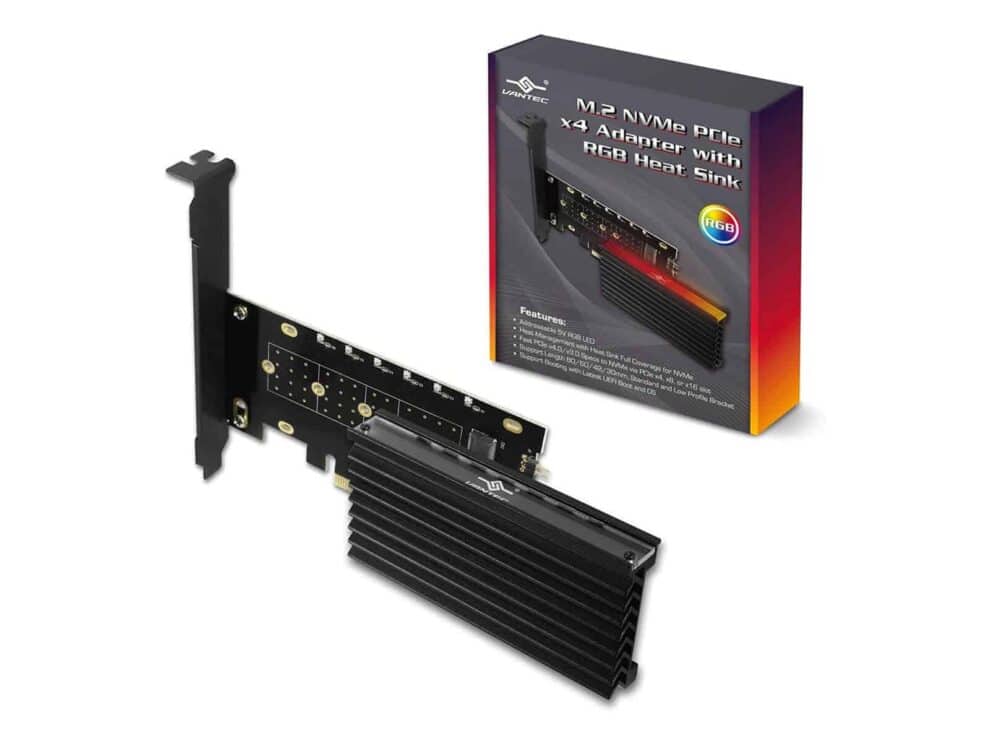

This M.2 NVMe PCIe x4 Adapter with ARGB Heat Sink is a unique product, it is designed for a very fast M.2 NVMe module and comes with ARGB (Addressable RGB) LED to enhance the lighting in your system chassis. It is enhanced with two-level of heat management to protect the NVMe module; a Big Aluminum Heat Sink Block to covering the whole NVMe module for dissipating heat. The NVMe mounting support M.2 module of different length from 30, 42, 60, or 80 mm. This adapter offers the fastest boot or data access. The PCIe interface using 4 lanes of data path straight to the NVMe resulting in super-fast boot/data transfer and the coolest ARGB lighting inside the chassis
M.2 Type Support: NVMe using M Key (PCIe 3.0×4) or NVMe using B+M Key (PCIe 3.0×2)

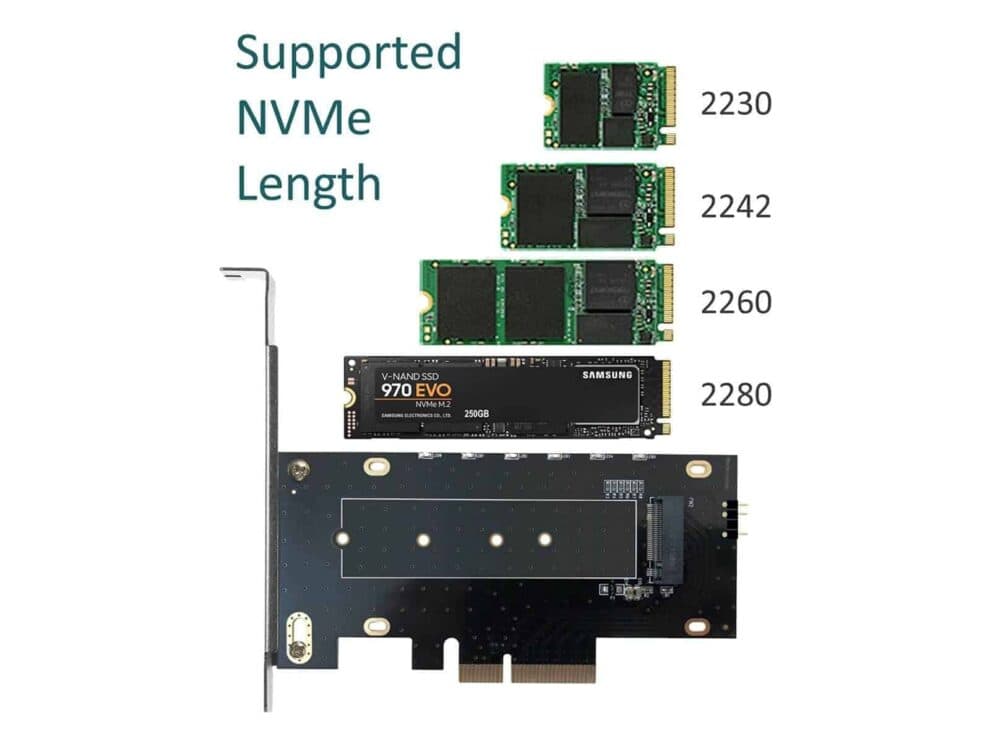

M.2 size: Length support 22×80, 22×60, 22×42, 22x30mm
Internal Interface: 1 x M.2 (NGFF), M Key
PCIe Interface: PCIe v4.0/v3.0/v2.0 x4 (4 lanes)
Power: PCIe Bus powered (3.3V)/RGB Powered
Dimensions: 120 x 62 x 16 mm
Weight: 146 g
RGB Cable length: 19.7 inches /500 mm
RGB Header: 5V ARGB, 3-pin header
RGB Specs Support: Asus Aura, MSI Mystic Light, Gigabyte Fusion
OS support: Windows® 7/8/8.1/10, or Linux
System Requirements:
Available system board PCIe x4 or x8 or x16 slot
Optional: 5V RGB header (3-pin)
OS support like Windows® 7/8/8.1/10, or Linux
For booting, requires UEFI System Board and latest OS
