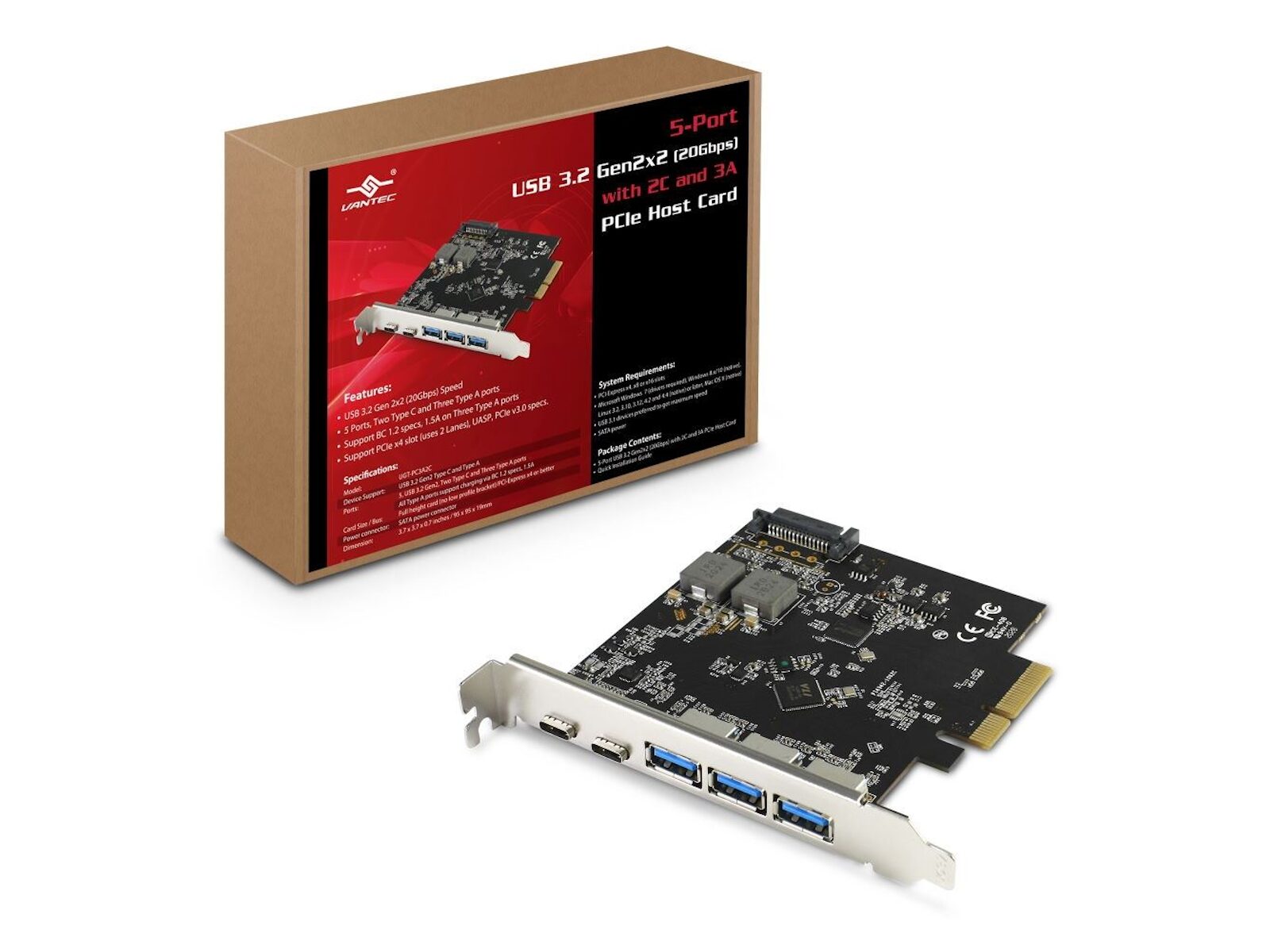

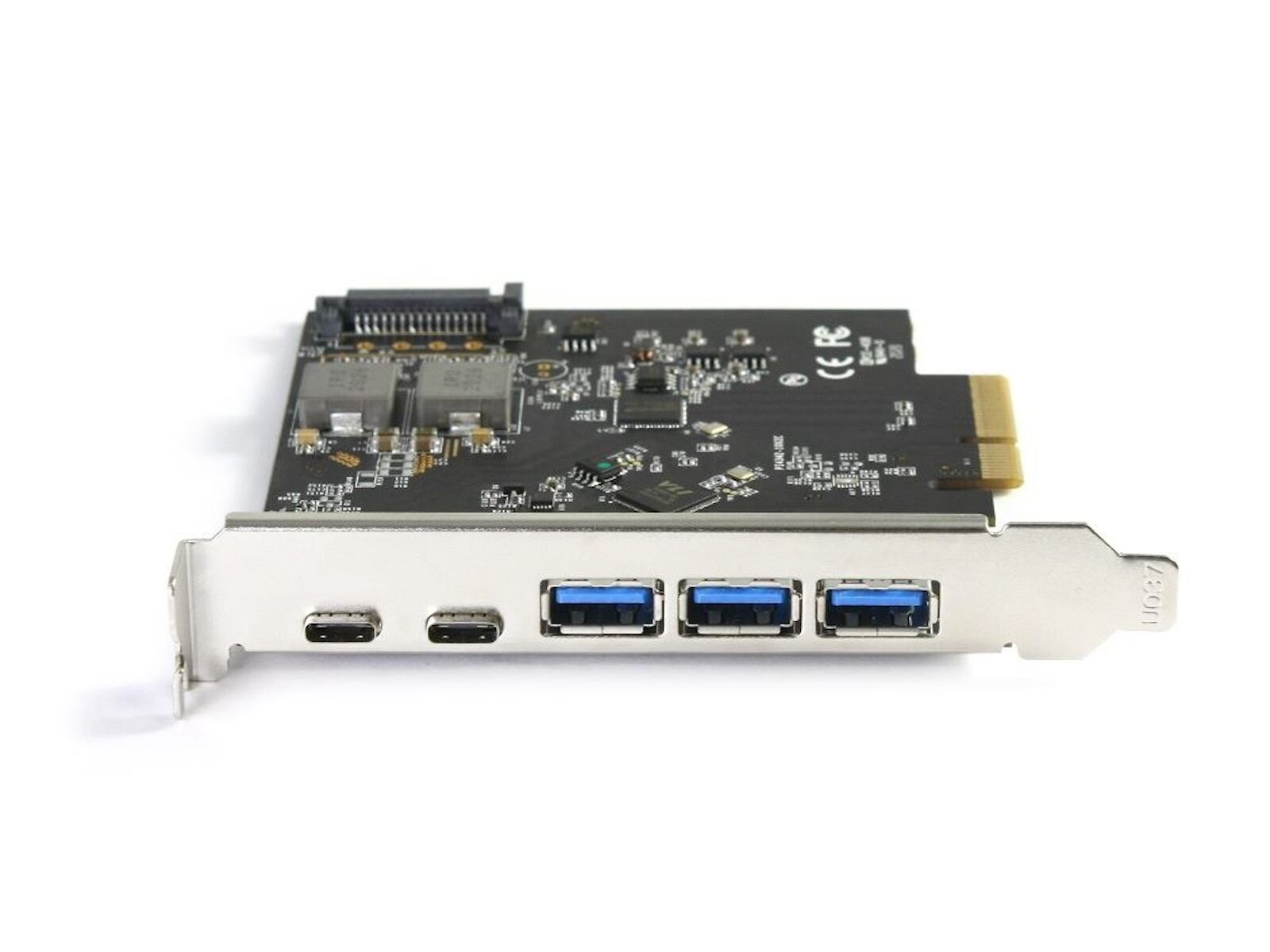

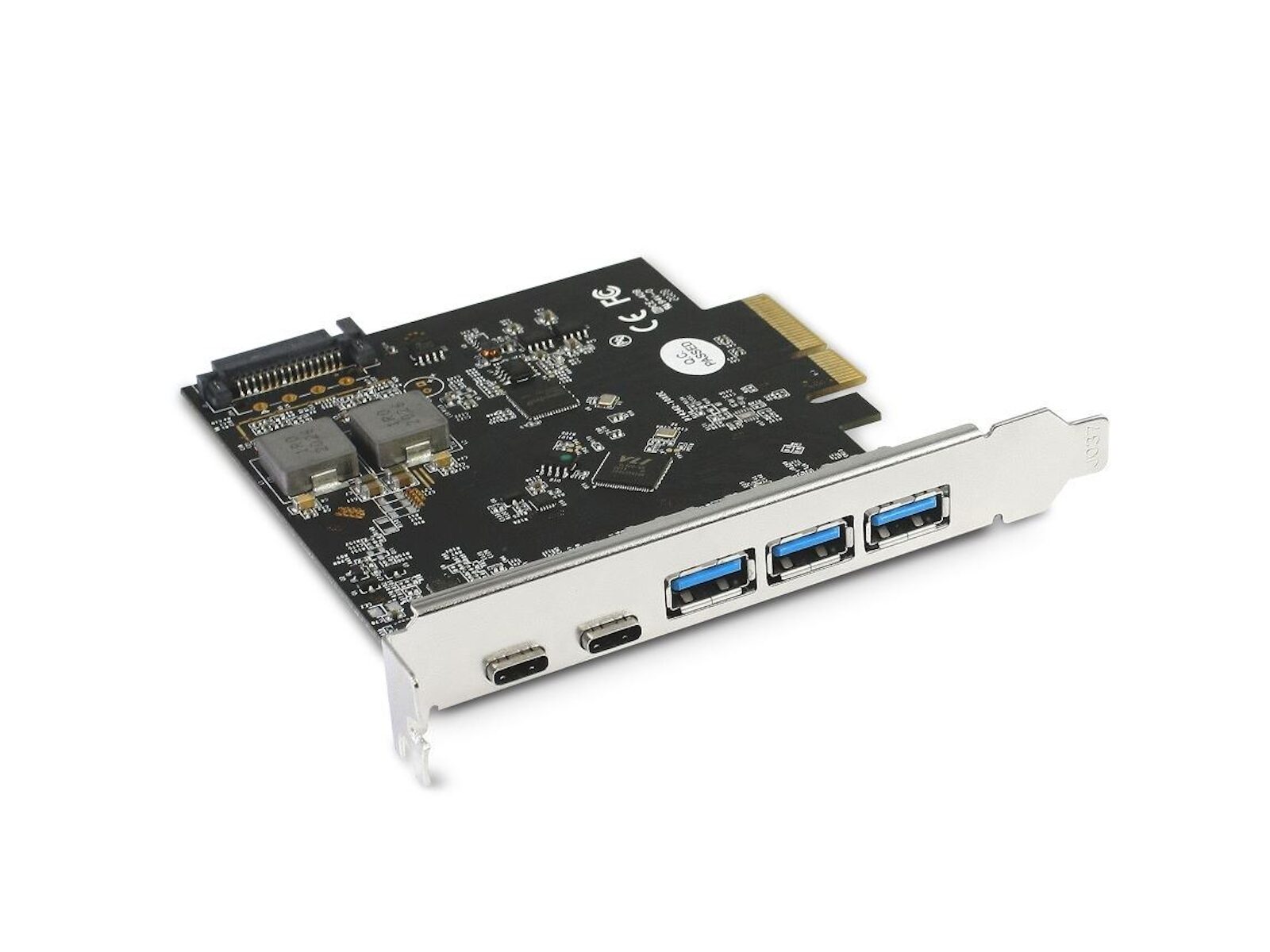

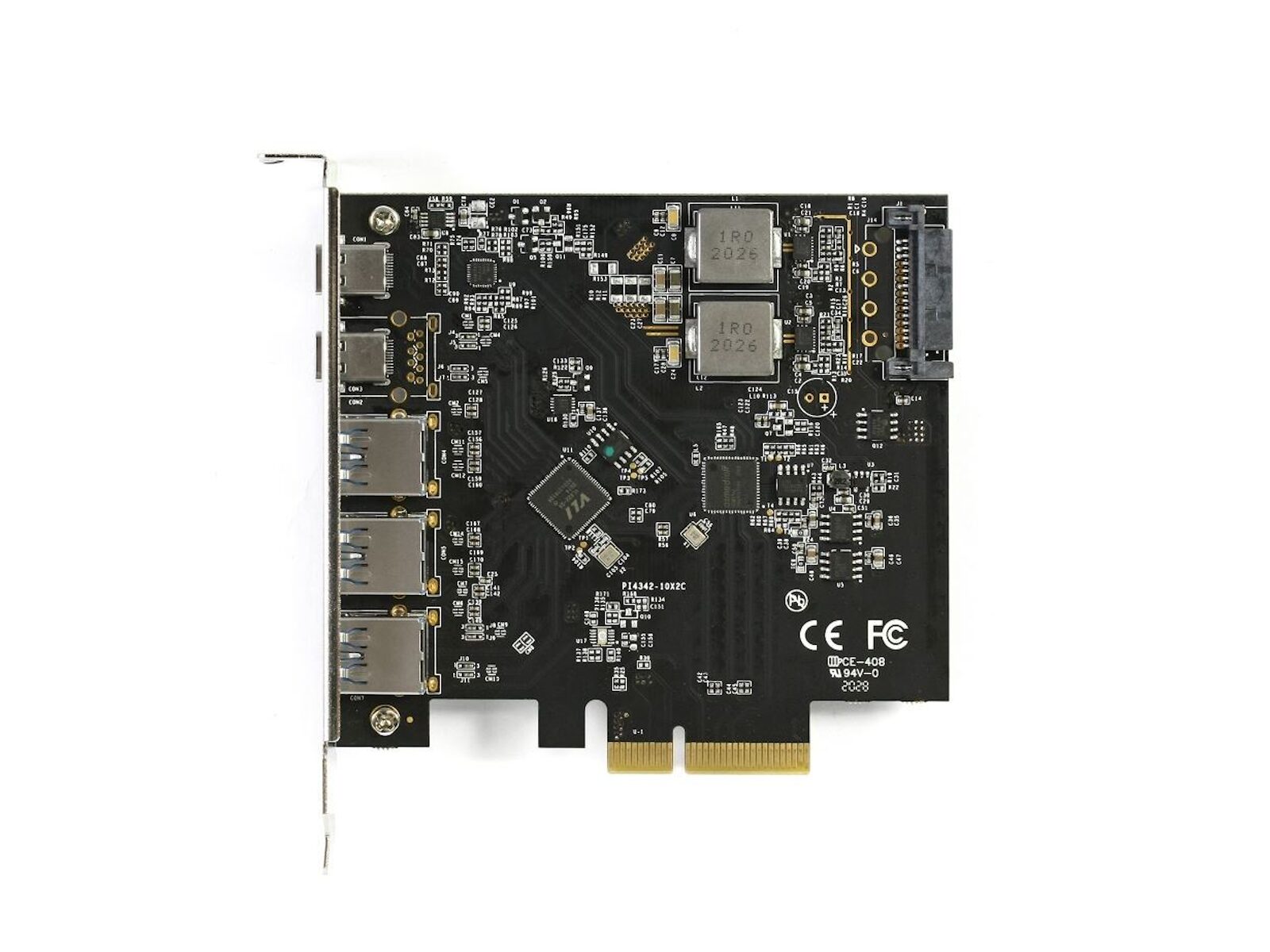

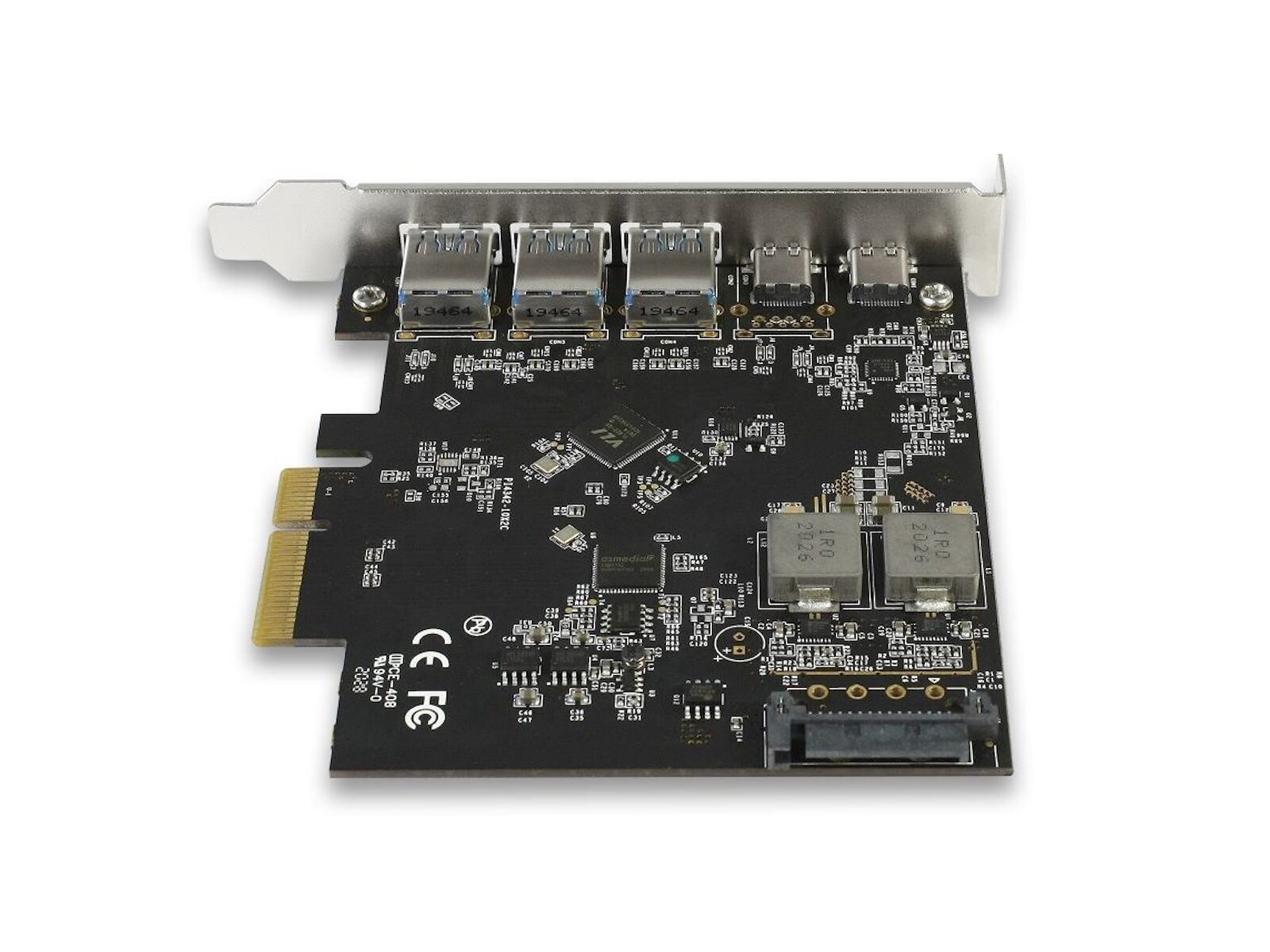

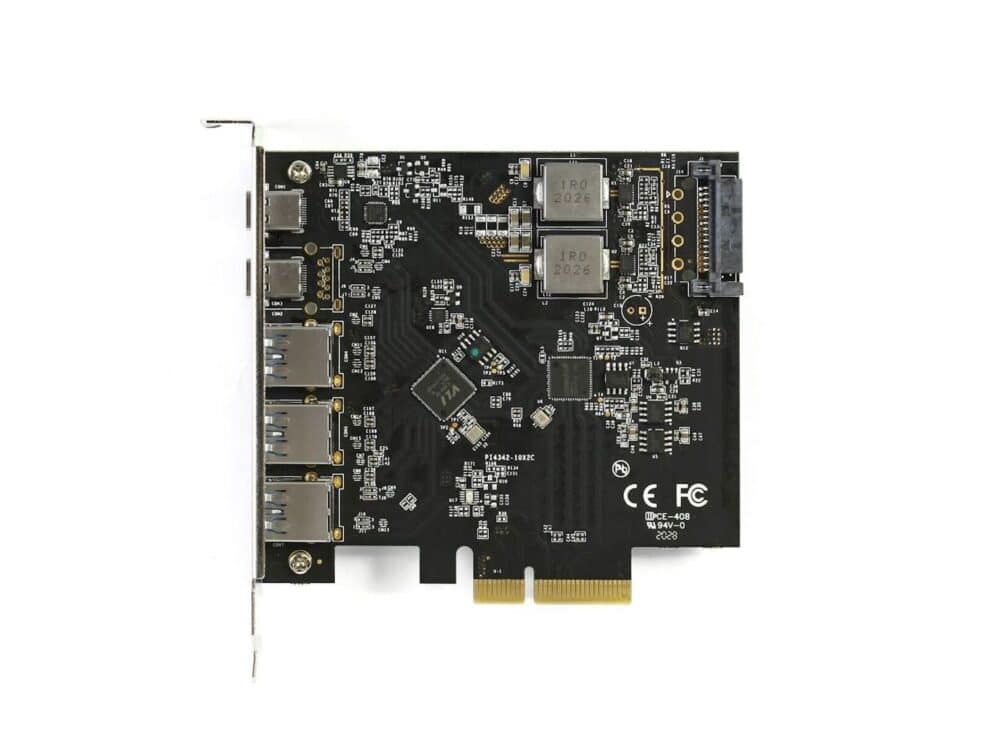

Vantec 5-Port USB 3.2 Controller Card – 2x USB-C, 3x USB-A

The Vantec 5-Port USB 3.2 Gen 2×2 (Total 20Gbps) 2C 3A PCIe Host Card is designed to offer the latest in USB 3.2 Technology.  It provides the flexibility of Two Type C and Three Type A ports all on one card. This design links the PCIe Gen3 x2 from the PCIe Bus to all five ports. All three Type-A ports support Battery Charging Specs 1.2 with 1.5A per port. Each port is capable of a theoretical speed of 10Gbps which is twice the speed of older USB 3.0(5Gbps). This speed enables you to access/transfer data extremely faster, and with backward compatibility to older USB 3.0, USB 2.0 or USB 1.1.

• USB 3.2 Gen 2×2 (Total 20Gbps) Speed to give you the Maximum File Transfer or Backup.
• Support PCIe x4 slot(use 2 lanes) interface with wider lanes for speed and large amount of data.
• Support UASP Devices on both ports for extra boost in speed when using latest OS.
• Support PCI-Express 3.0 specifications for increase speed thru the PCIe Bus.
• Support for Windows and Linux OS for latest Technology
• USB 3.1 Type C Port for Newer devices and Type A for Compatibility with older USB 3.0 and 2.0.
• Full height PCIe x2 (requires x4 slot)
• Backward compatible with legacy USB 3.0, 2.0 and 1.1
• Compliant with extensible Host Controller interface specification Revision 1.1
• Support Control, Bulk, Stream, Interrupt, Isochronous transfer type
• Supports PCI Express® Card Electromechanical Specification Release 2.0
• Supports PCI Bus Power Management Interface Specification Release 1.2
• Support driver on Windows 7 and native drivers within Windows 8/8.1/10
• Support Linux kernel 3.13.0 & above

Device Support:    USB 3.2 Gen2x2 (Total 20Gbps) Type C and Type A

Ports:    5, USB 3.2 Gen2, Two Type C and Three Type A ports

              Type A ports support BC 1.2 specs, 5V@1.5A or Bus-powered at 5V@1.5A

              Type C ports support 5V@3A

Bus Technology:    PCI-Express x2 (uses PCIe x4 slot)

Power connector:    SATA power connector required for full power to all ports

Dimension:    3.7 x 3.7 x 0.7 inches / 95 x 95 x 19mm

Environmental:

Operating Temperature:    5 ℃ to +50℃

Operating Humidity:    20% to 80 % RH (no condensation)

Storage Temperature:    -20℃ to +60℃

Storage Humidity:    10% to 90% RH (no condensation)

System Requirements:

• PCI-Express x4, x8 or x16 slots
• Microsoft Windows  7 (drivers required, on CD or latest drivers online).
  Windows 8.x/10/11 or newer (native, no drivers required),
  Linux 3.2, 3.10, 3.12, 4.2 and 4.4 (native) or later
• USB 3.1 devices preferred to get maximum speed
• SATA power, not Low Profile
