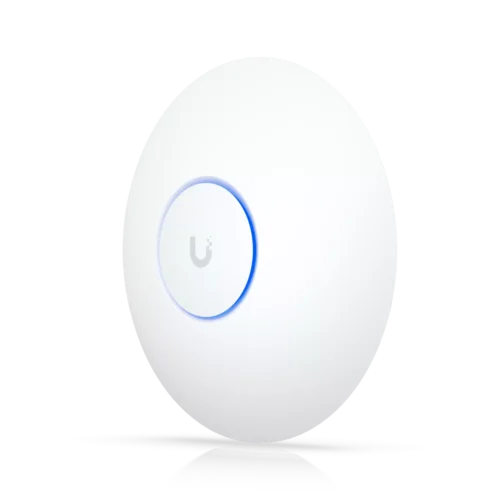

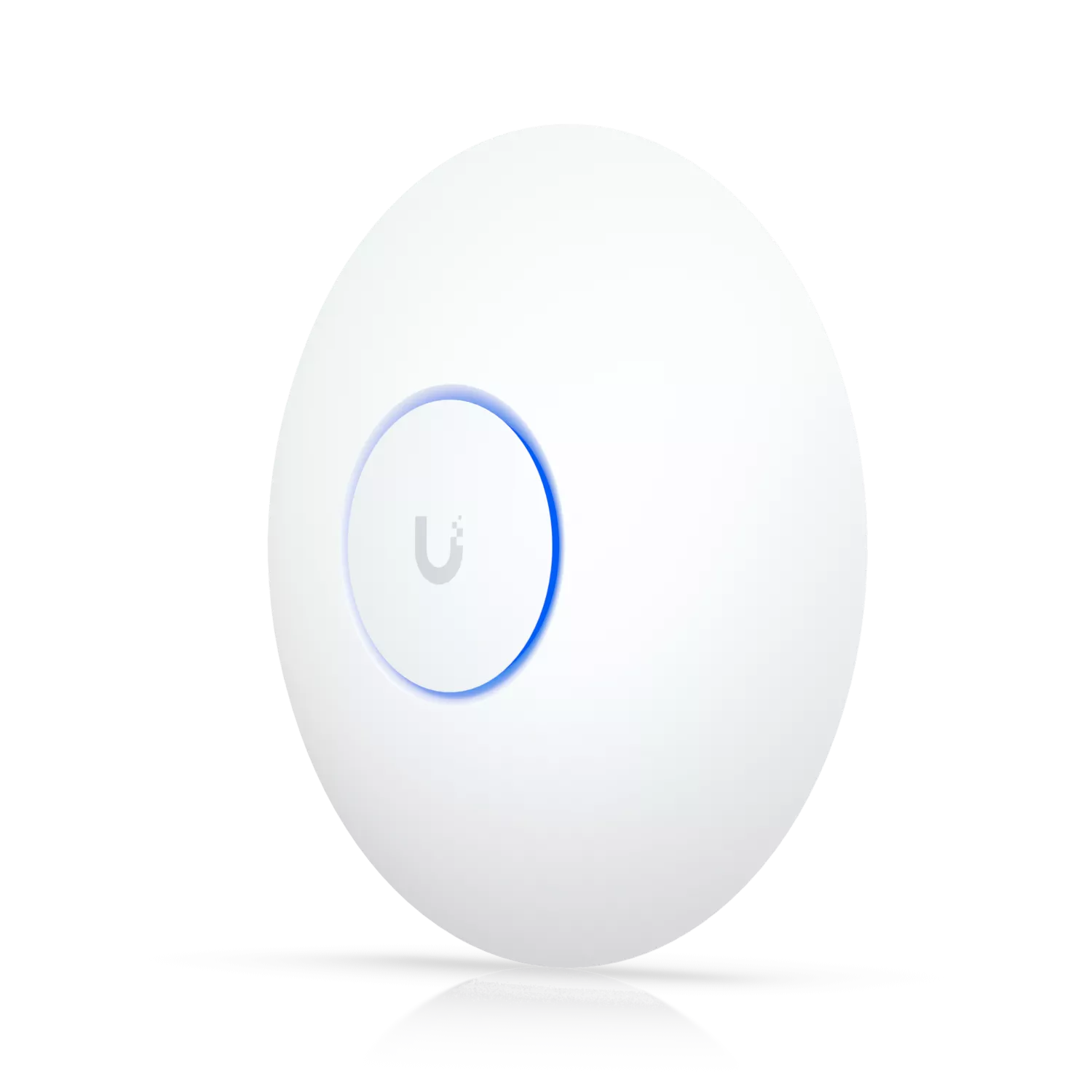

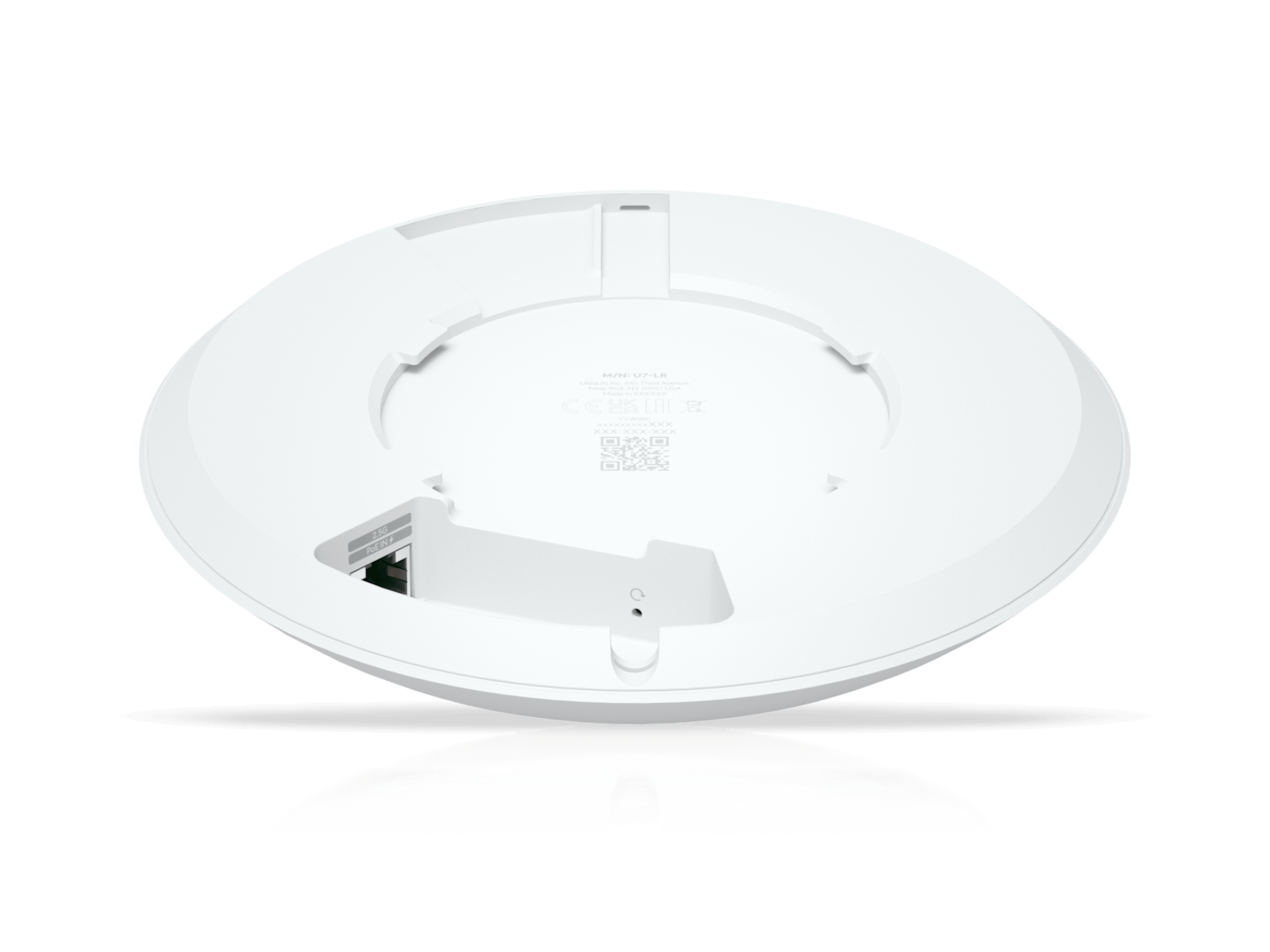

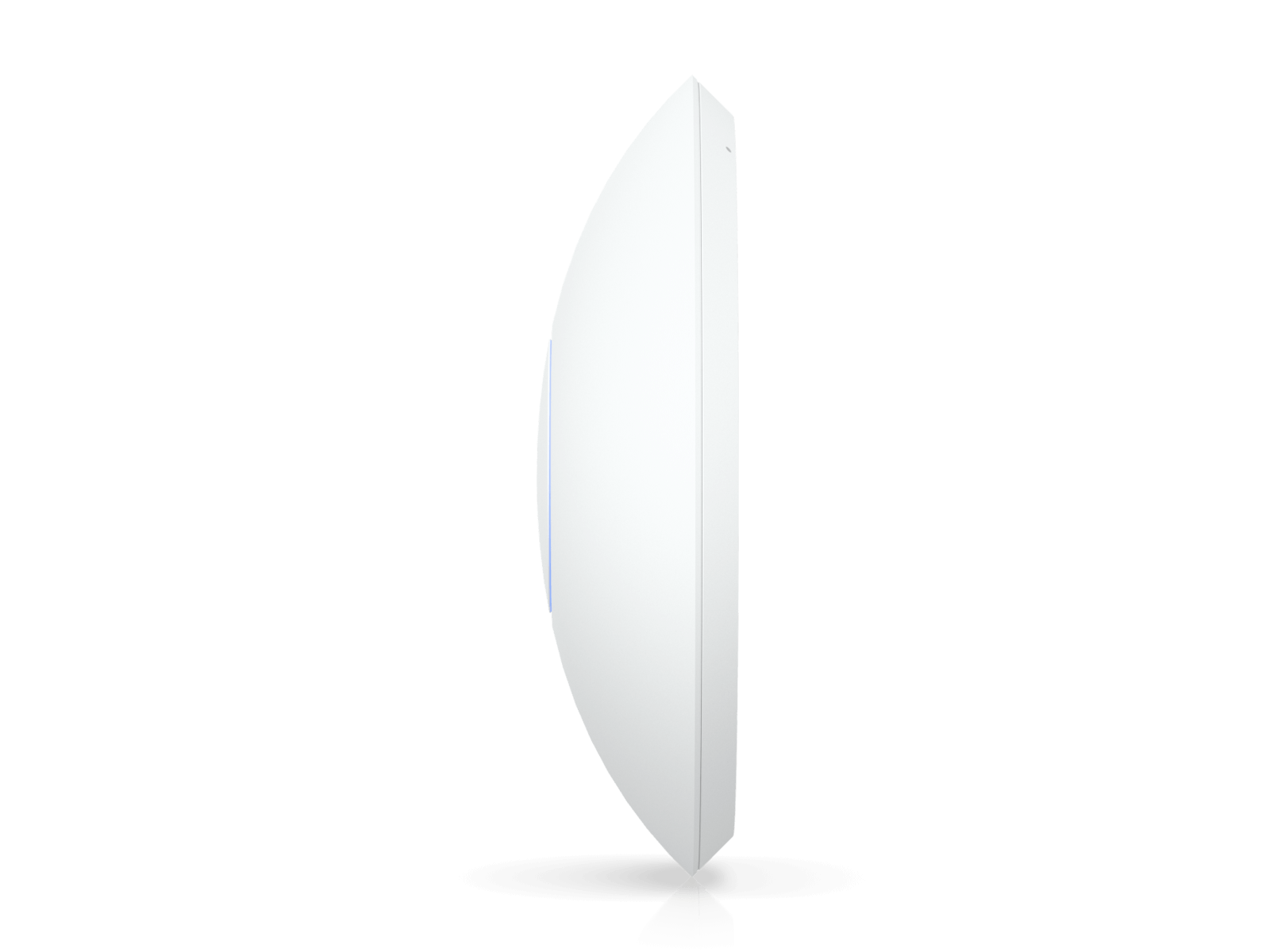

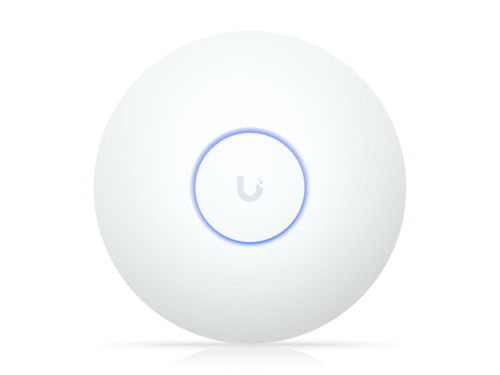

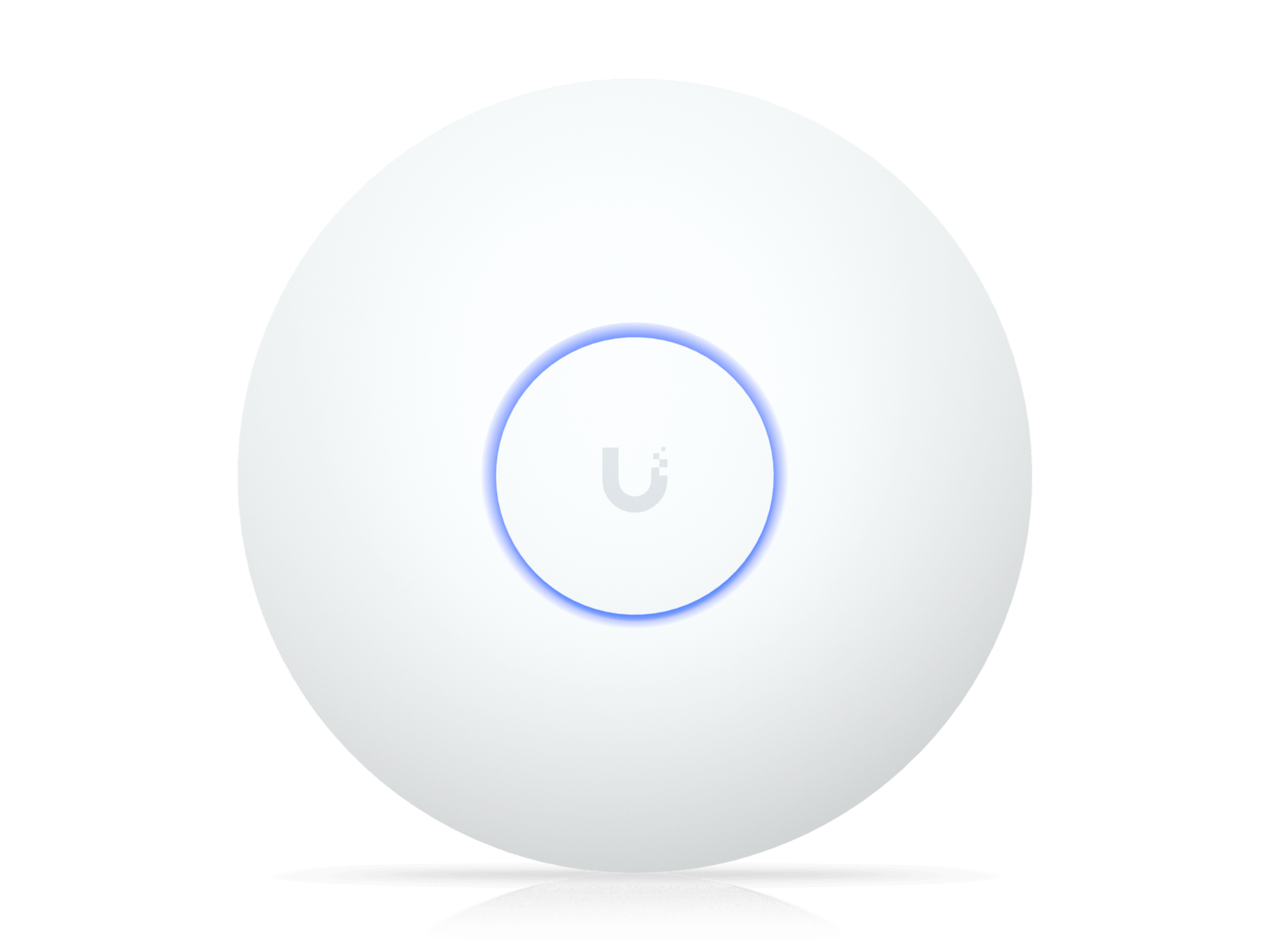

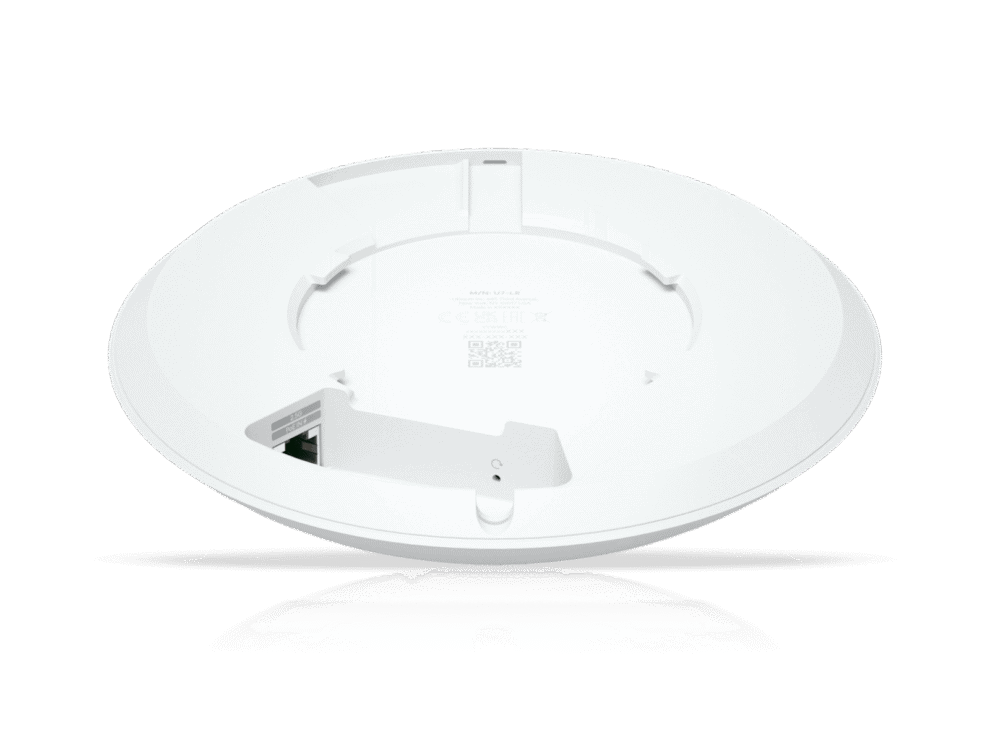

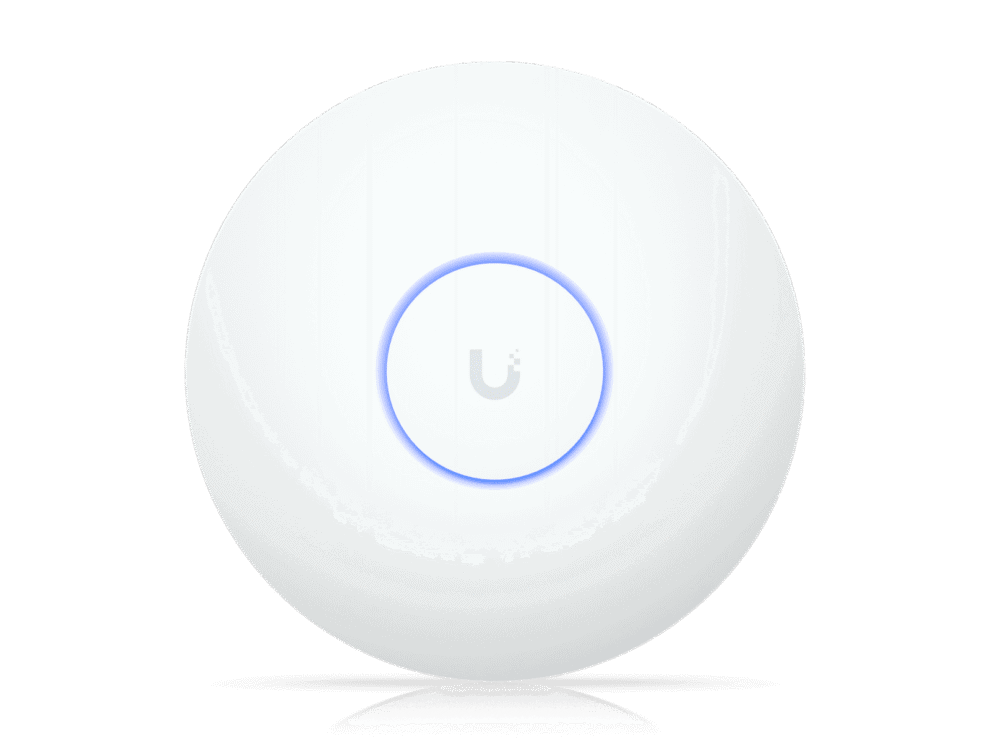

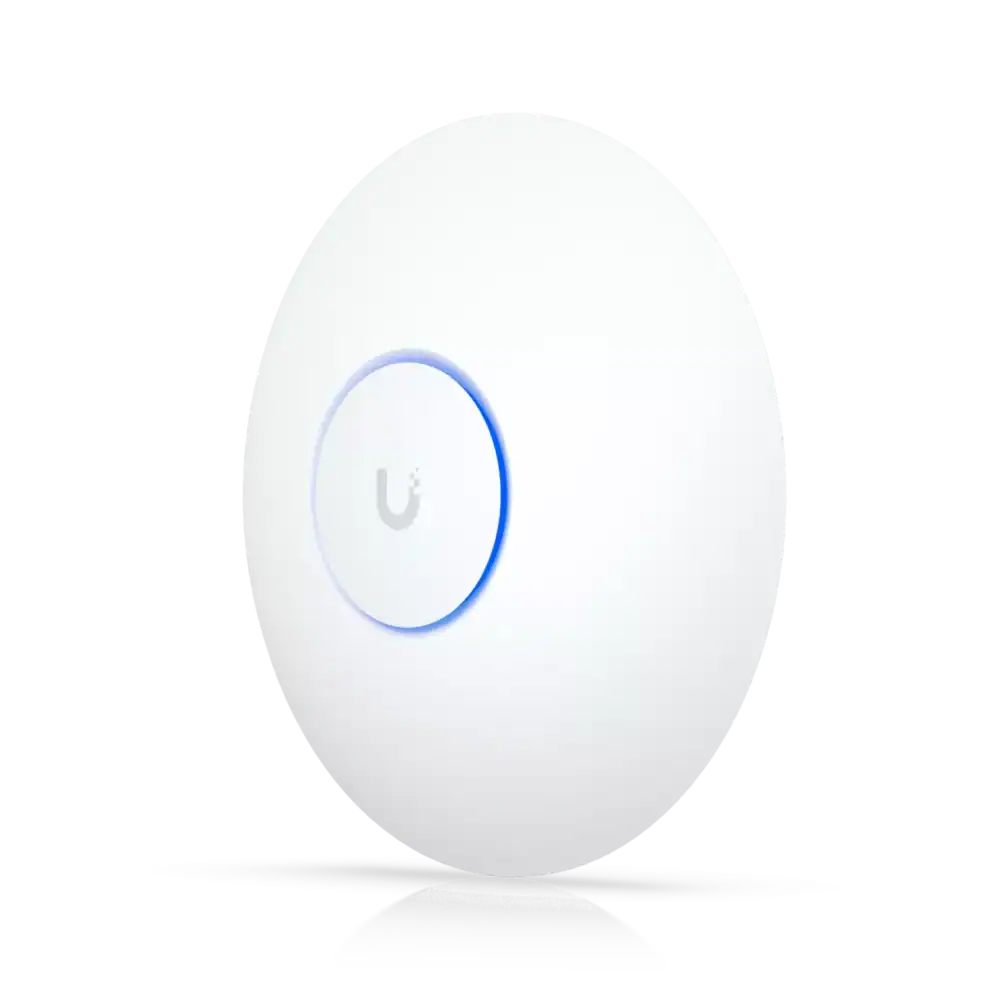

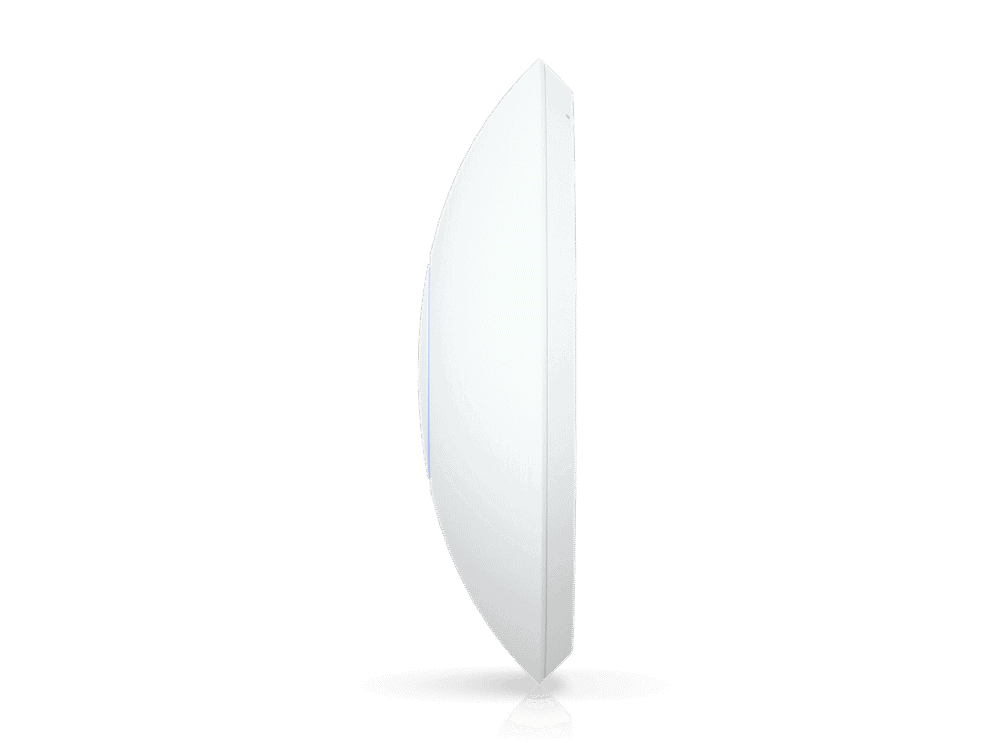

The Ubiquiti UniFi U7 Long-Range U7-LR is a high-performance Wi-Fi 7 access point designed to deliver extended coverage and enhanced capacity for enterprise and large-scale residential networks. Featuring 5 spatial streams, it supports 3×3 MU-MIMO on the 5 GHz band and 2×2 MU-MIMO on the 2.4 GHz band, achieving maximum data rates of 4.3 Gbps and 688 Mbps, respectively. With a coverage area of up to 160 m² (1,750 ft²) and support for over 300 concurrent clients, the U7-LR ensures robust and reliable connectivity. Equipped with a 2.5 GbE RJ45 uplink port, it facilitates high-speed wired connections, while Power over Ethernet (PoE) support simplifies installation. Advanced features such as band steering, fast roaming (802.11r), Wi-Fi scheduling, and guest network isolation enhance network efficiency and security.
| MIMO | 5 GHz – 3 x 3 (DL/UL MU-MIMO) |
| 2.4 GHz – 2 x 2 (DL/UL MU-MIMO) | |
| Max. Data Rate | 5 GHz – 4.3 Gbps (BW160) |
| 2.4 GHz – 688 Mbps (BW40) | |
| Antenna Gain | 5 GHz – 6 dBi |
| 2.4 GHz – 4 dBi | |
| Max. TX Power | 5 GHz – 27 dBm |
| 2.4 GHz – 26 dBm | |
| Supported Data Rates | 802.11be (WiFi 7) – 7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2/3, EHT 20/40/80/160) |
| 802.11ax (WiFi 6) – 7.3 Mbps to 3.6 Gbps (MCS0 – MCS11 NSS1/2/3, HE 20/40/80/160) | |
| 802.11ac (WiFi 5) – 6.5 Mbps to 2.6 Gbps (MCS0 – MCS9 NSS1/2/3, VHT 20/40/80/160) | |
| 802.11n – 6.5 Mbps to 450 Mbps (MCS0 – MCS23 , HT 20/40) |
